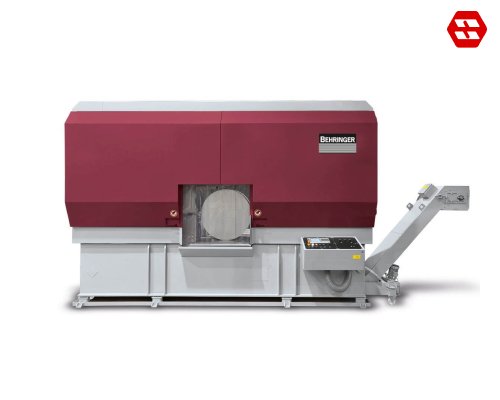

Production band saw HBM800-1201ALU

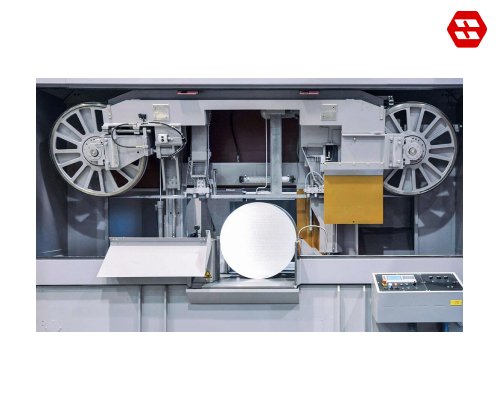

HBM high-performance aluminium sawing unit 3

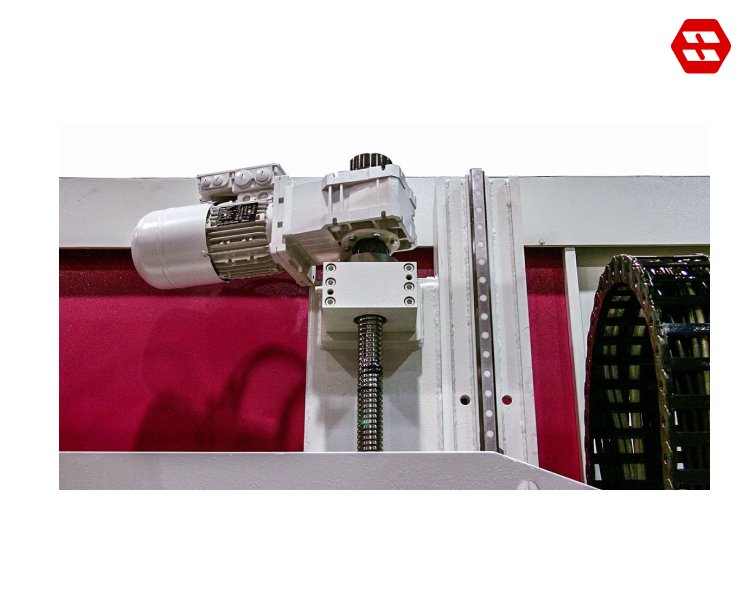

Servo feed system for short non-productive times 3

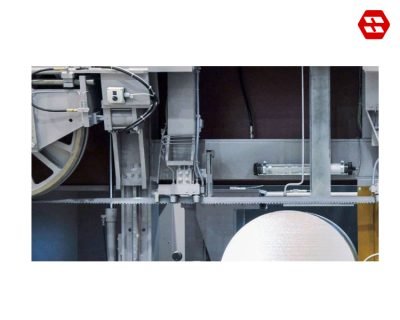

Roller band guides with integrated spray lubrication 3
  • Production band saw HBM800-1201ALU
  • HBM high-performance aluminium sawing unit 3
  • Servo feed system for short non-productive times 3
  • Roller band guides with integrated spray lubrication 3

Bandsaw Machine HBM800-1201ALU Performance Automatic BEHRINGER

Price range: Rp15 through Rp20

Dirancang khusus untuk memotong aluminium dan bahan non-besi lainnya dengan presisi dan efisiensi. Dilengkapi dengan fitur otomatisasi canggih, mesin ini memudahkan proses pemotongan, memastikan hasil yang konsisten dan berkualitas tinggi. Konstruksinya yang kokoh dan kemampuan khusus menjadikannya cocok untuk industri yang memerlukan pemotongan presisi pada aluminium dan logam non-besi.

10 people are viewing this product right now

🔥 3 items sold in last 3 hours

or
Save to wishlist
Save to compare
SKU: N/A
Categories: , ,
Estimated delivery:May 27, 2026 - May 29, 2026

HBM800-1201ALU Performance Automatic

Production band saw HBM800-1201ALU

HBM High-Performance Aluminium Sawing Unit

HBM high-performance aluminium sawing unit 3

Servo Feed System For Short Non-Productive Times

Servo feed system for short non-productive times 3

Roller Band Guides With Integrated Spray Lubrication

Roller band guides with integrated spray lubrication 3

Features of The Production Bandsaw HBM800-1201ALU

Technical Data Production Bandsaw HBM800-1201ALU

Cutting Range
Cutting range 90° round800 mm
Cutting range 90° flat1,200 x 800 mm
Smallest dimension to be sawn round50 mm
Smallest dimension to be sawn flat50 x 50 mm
Performance Characteristics
Feeding length single stroke600 mm
Drive power22 kW
Blade speed250 – 1,500 m/min
Saw blade dimensions10,220 x 41 x 1.3 mm
Rest piece length in automatic operation100 mm
Total power33 kW
Saw feedservo-feed via ball screw
Material feedball screw
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length2,900 mm
Width6,000 mm
Height3,000 mm
Weight7.300 kg
Material support height800 mm
