Bandsaw Machine Metal Cutting HBE560 BEHRINGER

Price range: Rp15 through Rp20

Mesin ini dirancang untuk pemotongan logam yang akurat dan efisien. Menampilkan konstruksi kokoh dan desain berperforma tinggi, mesin ini mampu menangani berbagai material logam dengan presisi. Fitur pemotongannya yang canggih memungkinkan pengoperasian yang lancar dan konsisten, sehingga cocok untuk industri. Solusi untuk lingkungan manufaktur yang bertujuan untuk mencapai pemotongan logam berkualitas tinggi dan dapat diandalkan.

19 people are viewing this product right now

🔥 6 items sold in last 3 hours

or
Save to wishlist
Save to compare
SKU: N/A
Categories: , ,
Estimated delivery:May 27, 2026 - May 29, 2026

Metal Cutting HBE560

Metal cutting bandsaw HBE560

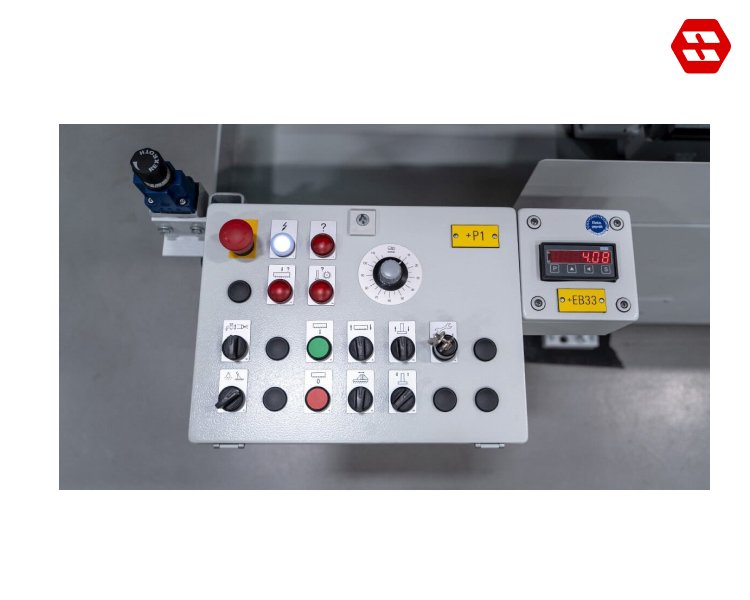

Control Panel

Control panel

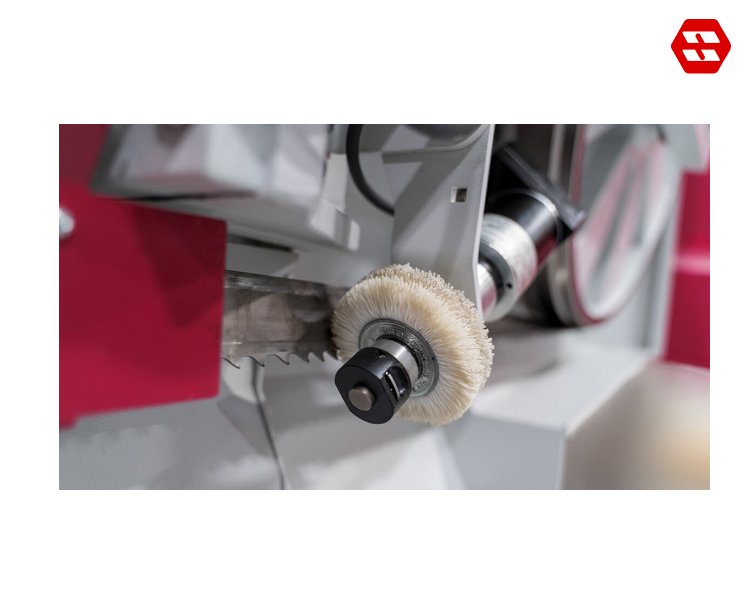

Electrically Driven Chip Brush

Electrically driven chip brush 10

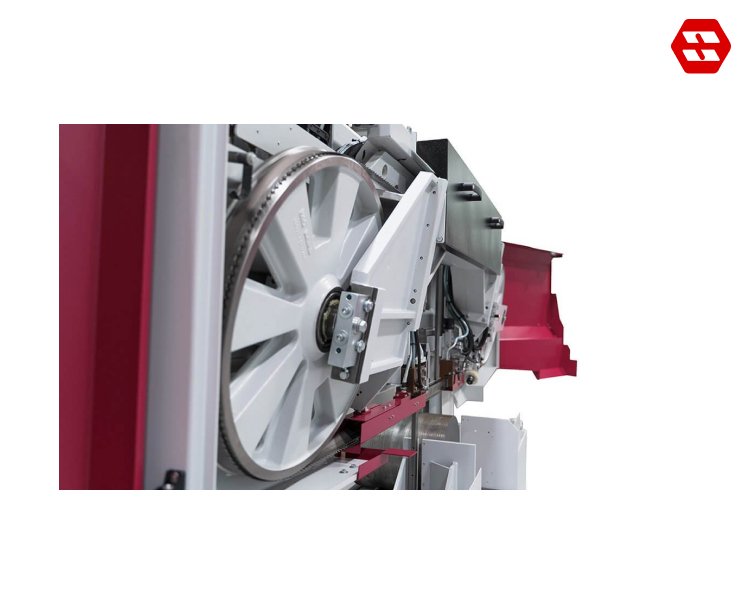

Inclined Band Wheels

Inclined band wheels

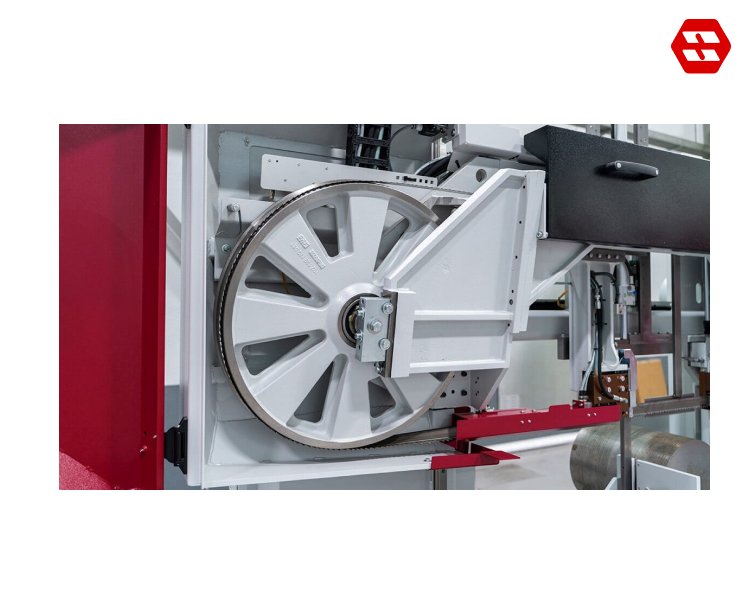

Cast iron Band Guiding Parts

Cast iron band guiding parts 8

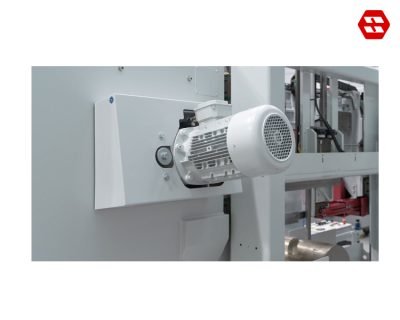

High Torque Band Saw Drive

High torque band saw drive

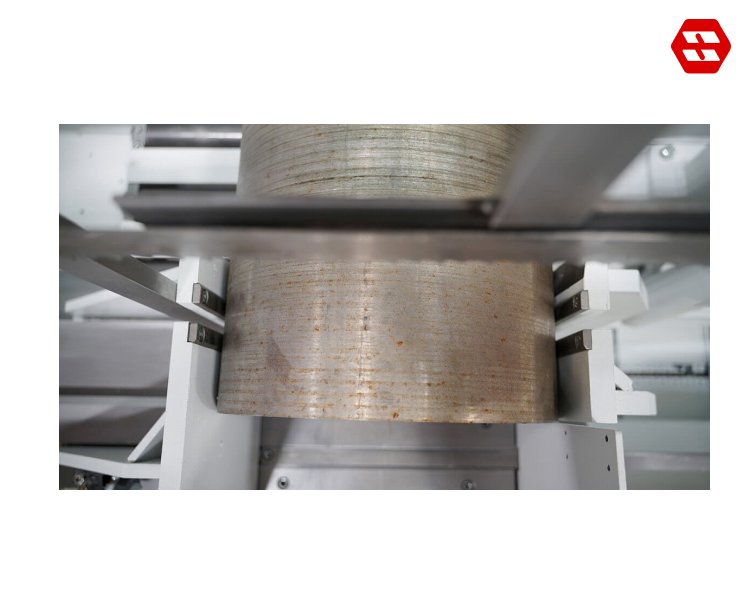

Double Clamping Vice

Double clamping vice

Features of The Metal Cutting Bandsaw HBE560

Technical Data Metal Cutting Bandsaw HBE560

Cutting Range
Cutting range 90° round560 mm
Cutting range 90° flat560 x 560 mm
Smallest dimension to be sawn round20 mm
Smallest dimension to be sawn flat20 x 8 mm
Performance Characteristics
Drive power5.5 kW
Blade speed10 – 110 m/min
Saw blade dimensions7,800 x 54 x 1.6 mm
Rest piece length40 mm
Total power12 kW
Dimensions and Weight
Length1,600 mm
Width3,750 mm
Height2,700 mm
Weight3,400 kg
Material support height800 mm
