3D Saw LPS-T 3D 1200
Maschinenumhausung

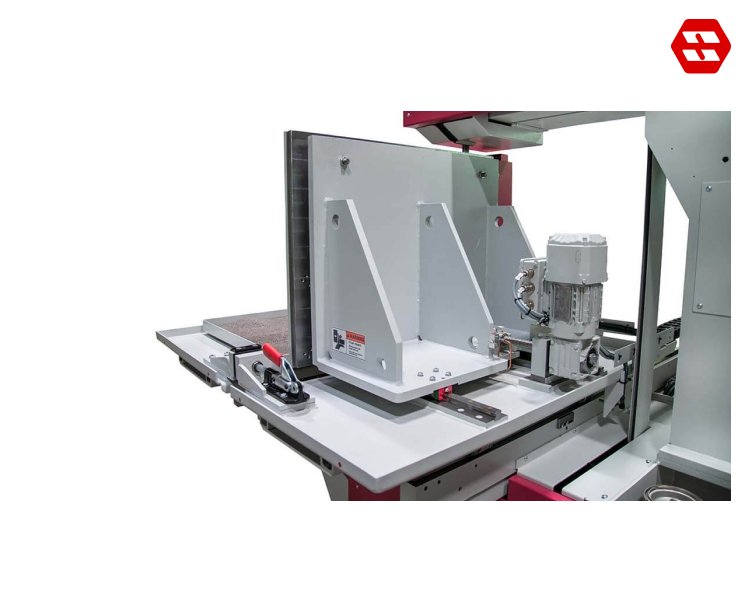

Vorrichtung Mit NC-Positionierung
Höchste Präzision

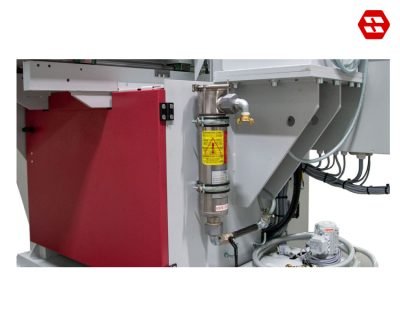

Kühlmittelfilter
Intuitive Touch Steuerung BehrCtrl10
Tischpositionierung über Kugelrollspindel
Features of The 3D Saw LPS-T 3D 1200
Technical Data 3D Saw LPS-T 3D 1200
| Cutting Range | |
| Maximum printing plate size flat W x H | 1,200 x 1,200 mm |
| Minimum printing plate size flat W x H | 300 x 300 mm |
| Maximum print height | 650 mm |
| Minimum plate thickness | 20 mm |
| Performance Characteristics | |
| Drive power | 4 kW |
| Blade speed | 17-120 m/min |
| Saw blade dimensions | 7,300 x 54 x 1.6 mm |
| Total power | 6 kW |
| Printing plate positioning | Servo motor via ball screw |
| Dimensions and Weight | |
| Length | 4,250 mm |
| Width | 3,450 mm |
| Height | 4,150 mm |
| Weight | 4,000 kg |
| Material support height | 1,200 mm |
