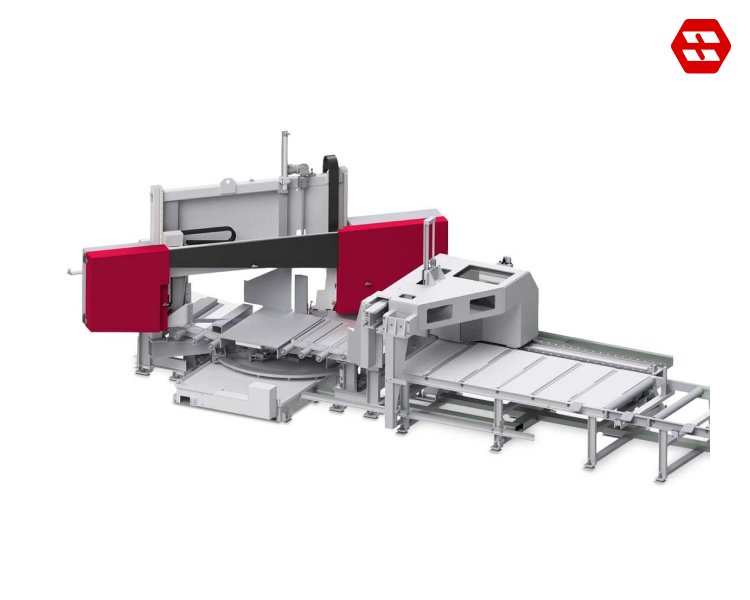

Automatic Mitre HBE520-926GA
Cast Iron Band Guiding Parts
Enclosed Material Table
Electrically Driven Chip Brush
Fast NC Mitre Angle Adjustment
Powerful PC control
Servo Feed System With Cutting Pressure Control
Features of The Metal Cutting Bandsaw HBE520-926GA
Technical Data Mitre Bandsaw HBE520-926GA
| Cutting Range | |
| Cutting range 90° round | 520 mm |
| Cutting range 90° flat | 820 x 520 mm |
| 75° Mitre left round / flat | 520 mm / 820 x 520 mm |
| 60° Mitre left round / flat | 520 mm / 820 x 520 mm |
| 45° Mitre left round / flat | 520 mm / 700 x 520 mm |
| 30° Mitre left round / flat | 430 mm / 430 x 520 mm |
| 75° Mitre right round / flat | 520 mm / 820 x 520 mm |
| 60° Mitre right round / flat | 520 mm / 820 x 520 mm |
| 45° Mitre right round / flat | 520 mm / 700 x 520 mm |
| Smallest dimension to be sawn round | 20 mm |
| Smallest dimension to be sawn flat | 20 x 20 mm |
| Performance Characteristics | |
| Feeding length single stroke | 3,000 mm |
| Drive power | 5.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 8,500 x 54 x 1.6 mm |
| Rest piece length in automatic operation | 150 mm |
| Minimum cut length | 55 mm |
| Total power | 11 kW |
| Saw feed | Servo feed via ball screw |
| Material feed | servo motor via gear rack |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 7.000 mm |
| Width | 4.700 mm |
| Height | 3.240 mm |
| Weight | 7.500 kg |
| Material support height | 800 mm |
