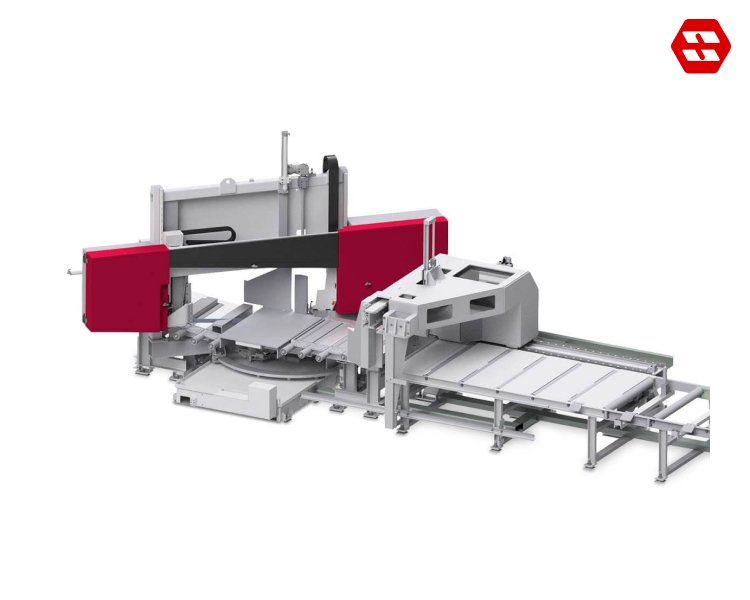

Automatic Mitre HBE610-1256GA

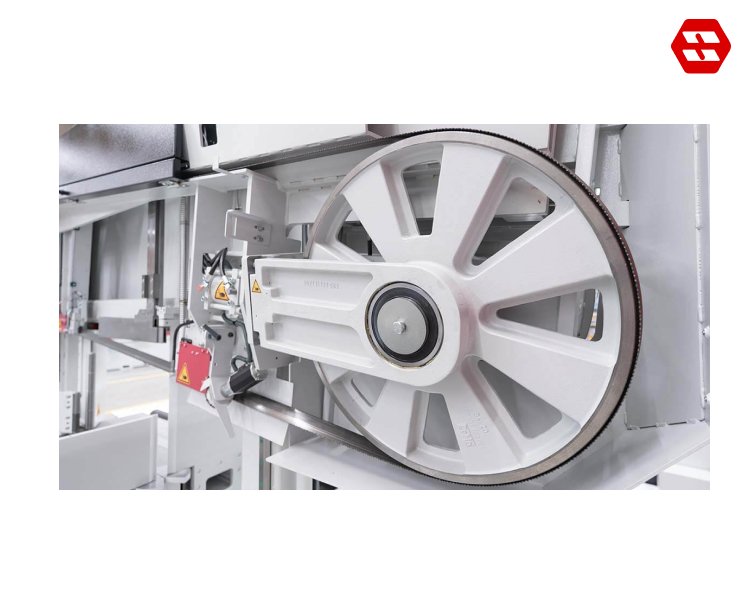

Cast Iron Band Guiding Parts

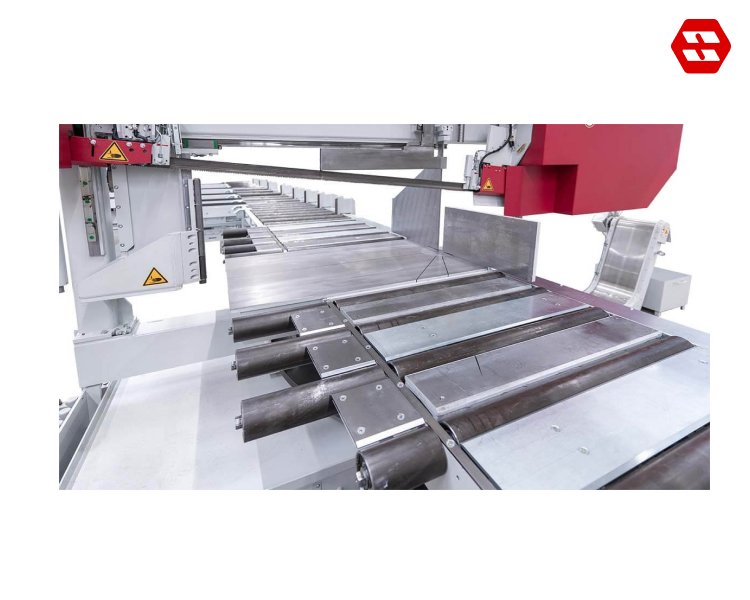

Enclosed Material Table

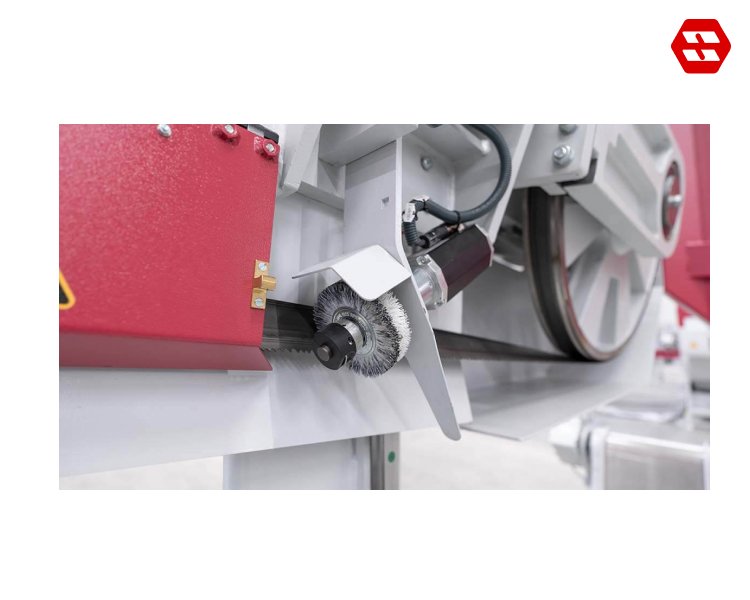

Electrically Driven Chip Brush

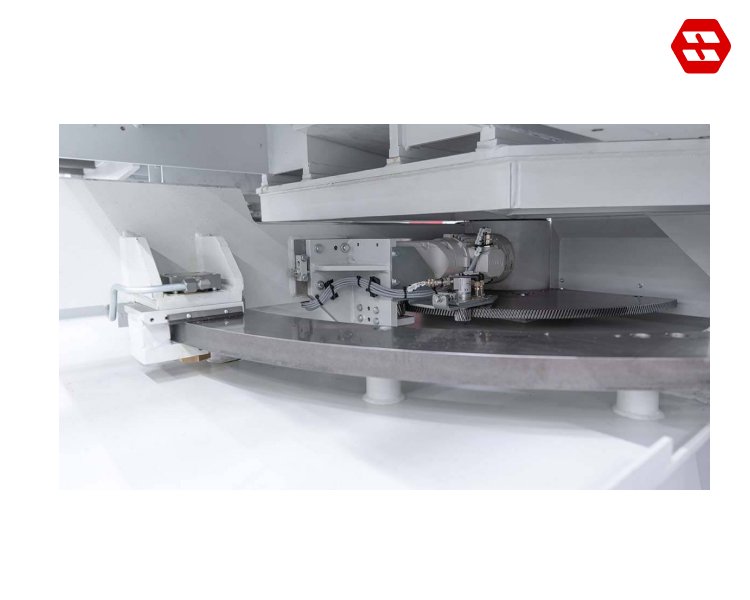

Fast NC Mitre Angle Adjustment

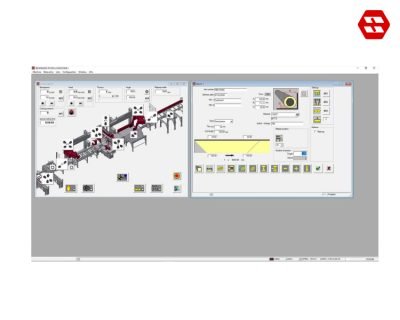

Powerful PC Control

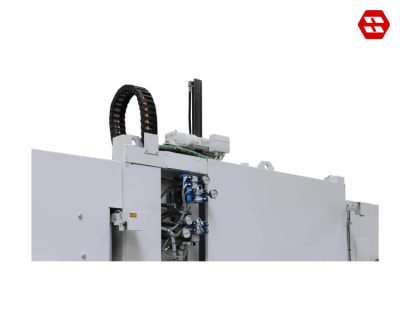

Servo Feed System With Cutting Pressure Control
Features of The Metal Cutting Bandsaw HBE610-1256GA
Technical Data Mitre Bandsaw HBE610-1256GA
| Cutting Range | |
| Cutting range 90° round | 610 mm |
| Cutting range 90° flat | 1.250 x 610 mm |
| 75° Mitre left round / flat | 610 mm / 1.200 x 610 mm |
| 60° Mitre left round / flat | 610 mm / 1.100 x 610 mm |
| 45° Mitre left round / flat | 610 mm / 880 x 610 mm |
| 30° Mitre left round / flat | 610 mm / 610 x 610 mm |
| 75° Mitre right round / flat | 610 mm / 1.200 x 610 mm |
| 60° Mitre right round / flat | 610 mm / 1.100 x 610 mm |
| 45° Mitre right round / flat | 610 mm / 880 x 610 mm |
| Smallest dimension to be sawn round | 30 mm |
| Smallest dimension to be sawn flat | 30 x 30 mm |
| Performance Characteristics | |
| Feeding length single stroke | 3,000 mm |
| Drive power | 7.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 10.000 x 54 (67) x 1,6 mm |
| Rest piece length in automatic operation | 280 mm |
| Minimum cut length | 25 mm |
| Total power | 16 kW |
| Saw feed | Servo feed via ball screw |
| Material feed | servo motor via gear rack |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 7.000 mm |
| Width | 4.700 mm |
| Height | 3.240 mm |
| Weight | 7.500 kg |
| Material support height | 800 mm |
