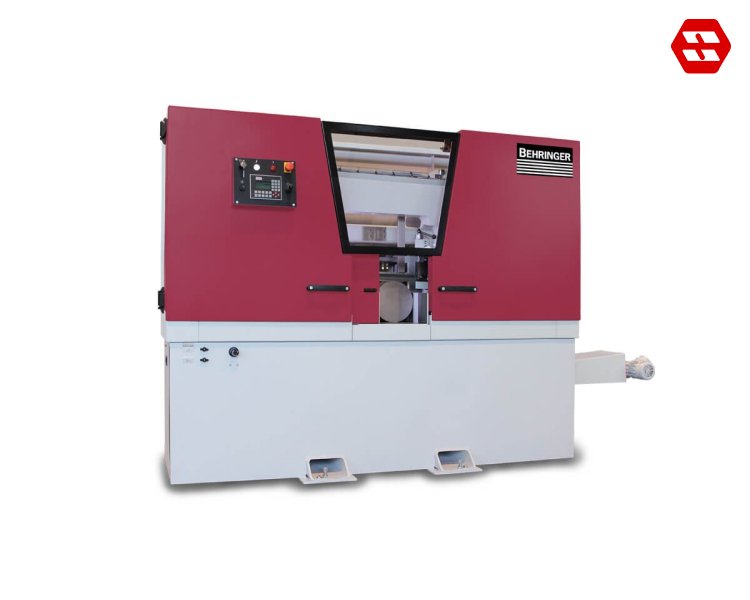

HBE261A Dynamic
Intuitive BehrCtrl10 Touch Control

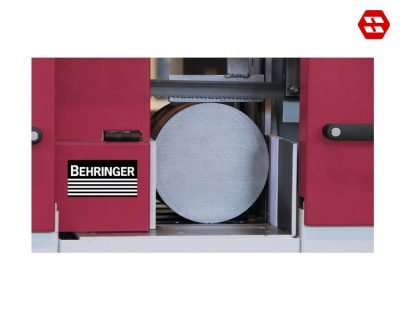

Cast Iron Band Guiding Parts
Electrically Driven Chip Brush
Technical Data Horizontal Bandsaw HBE261A Dynamic
| Cutting Range | |
| Cutting range 90° round | 260 mm |
| Cutting range 90° flat | 300 x 260 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 8 mm |
| Performance Characteristics | |
| Feeding length single stroke | 650 mm |
| Drive power | 2.6 kW |
| Blade speed | 15 – 110 m/min |
| Saw blade dimensions | 4,440 x 34 x 1.1 mm |
| Rest piece length in automatic operation | 70 mm |
| Total power | 3.7 kW |
| Saw feed | hydraulic |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and weight | |
| Length | 1,850 mm |
| Width | 2,300 mm |
| Height | 1,820 mm |
| Weight | 1,850 kg |
| Material support height | 800 mm |
