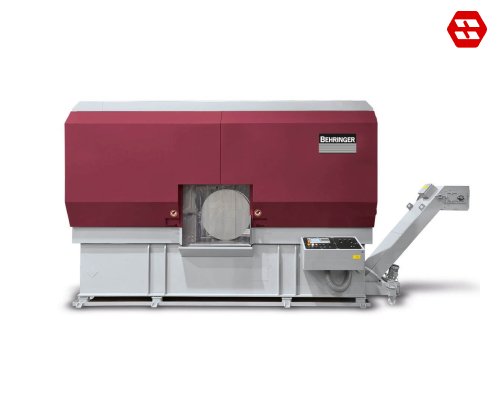

HBM800A Performance Automatic

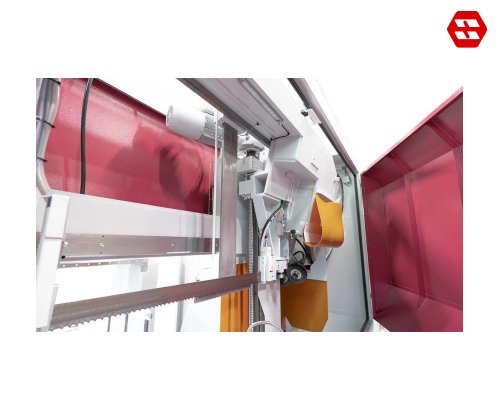

High-Performance Sawing Unit With BEHRINGER Speed-Cutting Technology

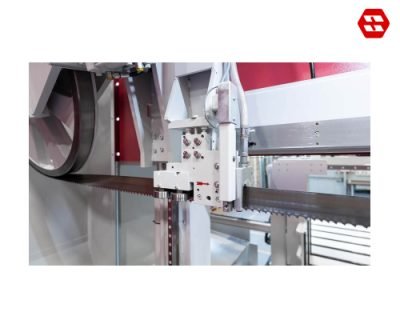

HBM Band Guide With High-Performance Cooling

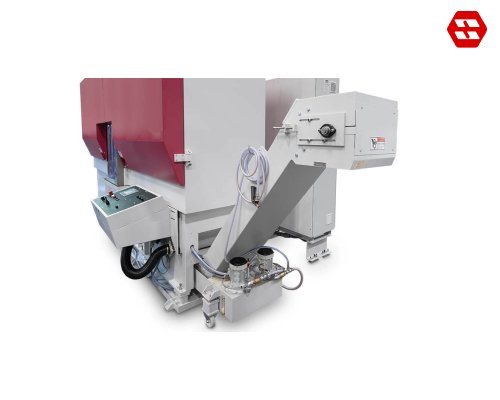

Chip Conveyor With Integrated Coolant Tank
Features of The Production Bandsaw HBM800A
Technical Data Production Bandsaw HBM800A
| Cutting Range | |
| Cutting range 90° round | 800 mm |
| Cutting range 90° flat | 800 x 800 mm |
| Smallest dimension to be sawn round | 50 mm |
| Smallest dimension to be sawn flat | 50 x 50 mm |
| Performance Characteristics | |
| Feeding length single stroke | 600 mm |
| Drive power | 11 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 9,400 x 67 x 1.6 mm |
| Rest piece length in automatic operation | 70 mm |
| Total power | 19 kW |

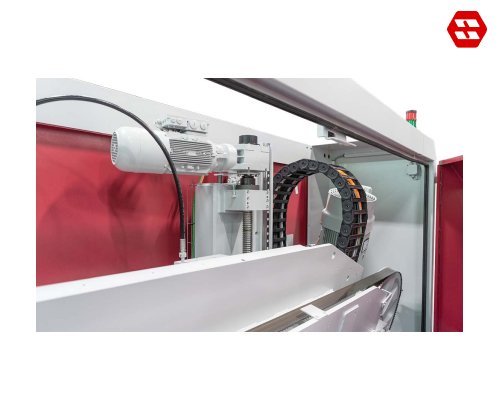

| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |

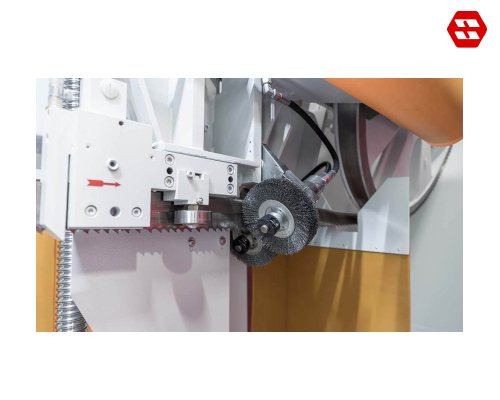

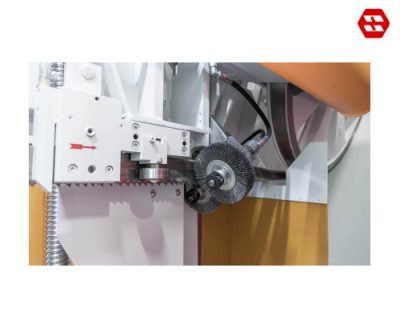

| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,900 mm |
| Width | 5,150 mm |
| Height | 3,000 mm |
| Weight | 7.800 kg |
| Material support height | 800 mm |
