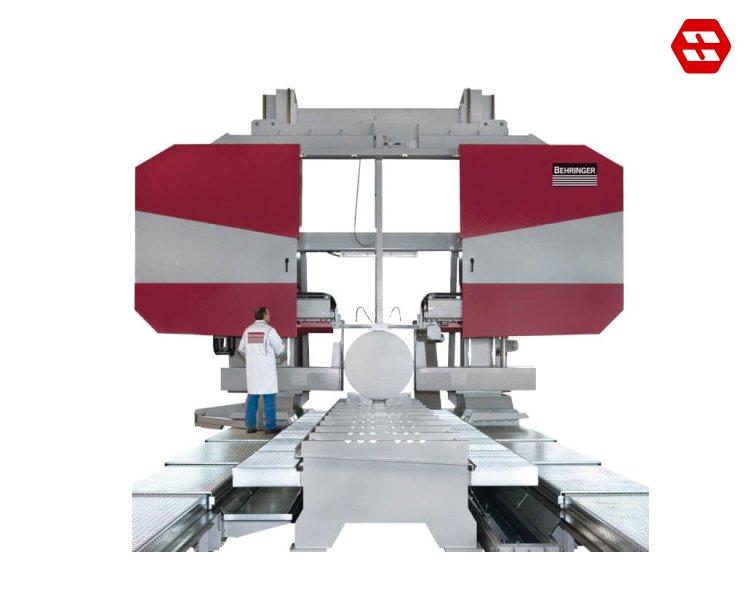

Gantry Saw HBP2100 GANTRY

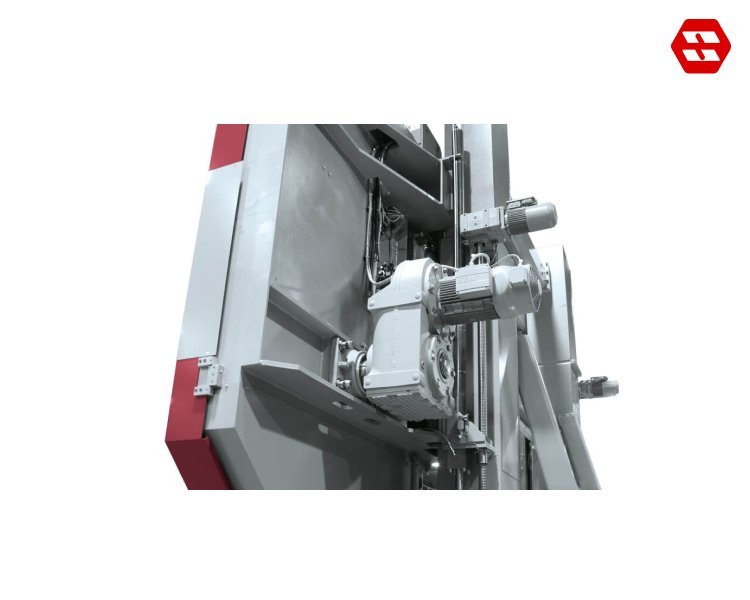

Servo Feed System

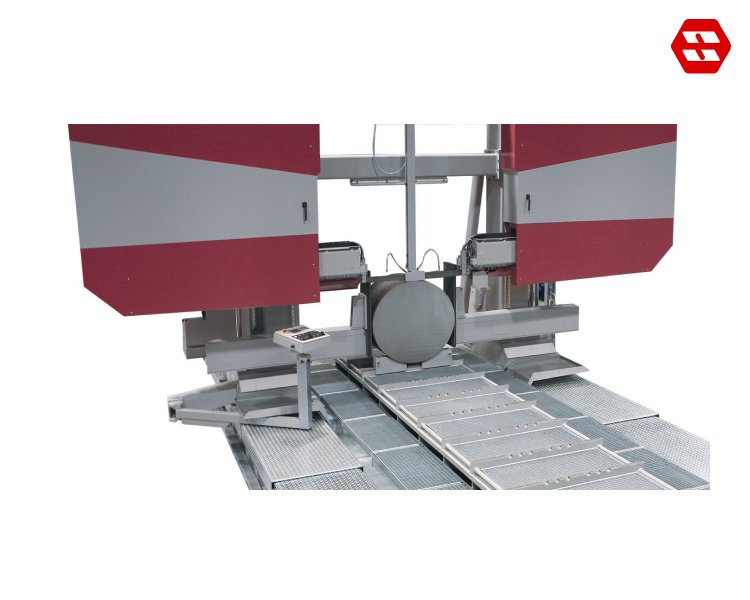

Centric Material Clamping

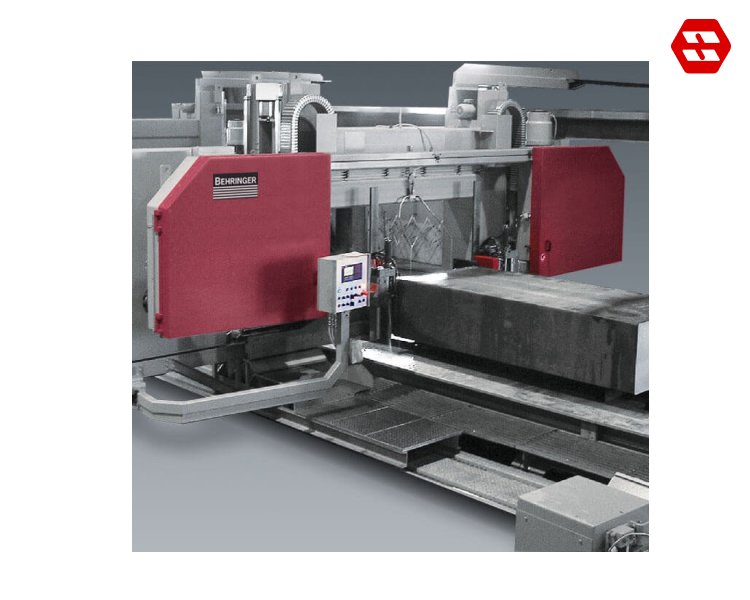

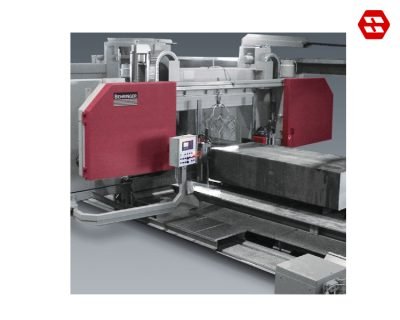

Gantry With Two or More Saw Units

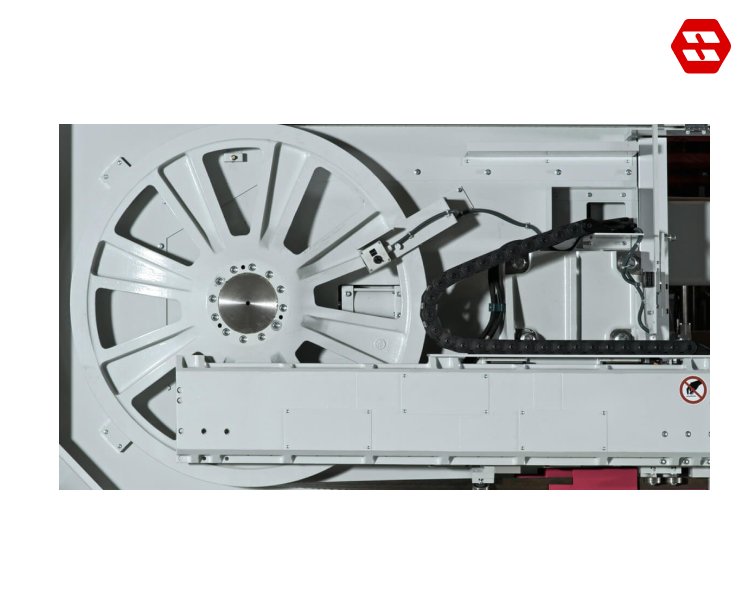

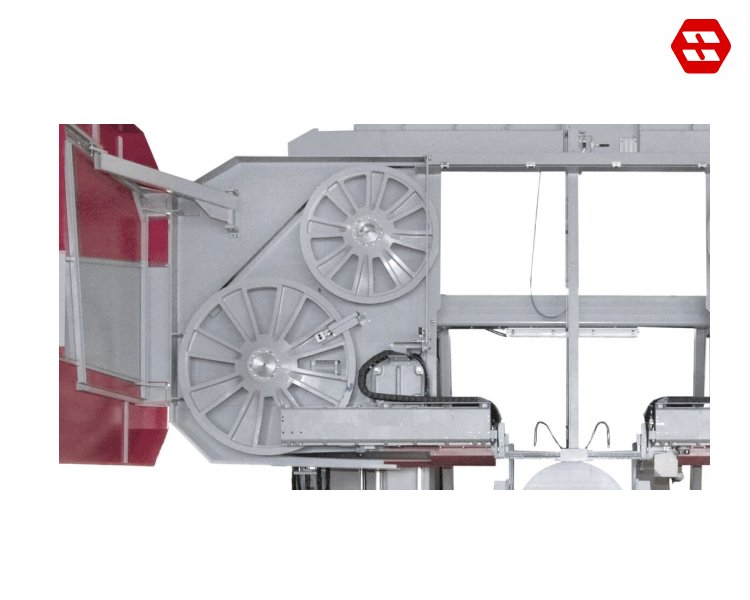

Cast Iron Band Guiding Parts

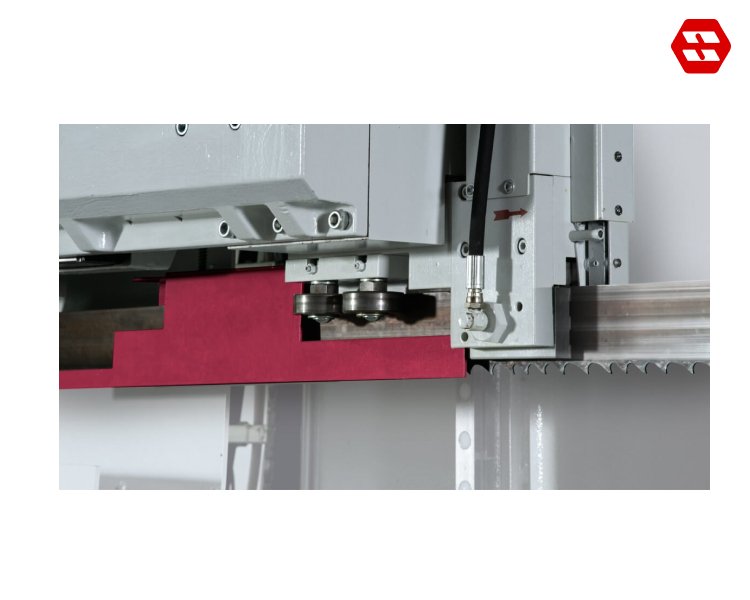

Carbide Blade Guides

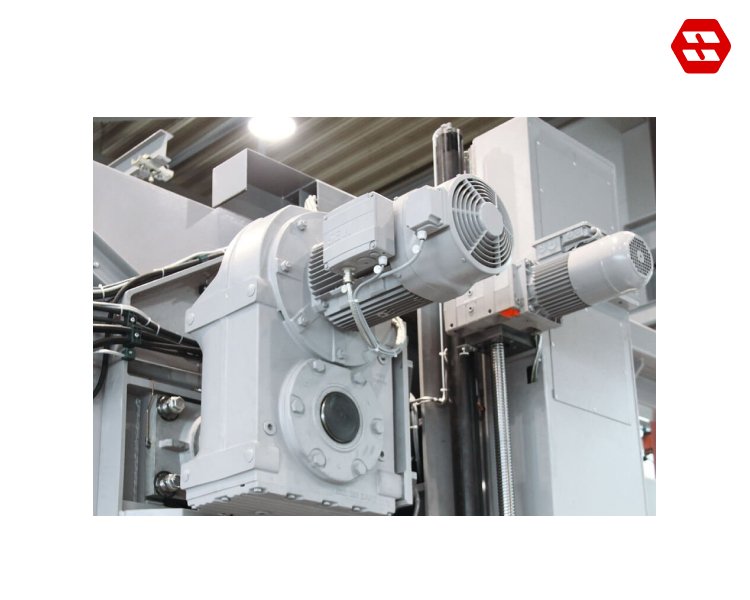

Powerful Saw Drive

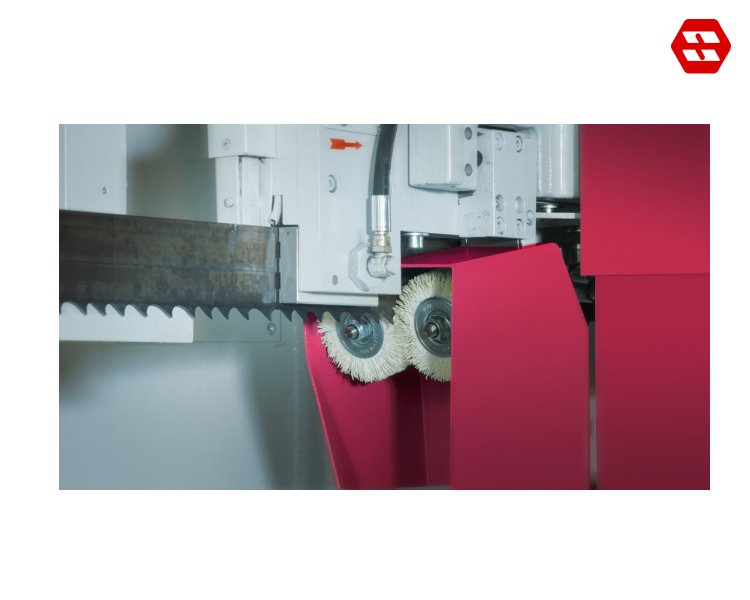

Duplex Chip Brushes
Features of The Gantry Saw HBP2100 GANTRY
Technical Data Gantry Saw HBP2100 GANTRY
| Cutting Range | |
| Cutting range 90° round | 2,100 mm |
| Cutting range 90° flat | 2,100 x 2,100 mm |
| Smallest dimension to be sawn round | 500 mm |
| Smallest dimension to be sawn flat | 500 x 50 mm |
| Performance Characteristics | |
| Drive power | 15 kW |
| Blade speed | 8 – 84 m/min |
| Saw blade dimensions | 17,000 x 80 x 1.6 mm |
| Total power | 30 kW |
| Table size L x W | 6,500 x 1,800 mm |
| Travel way of the portal (horizontal) | 5,000 mm |
| ravel way of the portal (vertical) | 2,150 mm |
| Dimensions and Weight | |
| Length | 11,000 mm |
| Width | 8,400 mm |
| Height | 6,000 mm |
| Weight | 35,000 kg |
