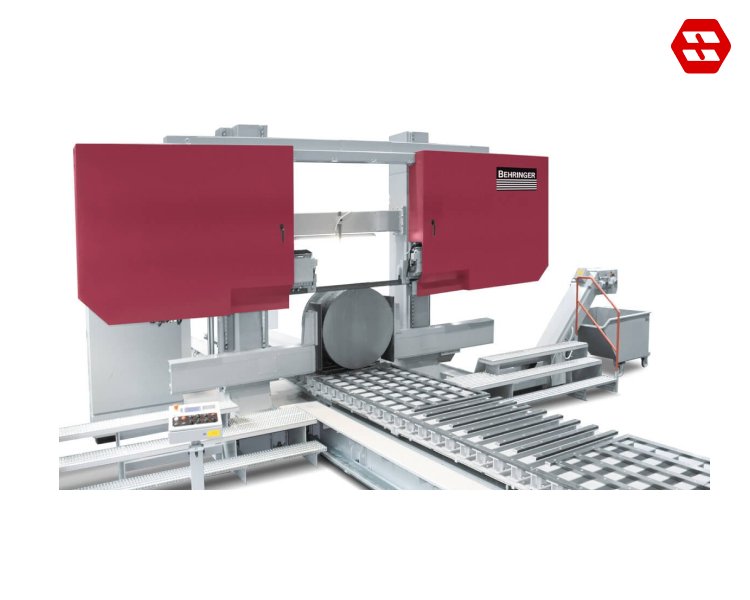

Table Bandsaw HBP1500T

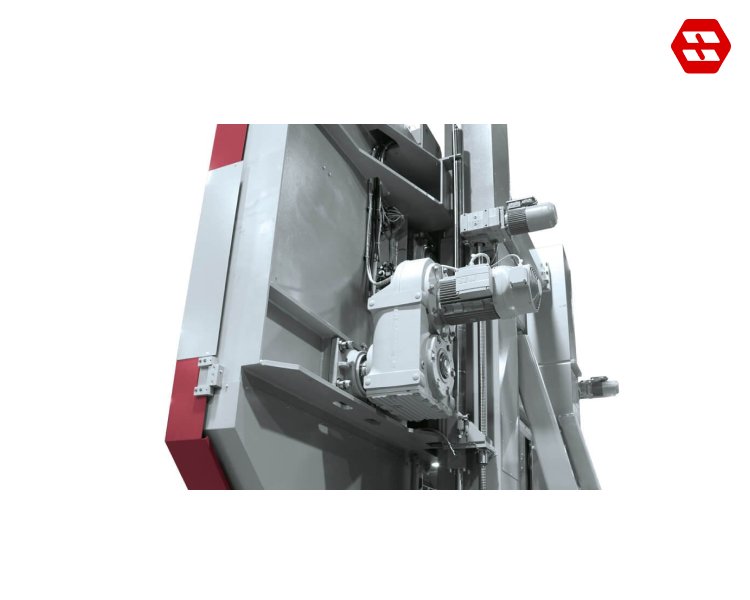

Servo Feed System

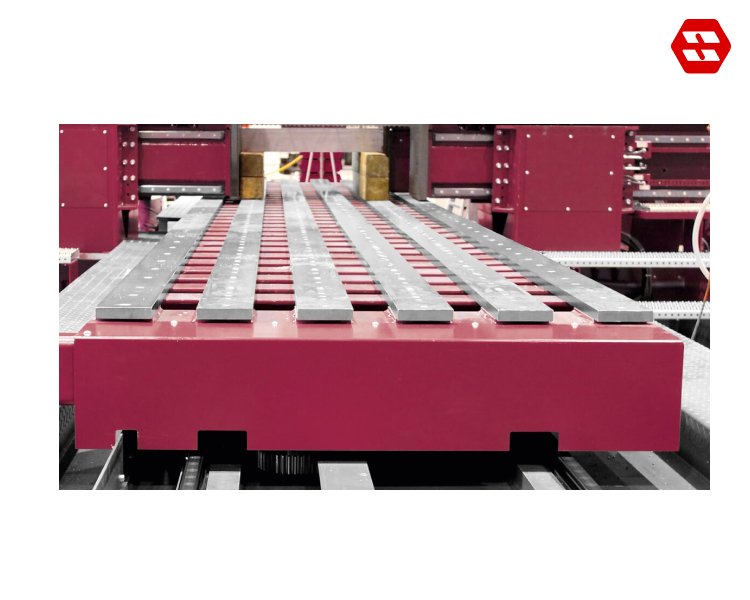

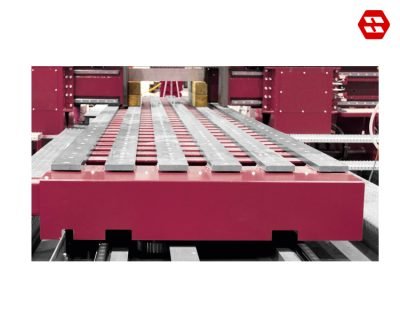

Solid Material Support Table

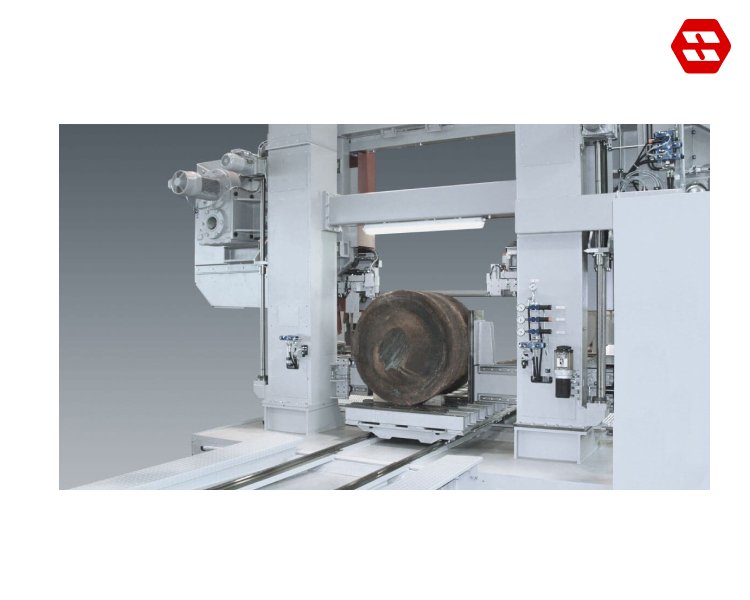

Optimum Accessibility For Maintenance

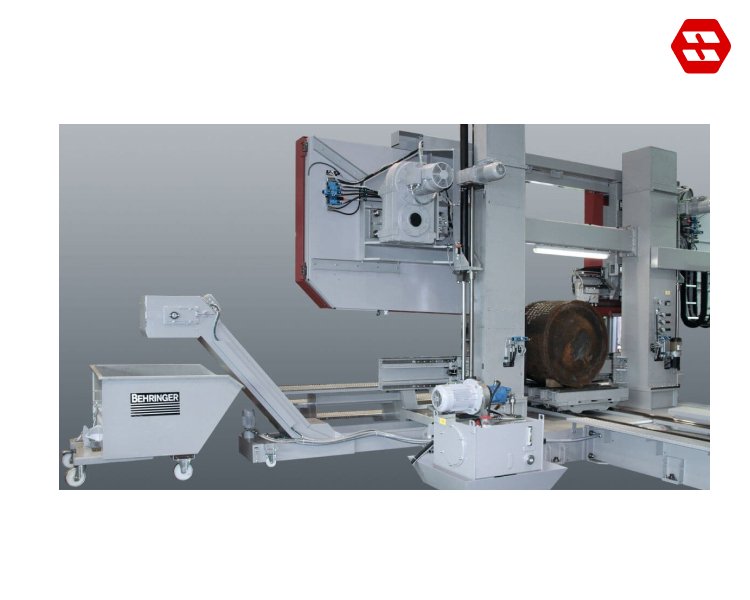

Chip Conveyor With Integrated Coolant Tank

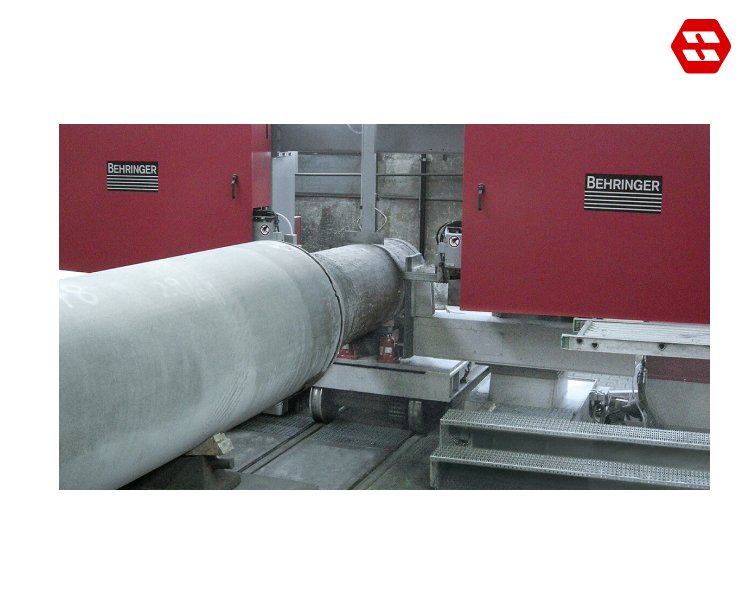

Large Bandsaw With Split Machine Base For Trolley Application

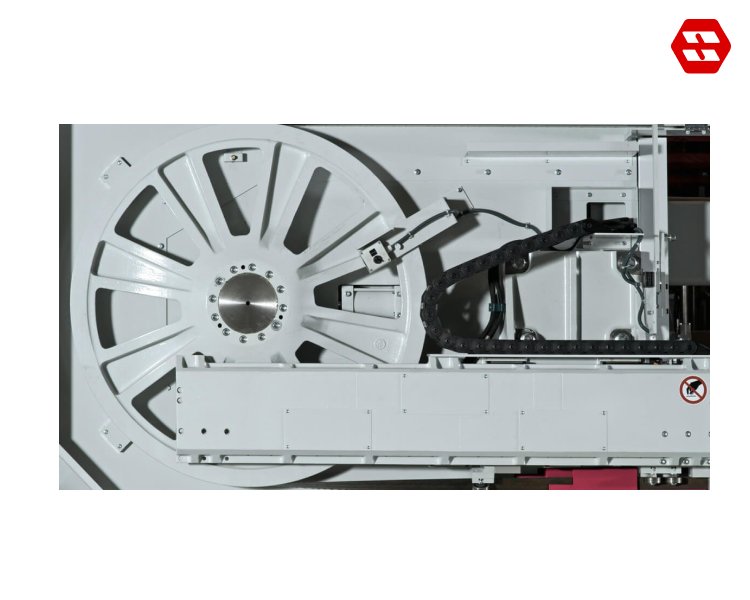

Cast Iron Band Guiding Parts

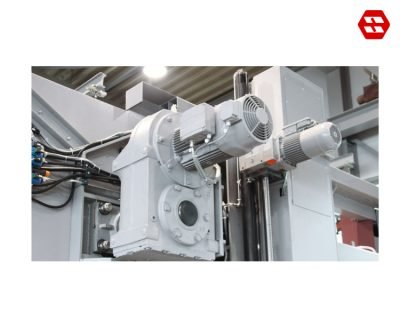

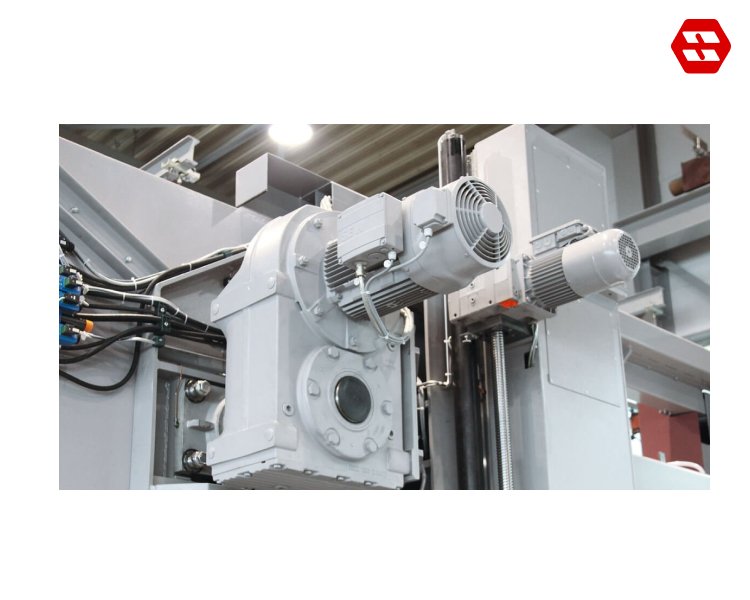

Powerful Saw Drive
Features of The Table Bandsaw HBP1500T
Technical Data Table Bandsaw HBP1500T
| Cutting Range | |
| Cutting range 90° round | 1,500 mm |
| Cutting range 90° flat | 1,500 x 1,500 mm |
| Smallest dimension to be sawn round | 400 mm |
| Smallest dimension to be sawn flat | 400 x 200 mm |
| Performance Characteristics | |
| Drive power | 15 kW |
| Blade speed | 8 – 84 m/min |
| Saw blade dimensions | 14,830 x 80 x 1.6 mm |
| Total power | 30 kW |
| Table size L x W | 3,000 x 1,200 mm |
| Maximum table load | 30,000 kg |
| Dimensions and Weight | |
| Length | 6,000 mm |
| Width | 7,800 mm |
| Height | 4,500 mm |
| Weight | 16,000 kg |
| Material support height | 700 mm |
