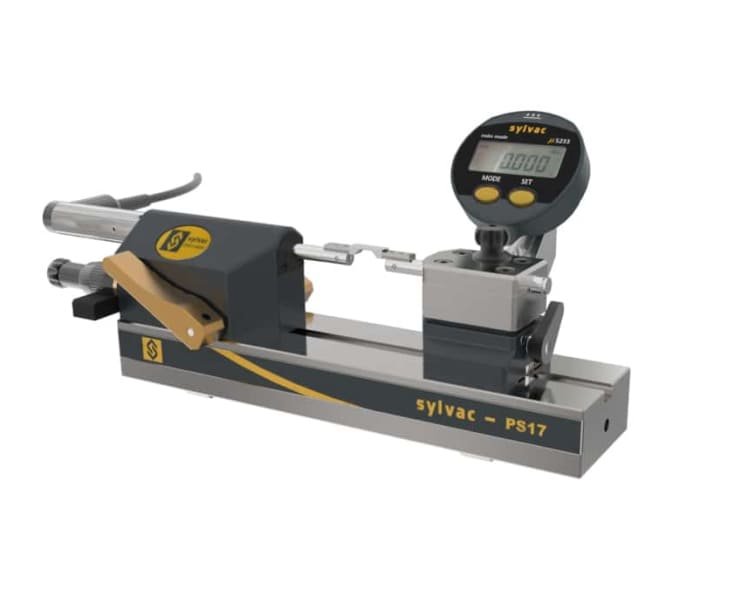

Bench Table PS17 Entre Portée Sylvac
Meet the Bench Table PS17 Entre Portée by Sylvac, a compact yet powerful horizontal measuring bench with an adjustable tailstock and micrometer screw for precise pre-positioning.
Features
Our small horizontal measuring bench offers flexible use with an adjustable tailstock (X and Y axis). It features a precise micrometer screw for pre-positioning and includes carbide anvils.
Crafted from cast iron, our bench excels in tough environments. Effortless axis movement is achieved through two ergonomic levers.
Our bench can be equipped with either a digital indicator or a Sylvac measuring probe. An extensive range of measuring anvils and support tables.
Our bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle, ensuring consistent and reliable results.
Overview
| 908-1244 | |
| EAN | 7640125023213 |
| Type | VS |
| Measuring system | at choice ¹ |
| Tailstock adjustable in Z +1.75 mm | ⬤ |
| Measurement capacity C (mm) | 0 – 37 |
| Measurement scale (mm) | 0 – 10 |
| Measurement force (N) | 1 |
| Working temperature (storage) (°C) | 5 – 40 (-10 – 60) |
| Weight (kg) | 1.4 |
| Cary Compatibility | ⬤ |
| Micrometer screw | ⬤ |
