Engineered for precision and durability, the Baincut UM supports a wide variety of metallographic cutting applications. The spacious cutting chamber accommodates different fixtures, while its 3-axis movement allows accurate positioning and versatile cuts. Enhanced with a lockable Z-axis wheel, coolant circulation, washing jet, and door safety interlock, it ensures consistent performance and operator safety during intensive use.

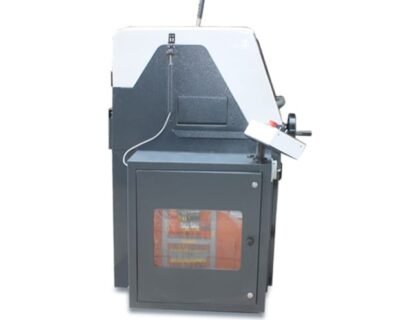

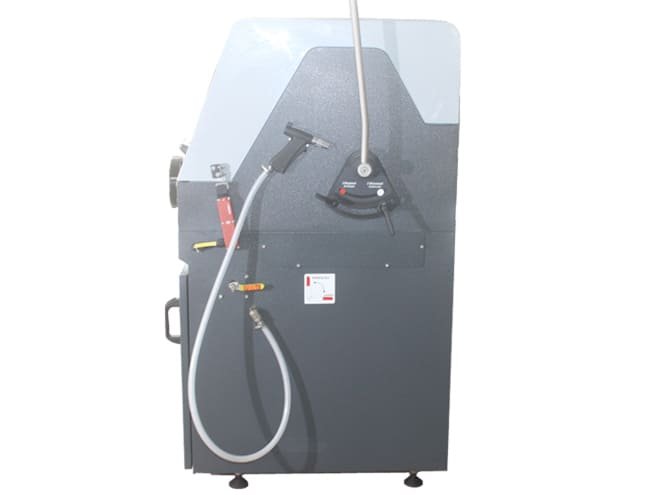

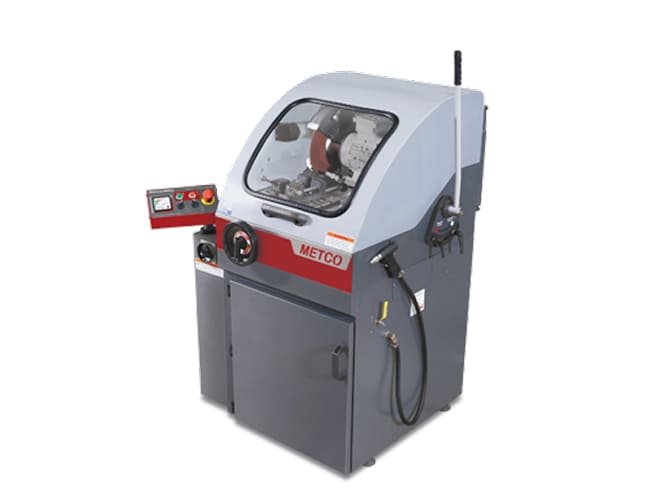

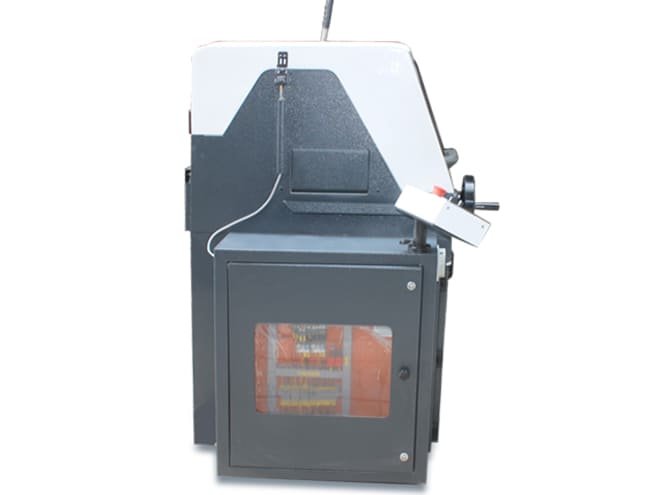

Chennai Metco Cold Cutting Baincut UM
The Baincut UM is a robust, general-purpose cutter for metallography labs and industrial QC. Its 5 HP motor, 12″ cutting wheel, and sturdy table provide the power and stability to cut through medium-sized samples like gears and shafts. Safety and convenience are built in through features like coolant systems, optional magnetic separators, auto-wash, phase monitoring, and brake motor technology for instant stopping.
Features
Overview
| Specification | Detail |
|---|---|
| Product Code | CMU002 |
| Cutting Capacity | Up to 80 mm dia |
| Motor Power | 5 HP, 3-phase motor |
| Cut-off Wheel Diameter | 12″ (300 mm) |
| Spindle Speed | 2800 rpm |
| Table Size | 260 × 260 mm with 10 mm T-slot |
| Machine Size (L×D×H) | 1100 × 1300 × 1640 mm |
| Movements | 3-axis (X, Y, Z); Y = longitudinal, Z = arm lowering, X = side movement |
| Safety Features | Door limit switch, door safety interlock, brake motor system, LOTO switch, phase monitoring |
| Convenience Features | Lockable Z-axis wheel, washing jet, coolant circulation, coolant spillage tray |
| Optional Accessories | Magnetic separator, auto wash, twin cutting, coolant tray extensions |
