Chennai Metco Low Speed Saw Baincut - LSS

Chennai Metco Low Speed Saw Baincut – LSS

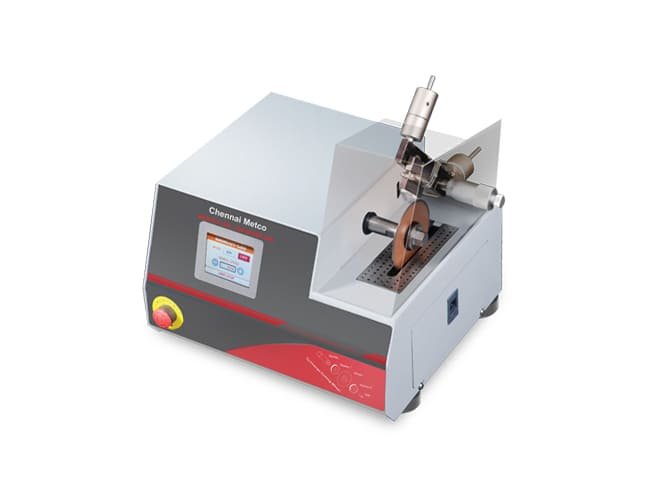

The Chennai Metco Low Speed Saw (Baincut-LSS) is a precision, bench-top sectioning saw ideal for cutting small specimens from softer materials like plastics, ceramics, fibres and metals. It features variable speed up to 600 RPM, adjustable cross-feed, and coolant tray, helping to minimize heat damage and deliver clean, accurate cuts.

43 people are viewing this product right now

🔥 7 items sold in last 3 hours

Category: Sectioning

Brand: Chennai Estimated delivery:June 18, 2026 - June 22, 2026

Description

Baincut-LSS is designed for metallographic prep of small or delicate specimens. With a single-phase AC motor, arbor size 12.7 mm, and continuously variable speed from 0 to 600 RPM, it allows accurate sectioning with minimized heat generation. Includes down-feed with adjustable weights, micrometer cross-feed (0-25 mm), automatic cut-off switch, and built-in coolant tray. Especially suited for micro-analysis, R&D, and materials sensitive to thermal distortion.

Chennai Metco Low Speed Saw Baincut - LSS

Ideal for lab or research use, the Baincut-LSS Low Speed Saw offers clean and controlled sectioning for materials of moderate toughness. It supports cutting up to 20 mm diameter, has a sturdy locking mechanism to stabilize smaller workpieces, and provides safety via auto cut-off. Its compact footprint and integrated coolant tray make it suitable for bench-top setups where space, precision, and sample integrity matter

Features

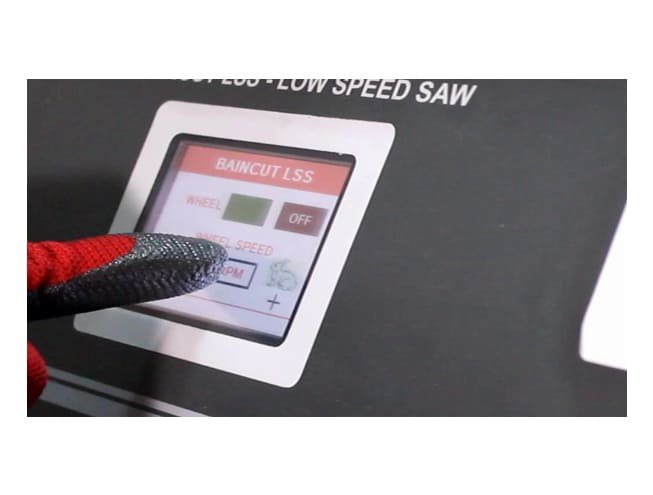

Variable Speed 0-600 RPM

Allows fine control over cutting speed; slow speeds reduce heat and prevent altering specimen microstructure.

Cutting Capacity up to 20 mm Diameter

Supports moderate sized specimens (for LSS,20 mm) making it suitable for many lab-scale materials.

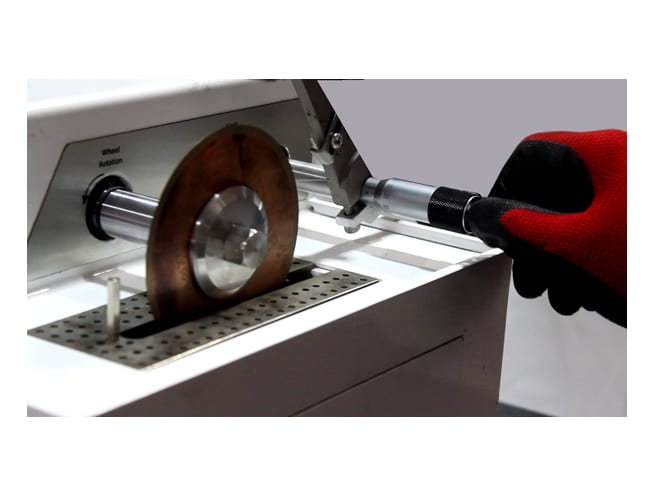

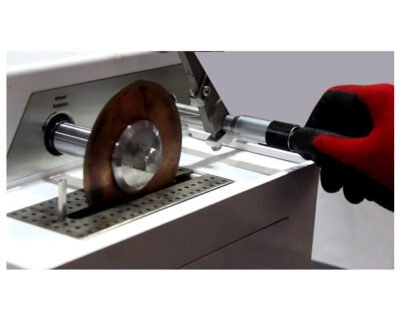

Adjustable Cross-Feed Micrometer (0-25 mm)

Enables precise control of how far the sample moves into the blade for consistent sectioning.

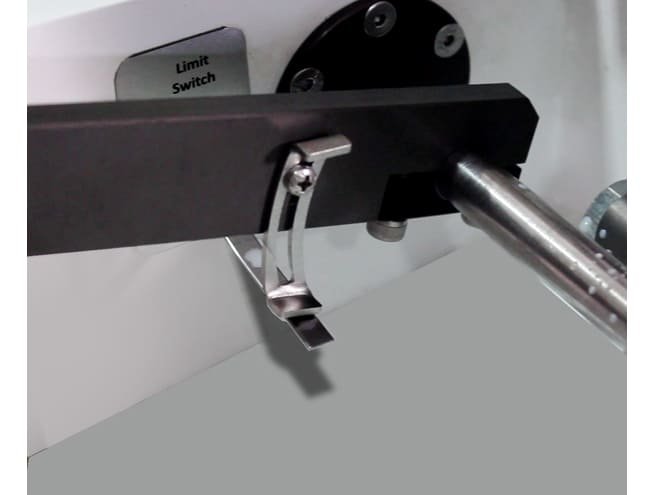

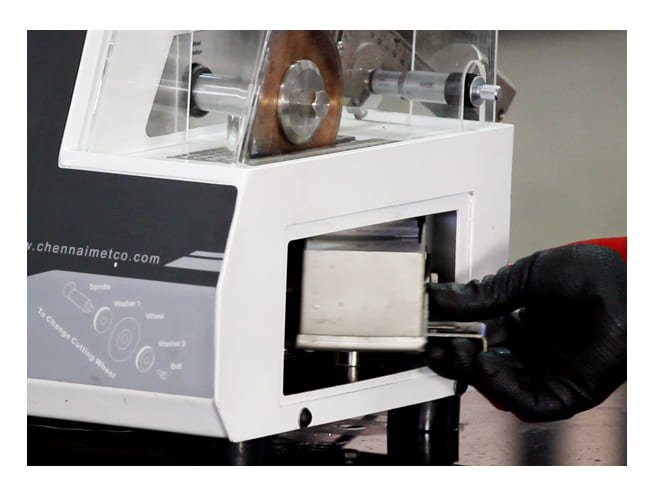

Built-in Coolant Tray & Automatic Cut-Off Switch

Coolant tray helps manage heat and wash away debris; automatic switch offers safety once cut completes.

Single Phase AC Motor & Stable Mechanical Locking

Easier to set up in standard lab power contexts, stable locking ensures minimal vibration and better cut quality especially for small or fragile specimens.

Overview

Specification	Detail
Product Name	Chennai Metco Low Speed Saw Baincut – LSS
Cutting Capacity	Up to 20 mm diameter
Speed	Continuously variable 0 – 600 RPM
Motor	Single-phase AC motor, 230 V / 50 Hz
Arbor Size	12.7 mm
Cross-Feed Adjustment	Micrometer, range 0 – 25 mm
Automatic Cut-Off	Yes — when cut completed, automatically stops
Machine Size	approx 400 × 300 × 250 mm (W × D × H)
Additional Features	Down-feed facility with different weights; built-in coolant tray (movable / easy to handle)
