Chennai Metco Cold Cutting Baincut-M

The Chennai Metco Baincut-M is a robust tabletop abrasive cutter engineered for metallographic sectioning of metal, ceramic, and mineral samples. It offers a 60 mm cutting capacity, powered by a 3 HP, 3-phase motor, 2800 RPM spindle speed, with built-in coolant recirculation and safety features like an FRP hood and safety lock.

45 people are viewing this product right now

🔥 3 items sold in last 3 hours

Category: Sectioning

Brand: Chennai Estimated delivery:June 18, 2026 - June 22, 2026

Description

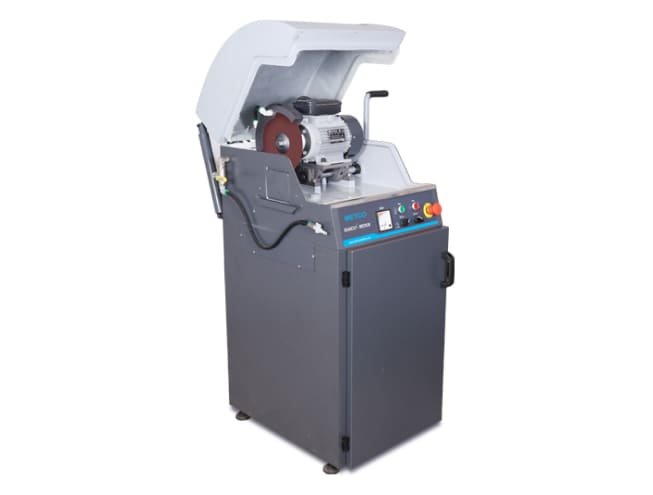

Designed for in-house sample preparation, the Baincut-M allows precise sectioning with a 10-inch cut-off wheel and a 3 HP, 3-phase motor. Its ergonomic cutting handle, double vise (with optional quick-action cam-vise), internal illuminator, coolant pump, and robust T-slot table bed deliver control, cleanliness, and user safety via features like a safety lock, FRP hood, and viewing window.

Chennai Metco Cold Cutting Baincut-M

Perfect for quality lab metallography, the Baincut-M provides a sturdy light alloy base and recirculation coolant system to minimize thermal damage during cutting. Safety and convenience are assured by components such as the FRP hood, viewing window, internal light, ergonomic cutting handle, and side-mounted quick-action vise design. Its footprint suits benchtop use while providing precise 60 mm diameter cuts at 2800 RPM.

Features

Cutting Capacity 60 mm (Diameter)

Capable of sectioning samples up to 60 mm in diameter, suitable for most metallographic specimen sizes.

3 HP, 3-Phase Motor @ 2800 RPM

Provides strong, stable power and high-speed rotation for efficient, clean sectioning.

Recirculation Coolant System

Keeps the cutting zone cooled, reducing thermal stress and preventing microstructural damage. Includes 1/3 HP coolant pump.

Safety & Ergonomics

Includes FRP hood, safety lock, viewing window, cleaning hose, and ergonomic handle for safe and comfortable operation.

Double Vise with Quick-Action Cam Option

Solid twin vise design for securing specimens, with an optional quick-action cam vise for faster clamping. Includes internal illuminator.

Overview

Specification	Detail
Product Name	Chennai Metco Baincut-M
Cutting Capacity	60 mm diameter
Motor	3 HP, 3-phase
Spindle Speed	2800 RPM
Wheel Diameter	Up to 10″ (≈ 250 mm)
Coolant System	Recirculation coolant system with 1/3 HP pump
Safety & Auxiliary Features	FRP hood, viewing window, internal illuminator, safety lock, cleaning hose
Vises	Double vise; Quick-action cam vise option
Table Bed	T-Slot Bed: 60 mm × 190 mm with 8 mm T-slots
Dimensions	850 mm × 170 mm × 1550 mm (L × D × H)
Coolant Pump Power	1/3 HP
Additional Options	Medium automation option available
