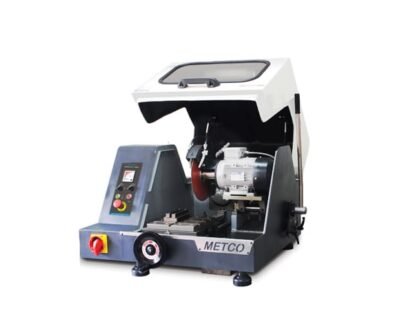

Chennai Metco Petrography Sectioning Baincut Geo

Chennai Metco Petrography Sectioning Baincut Geo

The Chennai Metco Baincut Geo is a heavy-duty abrasive sectioning machine designed for petrographic specimen preparation. Powered by a 5 HP three-phase motor, it accommodates specimen diameters up to 90 mm using 8-, 10- or 12-inch discs. Wet or dry cutting, precise vice and clamp setups, and safety interlocks deliver reproducible, macro surface quality for microstructure analysis.

22 people are viewing this product right now

🔥 9 items sold in last 3 hours

Category: Sectioning

Brand: Chennai Estimated delivery:June 15, 2026 - June 17, 2026

Description

Baincut Geo is built for precision cutting of brittle and layered materials like fossils, ceramics, minerals, and rocks for petrographic analysis. It includes secure clamping (vice, vertical clamp, double saddle clamp) for specimens up to Ø 90 mm, motion in X (50 mm for cross section) and Y (150 mm for longitudinal section), and manual ergonomic Z movement. A 50-liter recirculating coolant tank supports wet cutting; LED illumination, door limit switch, and emergency stop improve safety and usability.

Chennai Metco Petrography Sectioning Baincut Geo

Cut with confidence and clarity using the Baincut Geo. It locks specimens firmly, spins up a powerful 5 HP motor, and slices with an abrasive wheel size of your choice. Whether wet or dry, its motion precision (cross, longitudinal, vertical), safety stops, and coolant system protect your samples—and your results. Ideal for labs needing clean cuts, minimal damage, and high repeatability.

Features

High Power, Three-Phase Motor (5 HP)

Delivers the torque needed to cut hard/brittle mineral specimens without stalling.

Flexible Wheel / Specimen Capacity

Supports abrasive wheels of 8”, 10”, or 12” size; specimen Ø up to 90 mm.

3-Axis Movement (X, Y, Z)

X for cross-section (50 mm), Y for longitudinal (150 mm), and manual Z height adjustment for precise control.

Wet & Dry Cutting with Coolant System

Includes a 50-liter coolant recirculation tank supporting wet cutting; dry cutting possible. Helps reduce heat damage.

Safety & Usability Features

Features like door limit switch, emergency stop, rigid clamps & vice, internal LED lighting for visibility. All make cutting safer and more precise.

Overview

Specification Item	Unit	Value
Motor	HP / Phase	5 HP, Three-phase
Specimen Diameter Capacity	mm	Up to Ø 90 mm
Wheel / Disc Sizes Supported	inches	8”, 10”, 12”
X-Movement (Cross Section) Travel	mm	50 mm
Y-Movement (Longitudinal Section) Travel	mm	150 mm
Z-Movement (Vertical Adjustment)	—	Ergonomic manual handle for vertical movement
Coolant System	liters	50 L recirculating coolant tank
Cutting Mode	—	Wet & dry
Safety Features	—	Door limit switch; emergency stop; sturdy clamps & vice
Illumination	—	Internal LED lamp in cutting area
