The GeoCut is a versatile cutting system for petrographic laboratories, providing accurate sectioning of hard materials such as rocks, ceramics, and glass. Its table-feed cutting system with Z-axis wheel positioning ensures precise plane-parallel sections. Equipped with a robust motor, electronic braking, and safety interlocks, the GeoCut is engineered for reliability in demanding applications.

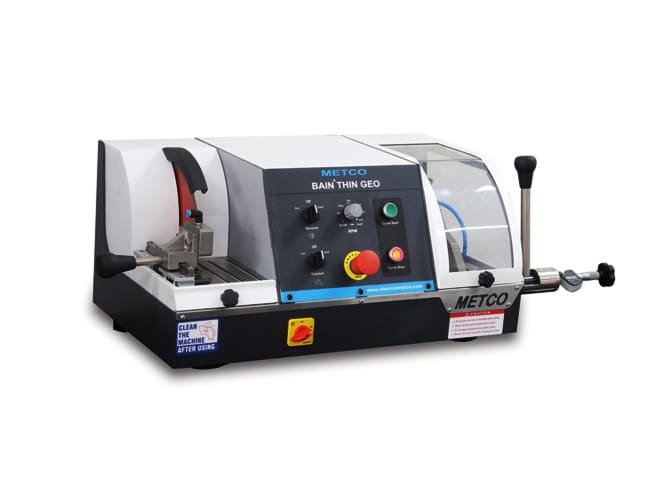

Chennai Metco Petrography Cut Off Grinding Thin GEO
Engineered for petrography and geology, the GeoCut enables precise and efficient sectioning of challenging specimens. Its design integrates manual X, Y, and Z-axis controls, mechanical thickness display, and compatibility with Ø250–Ø300 mm diamond wheels. With a rugged alloy frame, advanced cooling options, and multiple clamping accessories, it ensures stable and reproducible sample preparation.
Features
Overview
| Specification | Detail |
|---|---|
| Order Code | 14 03 |
| Model | GEOCUT |
| Chop Cutting, Z Axis | Manual |
| Table Feed Cutting, Y Axis | Manual |
| Parallel Cutting, X Axis | Manual |
| Wheel Diameter (mm) | Ø250 – Ø300 |
| Cutting Capacity Ø250 (mm) | Ø85 |
| Cutting Capacity Ø300 (mm) | Ø110 |
| Cutting Capacity Ø300 (mm) | 70 × 200 |
| Y Axis Travel (mm) | 225 |
| X Axis Travel (mm) | 70 |
| Z Axis Travel (mm) | 125 |
| T-Slot Table Dimension (W×D, mm) | 380 × 250 |
| T-Slot Size (mm) | 12 |
| Cutting Power (S1) | 4 kW |
| Cutting Power (S3) | 5.1 kW |
| Wheel Speed | 2850 rpm |
| Size (W×D×H, cm) | 93 × 93 × 63 |
| Size with Cabinet (cm) | 93 × 93 × 139 |
| Weight | 210 kg |
| Cooling Unit Capacity | 100 L |
