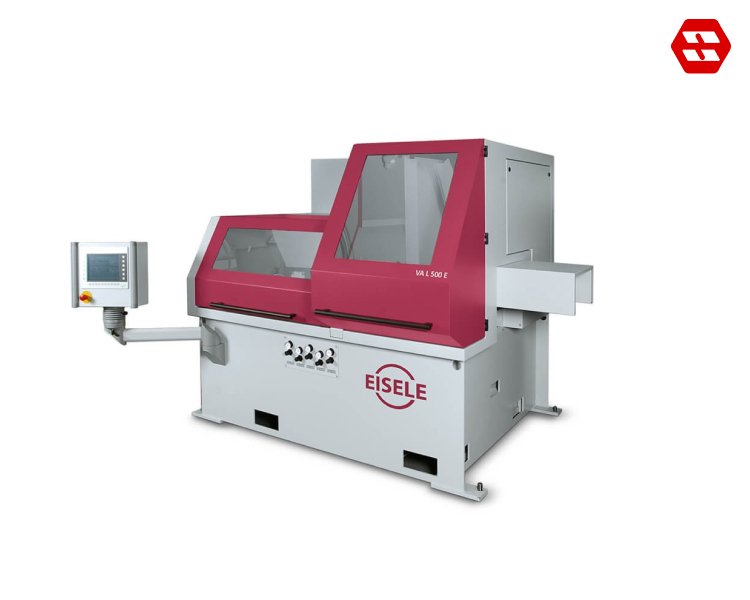

Aluminium Circular Saw VA-L 500 E
Excellent Accessibility

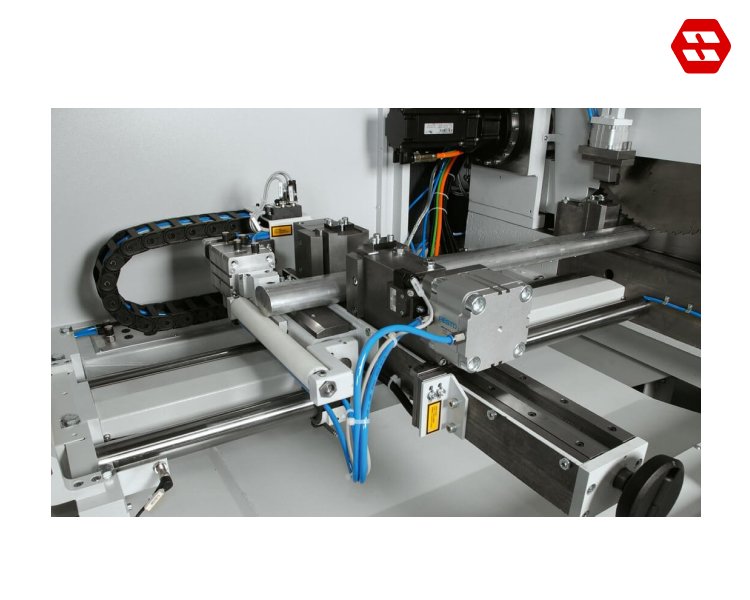

Feeding Gripper With Lift and Shift Device
Intuitive Control System of The Aluminium Saw
Automatic Widening of Kerf Channel
Features of The Aluminium Circular Saw VA-L 500 E
Technical Data Aluminium Circular Saw
VA-L 500 E
| Cutting Range | |
| Cutting range 90° round | 175 mm |
| Cutting range 90° square | 235 135 mm |
| Cutting range 90° square | 155 x 155 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn square | 10 x 10 mm |
| Performance Characteristics | |
| Drive power | 18 kW |
| RPM | 800 – 3,400 min-1 |
| Saw blade diameter | 450 – 500 mm |
| Feeding length single stroke | 1,000 mm |
| Feed rate | 0 – 1,000 mm/s |
| Saw feed | servo-driven |
| Material clamping | pneumatic |
| Dimensions and Weight | |
| Length | 2,140 mm |
| Width | 2,010 mm |
| Height | 2,016 mm |
| Weight | 2,200 kg |
| Material support height | 925 mm |
