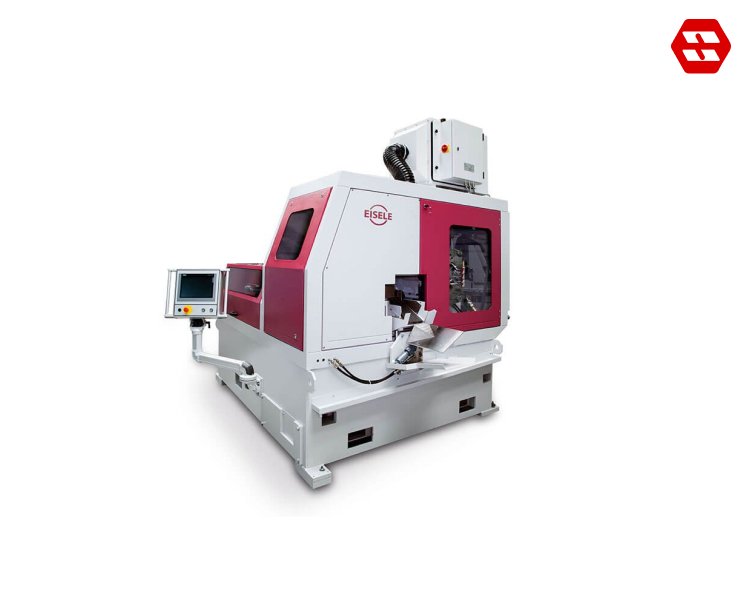

High Speed Circular Saw HCS 130 MF
Stable,Low-Vibration Gearbox
Powerful Control System
Funnel-Shaped Machine Base
Servo-Driven Feeding Gripper
Features of The High Speed Circular Saw HCS 130 MF
Technical Data High Speed Circular Saw HCS
130 MF
| Cutting Range | |
| Cutting range 90° round | 130 mm |
| Cutting range 90° square | 110 x 110 mm |
| Smallest dimension to be sawn round | 20 mm |
| Smallest dimension to be sawn square | 20 x 20 mm |
| Performance Characteristics | |
| Drive power | 22.5 kW |
| RPM | 20 – 250 min-1 |
| Saw blade diameter | 315 / 360 / 420 mm |
| Feeding length single stroke | 1,000 mm |
| Feed rate | 1,730 mm/s |
| Saw feed | servo-driven |
| Material clamping | hydraulic |
| Saw drive | servo-driven |
| Dimensions and Weight | |
| Length | 2,700 mm |
| Width | 2,400 mm |
| Height | 2,500 mm |
| Weight | 3,900 kg |
| Material support height | 1,170 mm |
