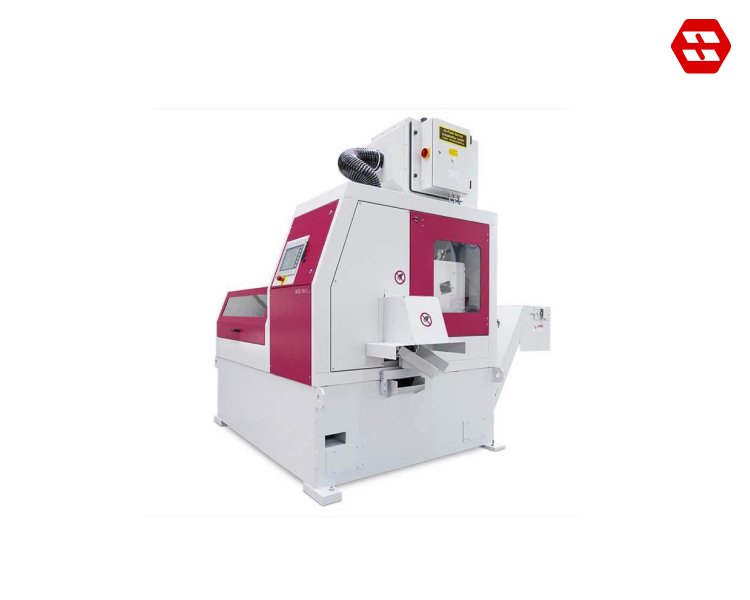

Circular Saw Machine High Speed HCS 150 E BEHRINGER
Merupakan mesin gergaji bundar berkecepatan tinggi yang memberikan presisi dan efisiensi tak tertandingi untuk memotong logam. Dilengkapi teknik kontrol elektronik yang canggih, alat berat ini memastikan produktivitas tinggi dan kualitas pemotongan yang unggul. Konstruksinya yang tahan lama dan mudah digunakan untuk berbagai aplikasi pengerjaan logam industri, memastikan kinerja yang terbaik dan pengoperasian yang tahan lama.
31 people are viewing this product right now
🔥 5 items sold in last 3 hours
High Speed Circular Saw HCS 150 E

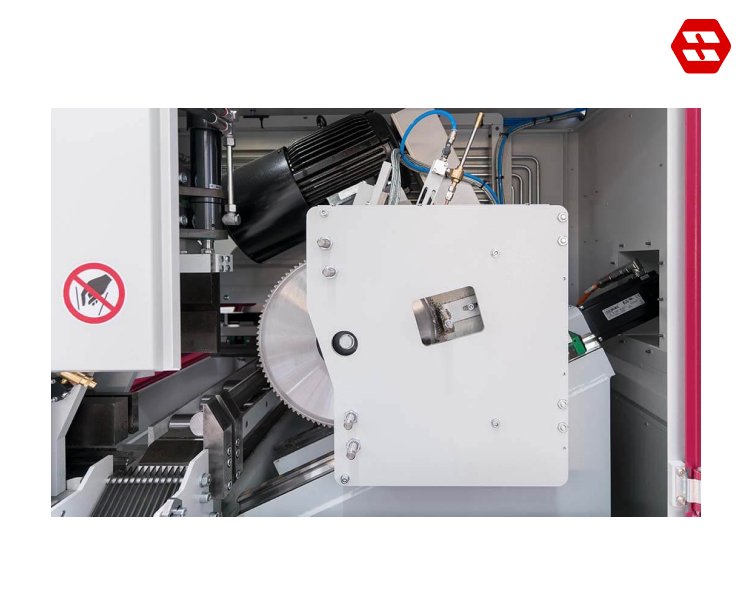

HCS Saw Blade Guide

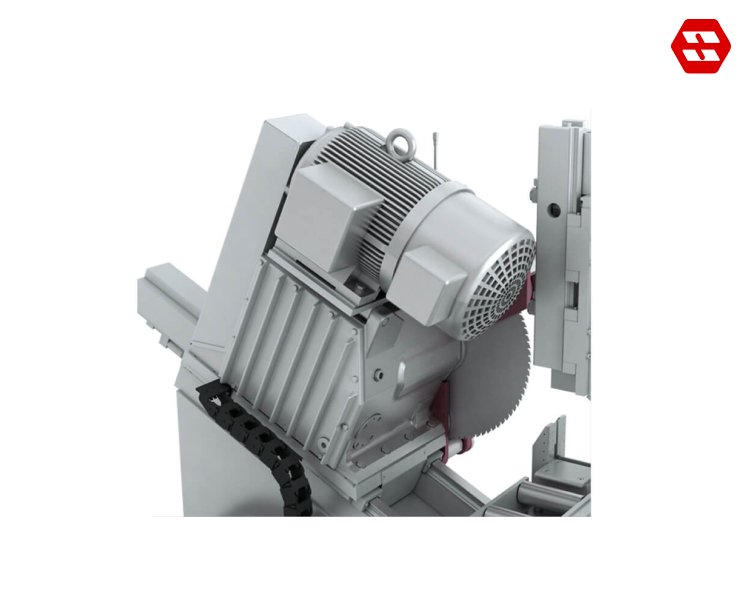

Stable,Low-Vibration Gearbox

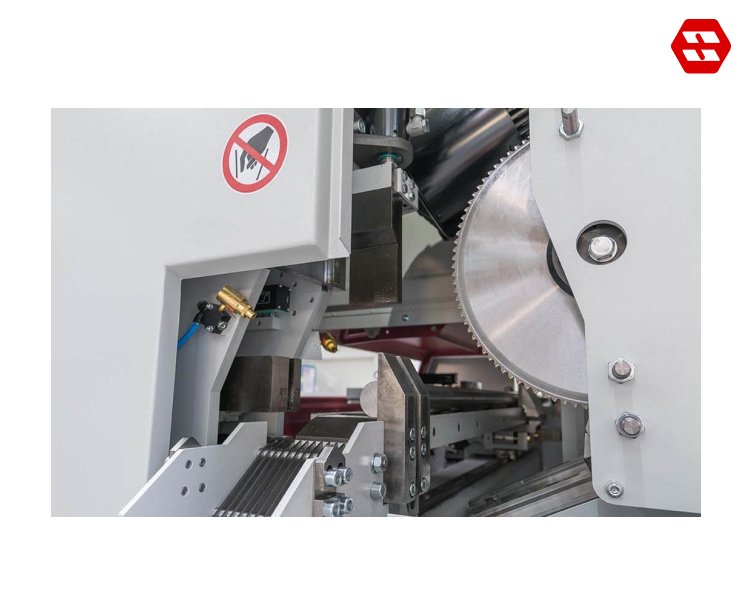

3-Point Material Clamping

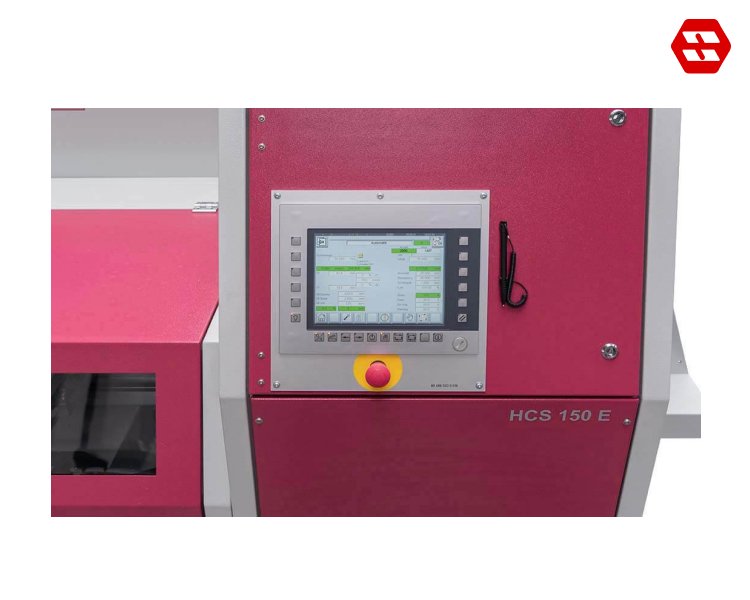

Powerful Control of The Industrial Circular Saw

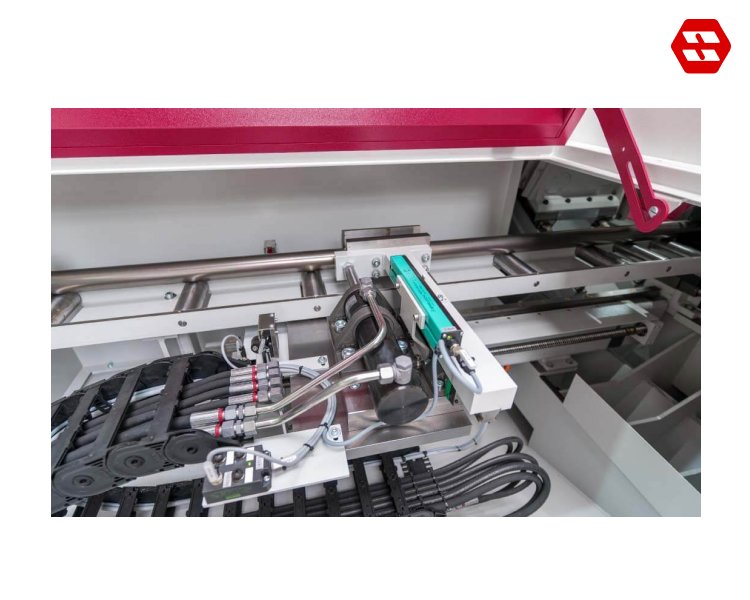

Servo-Driven Feeding Gripper

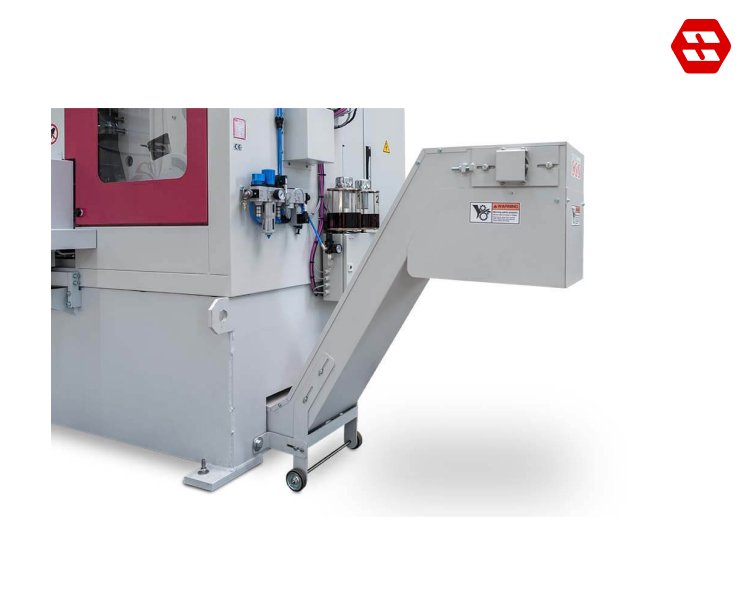

Chip Conveyor

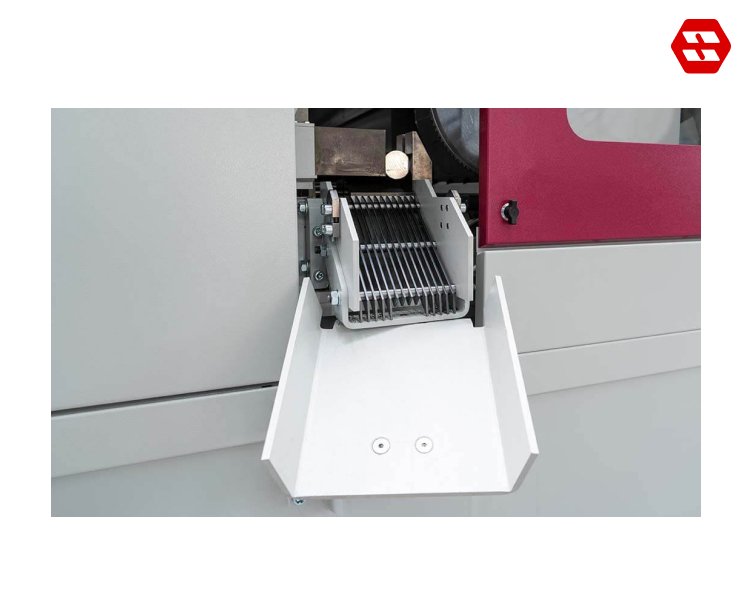

Sorting Switch

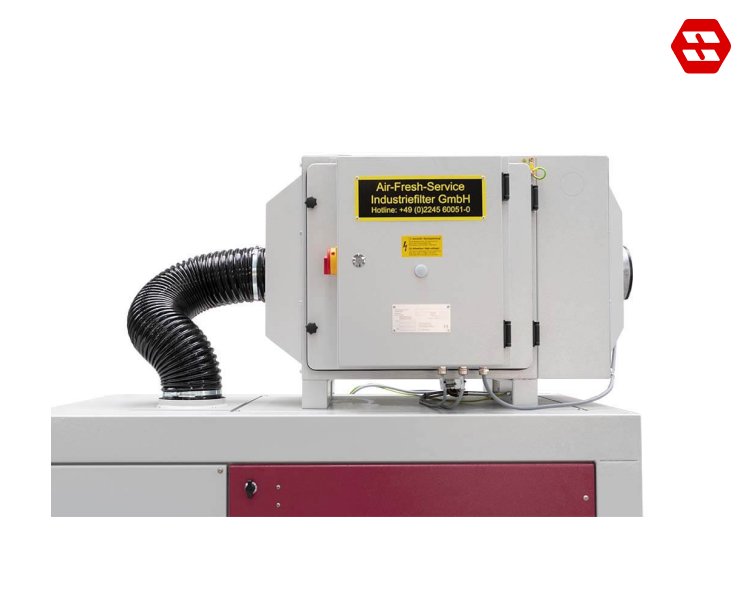

Spray Mist Extraction

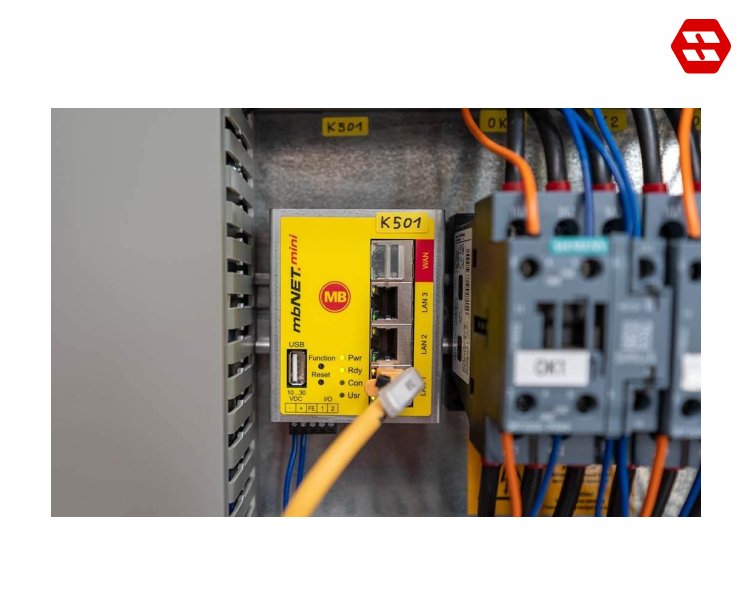

Remote Maintenance as Standard
Features of The High Speed Circular Saw HCS 150 E
Technical Data High Speed Circular Saw
HCS 150 E
| Cutting Range | |
| Cutting range 90° round | 152,4 mm |
| Cutting range 90° square | 130x 130 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn square | 10 x 10 mm |
| Performance Characteristics | |
| Drive power | 15 kW |
| RPM | 20 – 250 min-1 |
| Saw blade diameter | 360 / 420 / 460 mm |
| Feeding length single stroke | 1,000 mm |
| Feed rate | 1,250 mm/s |
| Saw feed | servo-driven |
| Material clamping | hydraulic |
| Saw drive | frequency-controlled |
| Dimensions and Weight | |
| Length | 2,550 mm |
| Width | 1,900 mm |
| Height | 2,000 mm |
| Weight | 3,200 kg |
| Material support height | 1,170 mm |
