Circular Saw Machine Tube Cutting Saw PSU 450 GS BEHRINGER
Merupakan gergaji pemotong tabung adalah solusi canggih yang dirancang untuk pemotongan tabung secara efisien dan presisi. Didesain dengan mempertimbangkan ketahanan dan presisi, alat berat ini dilengkapi unit penggergajian berperforma tinggi dan mampu menangani berbagai macam material dan ukuran. Mengintegrasikan fitur-fitur canggih yang mudah digunakan.
9 people are viewing this product right now
🔥 5 items sold in last 3 hours
Tube Cutting Saw PSU 450 GS

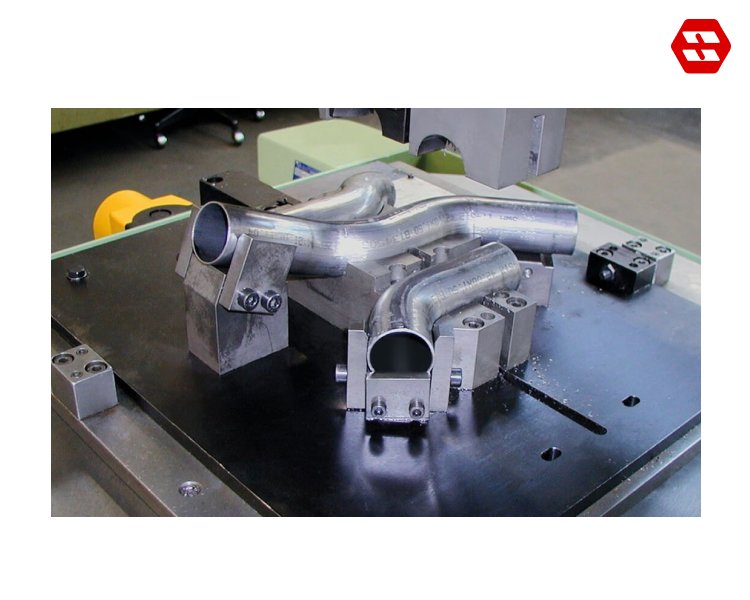

Individual Clamping Concepts via Standardised Mounts
Features of The Tube Cutting Saw PSU 450 GS
Technical Data Tube Cutting Saw PSU 450 GS
| Cutting Range | |
| Cutting range round | 150 mm |
| Cutting range square | 140 x 140 mm |
| Cutting range flat | 400 x 30 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 10 mm |
| Performance Characteristics | |
| Drive power | 3.0 / 3.6 kW |
| RPM standard | 6 / 12 / 24 / 48 min-1 |
| RPM optional | 12 / 24 / 48 / 96 min-1 |
| Saw blade diameter | 450 mm |
| Saw feed | hydraulic |
| Material clamping | hydraulic |
| Dimensions and Weight | |
| Length | 1,600 mm |
| Width | 1,025 mm |
| Height | 2,040 mm |
| Weight | 1,200 kg |
| Material support height | 1,000 mm |
