Circular Saw Machine Mitre PSU 450 A BEHRINGER
Merupakan mesin gergaji bundar serbaguna yang dirancang untuk presisi dan fleksibilitas dalam operasi pemotongan. Model kokoh ini memungkinkan pemotongan miring yang akurat, sehingga cocok untuk berbagai aplikasi dalam fabrikasi dan konstruksi logam. Sehingga dapat meningkatkan produktivitas sekaligus memberikan hasil berkualitas tinggi secara konsisten.
31 people are viewing this product right now
🔥 3 items sold in last 3 hours

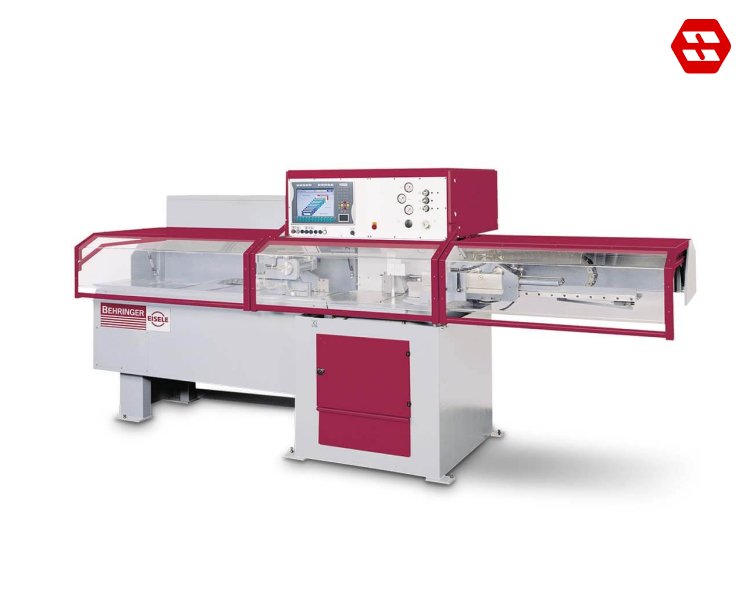

Automatic Mitre Circular Saw PSU 450 A
Automatic Mitre Adjustment 30° to 150°
Servo-Driven Feeding Gripper

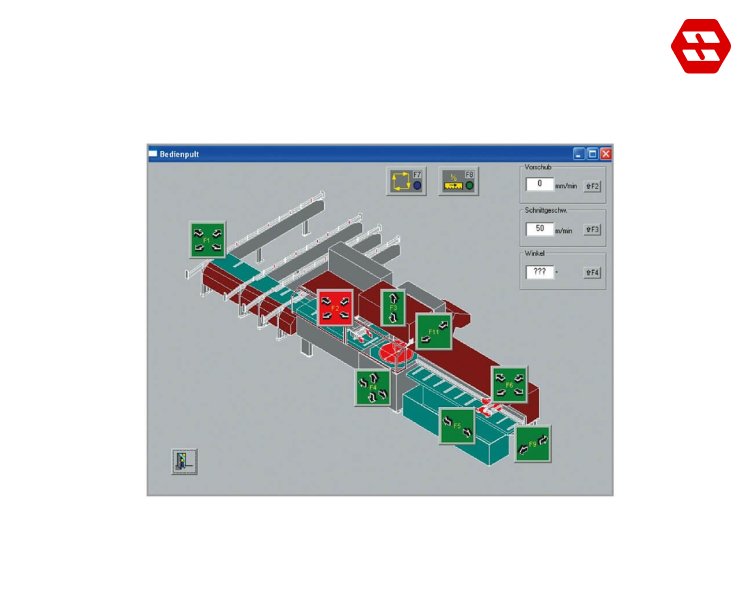

Powerful Control

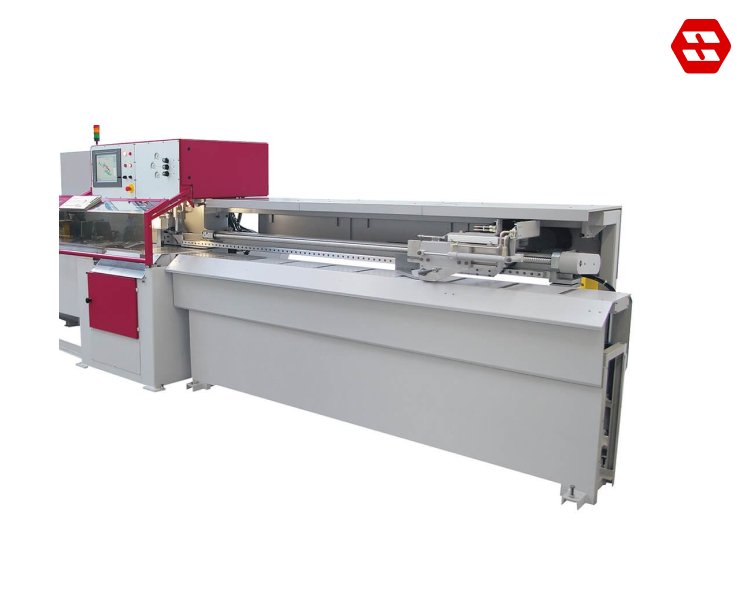

Highest Level of Automation With Cut-Off Gripper
Features of The Mitre Circular Saw PSU 450 A
Technical Data Mitre Circular Saw PSU 450 A
| Cutting Range | |
| Flat 90° | 240 x 70 mm |
| Flat 45° | 170 x 50 mm |
| Flat 30° | 130 x 30 mm |
| Square 90° | 140 x 140 mm |
| Square 45° | 125 x 125 mm |
| Square 30° | 100 x 100 mm |
| Round 90° | 150 mm |
| Round 45° | 145 mm |
| Round 30° | 112 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 10 mm |
| Performance Characteristics | |
| Drive power | 7,1 kW |
| RPM | 1 – 70 min-1 |
| Saw blade diameter | 450 mm |
| Feeding length single stroke | 1,500 mm |
| Feed rate | 667 mm/s |
| Saw feed | hydraulic |
| Material clamping | hydraulic |
| Dimensions and Weight | |
| Length | 5,800 mm |
| Width | 1,600 mm |
| Height | 2,300 mm |
| Weight | 3,150 kg |
| Material support height | 1,045 mm |
