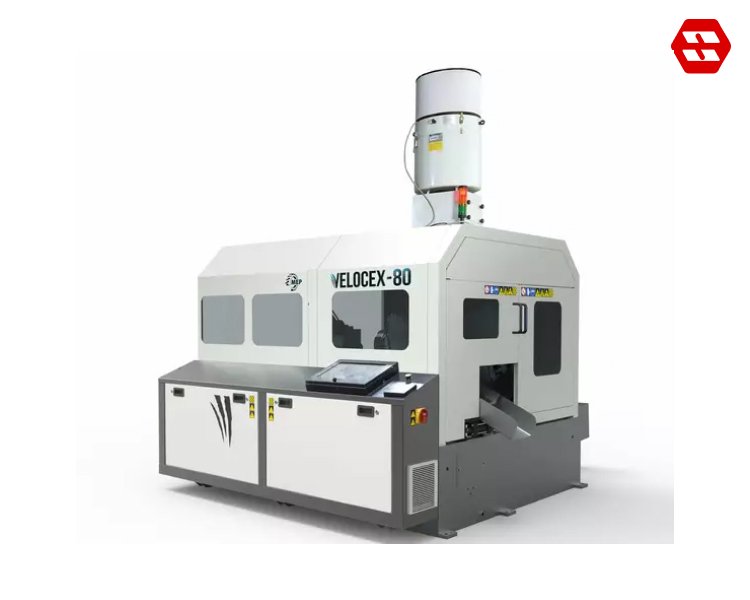

Automatic Circular Saw Machine VELOCEX 80 For High-Speed Cutting MEP
Merupakan mesin gergaji bundar otomatis solusi ringkas namun kuat yang dirancang untuk aplikasi pemotongan berkecepatan tinggi. Dilengkapi pengoperasian otomatis, mesin ini menghasilkan pemotongan yang cepat dan presisi pada berbagai material dengan mudah. Mengoptimalkan efisiensi pemotongan, mengurangi waktu produksi tanpa mengorbankan kualitas.
25 people are viewing this product right now
🔥 7 items sold in last 3 hours
VELOCEX 80
High-Performance Circular Sawing Machine For Mass Production
Carbide Tipped Circular Saw Blade
Material Library For The Automatic Setting of The Blade Rotation Speed and Head Down Feed Rate
Motion of The Saw Head Powered by a Servo Motor
Double Clamping Hydraulic System of The Material
User-Friendly Progamming
Technical Data Semi Automatic Circular Saw Machine VELOCEX 80 MEP
CUTTING RANGE
 |  |  | |
| 0° | 80 mm | 60 mm | 65 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 85 mm |
| Minimum cut off length | 6 mm |
| Remnant length | 65 mm / 80 mm + cut length |
| Circular blade size | 285 x 2.0 x 1.70 x 32 – 4/9/50 & 4/11/63 mm 315 x 2.0 x 1.70 x32 – 4/12/90 & 4/11/63 mm |
| Blade motor | 11 Kw – Three-phase |
| Blade speed | 50 ÷ 200 m/min |
