Automatic Circular Saw Machine VELOCEX 100 For High-Speed Cutting MEP
Merupakan mesin gergaji bundar otomatis dirancang untuk pemotongan berkecepatan tinggi, memberikan perpaduan kinerja dan presisi. Didesain dengan fitur otomatis, mesin ini memfasilitasi pemotongan yang cepat dan akurat pada berbagai material sekaligus meminimalkan intervensi manual. Memudahkan proses pemotongan, meningkatkan efisiensi dan mengurangi waktu produksi.
16 people are viewing this product right now
🔥 11 items sold in last 3 hours

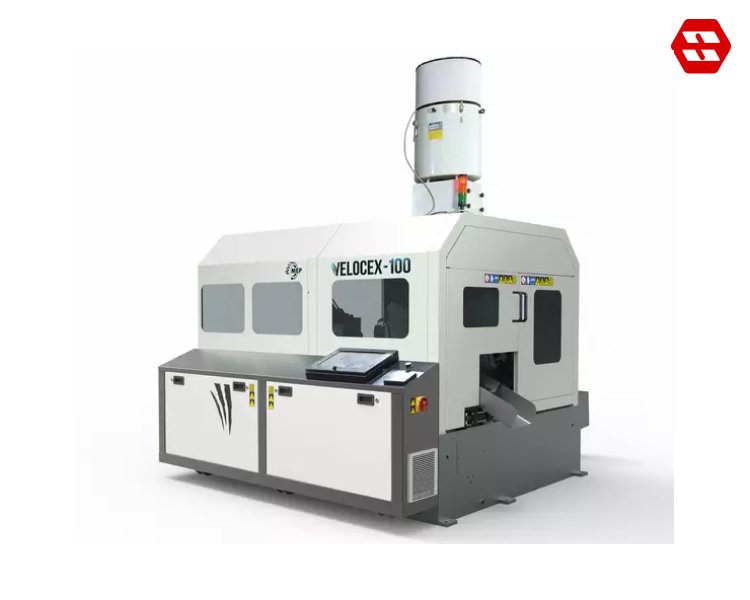

VELOCEX 100

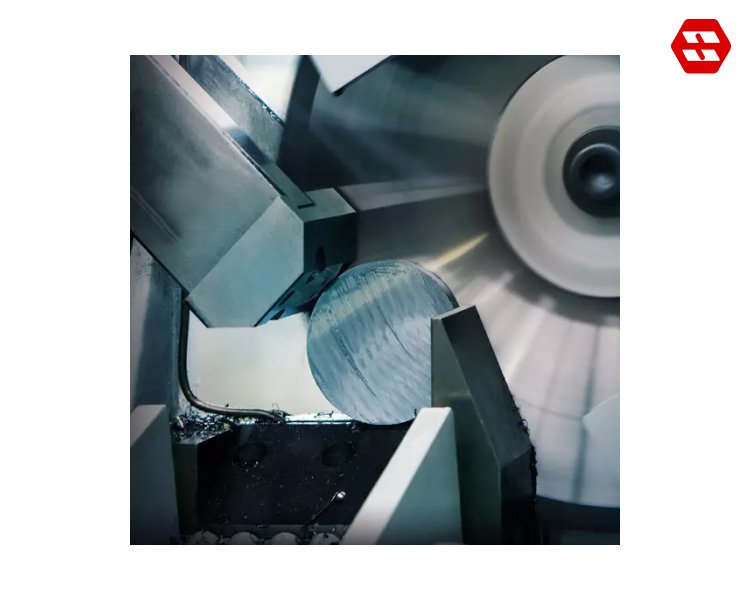

High-Performance Circular Sawing Machine For Mass Production

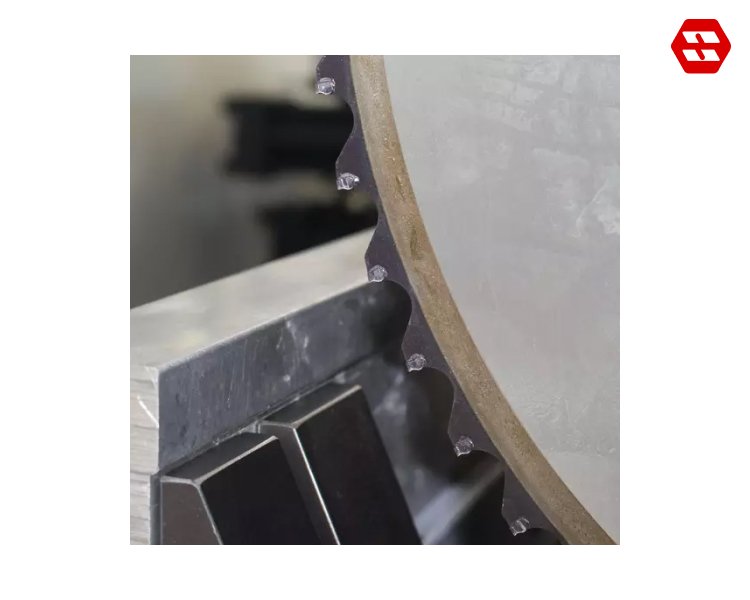

Carbide Tipped Circular Saw Blade

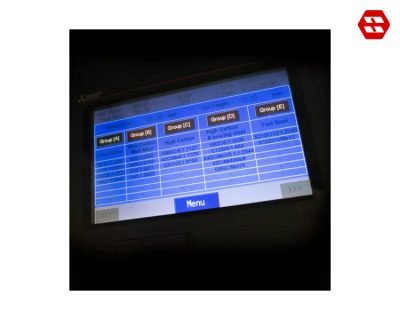

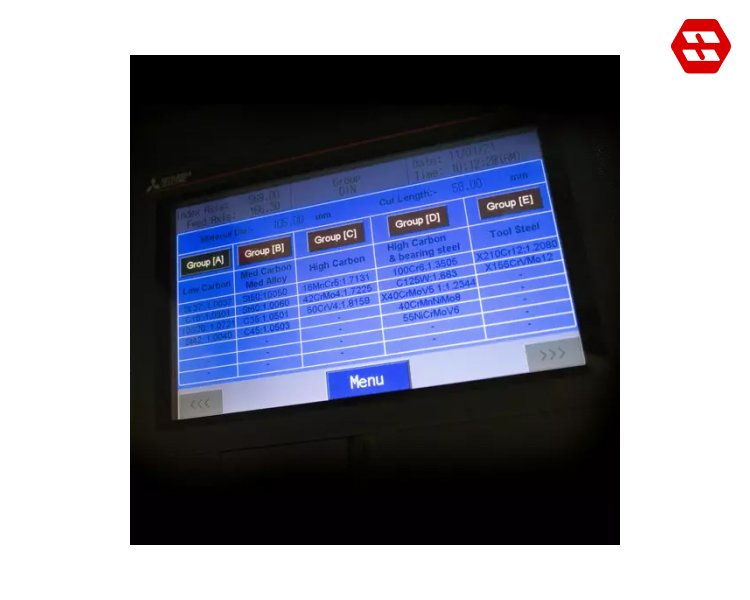

Material Library For The Automatic Setting of The Blade Rotation Speed and Head Down Feed Rate

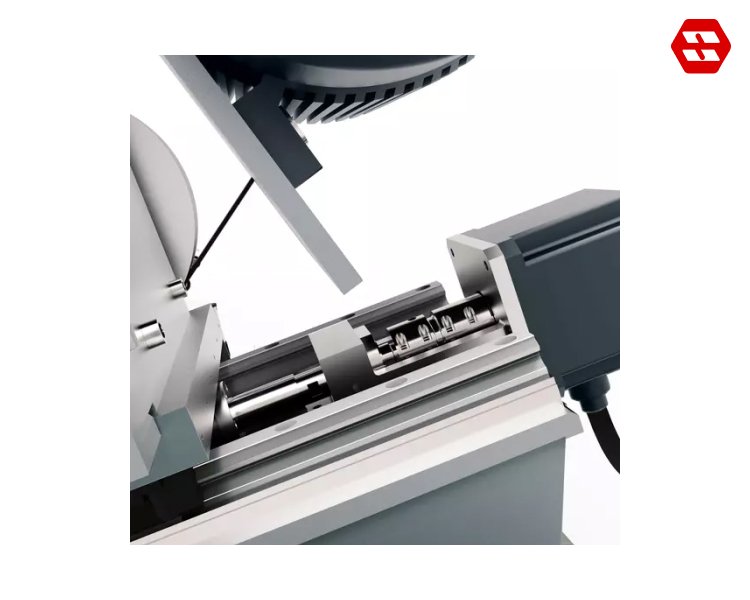

Motion of The Saw Head Powered by a Servo Motor

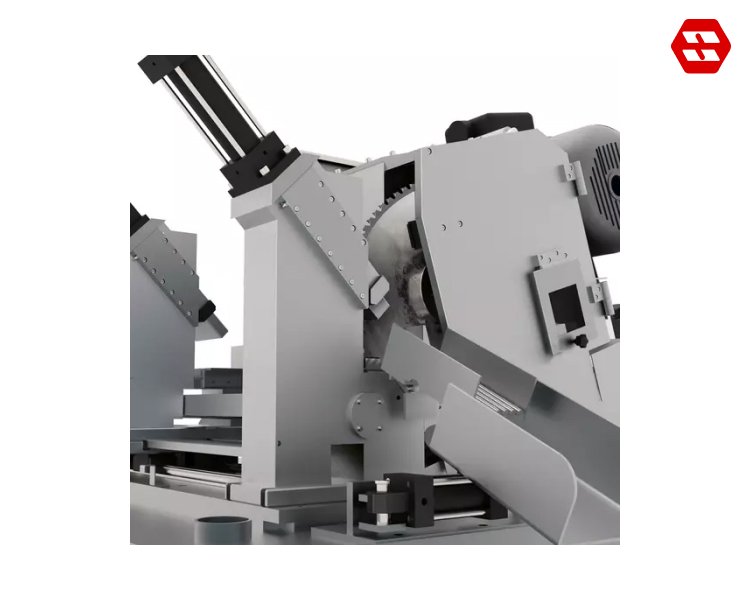

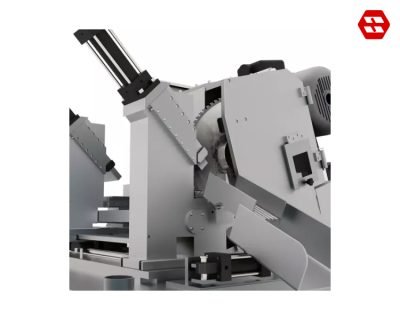

Double Clamping Hydraulic System of The Material

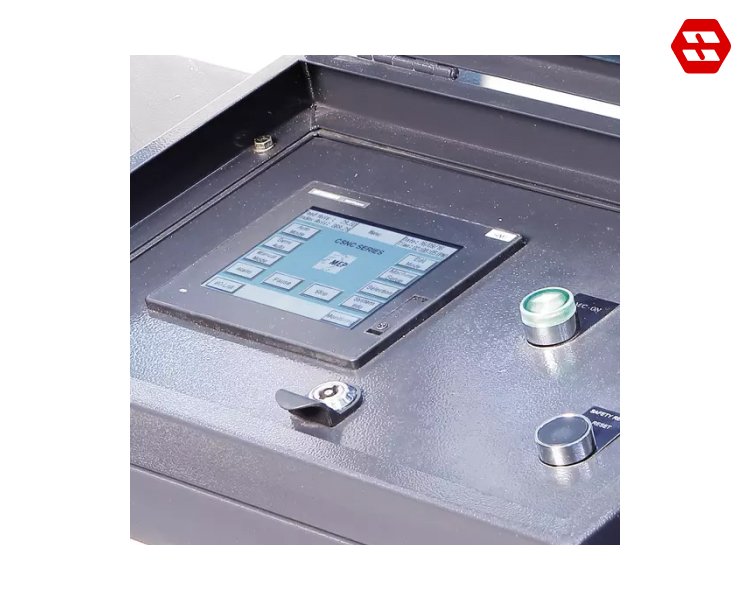

User-Friendly Progamming
Technical Data Semi Automatic Circular Saw Machine VELOCEX 100 MEP
CUTTING RANGE
 |  |  | |
| 0° | 100 mm | 80 mm | 90 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 130 mm |
| Minimum cut off length | 10 mm |
| Remnant length | 100 mm / 90 mm + cut length |
| Circular blade size | 360 x 2.6 x 2.25 x 40 – 4/15/80 & 4/12/90 mm 390 x 2.6 x 2.25 x 40 – 4/15/80 & 4/12/90 mm |
| Blade motor | 15 Kw – Three-phase |
| Blade speed | 50 ÷ 200 m/min |
