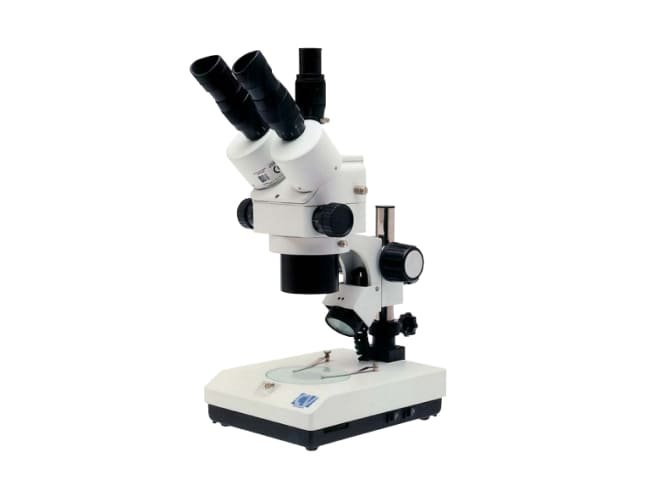

CV Instruments CV-MZ630B Optical Micoscope
The CV-MZ630B is a high-quality stereo zoom optical microscope designed for precise industrial and laboratory inspection. Featuring binocular viewing, it delivers sharp, high-contrast images with a wide zoom magnification range and excellent working distance. Its robust illumination and adjustable optics make it ideal for detailed surface examination and quality control.
34 people are viewing this product right now
🔥 6 items sold in last 3 hours
CV Instruments’ CV-MZ630B stereo microscope provides versatile optical performance with a continuous zoom ratio of 1:6.5 and magnification configurable up to 225× using optional lenses. It includes incident and transmitted halogen illumination, adjustable interpupillary distance, and durable construction for extended use in manufacturing, education, and research environments.
CV Instruments CV-MZ630B Optical Microscope
The CV-MZ630B binocular optical microscope offers reliable imaging with a wide field of view and long working distance for deep specimen observation. Standard WF10× eyepieces, adjustable diopters, and 360° rotatable tubes improve user comfort. Its modular accessories enhance flexibility for inspection, assembly, and detailed visual analysis.
Features
Overview
| Specification | Detail |
|---|---|
| Magnification Type | Zoom stereo binocular optical system. |
| Total Magnification | 7×–45× standard (varies with eyepieces/auxiliary objectives). |
| Zoom Ratio | 1:6.5 (0.7×–4.5× optical zoom). |
| Eyepieces | Wide Focus WF10× (standard); optional WF15×/20×/25×. |
| Field of View | Approx. 33 mm–5.1 mm diameter. |
| Working Distance | 108 mm (standard). |
| Interpupillary Distance | Adjustable 55 mm–75 mm. |
| Diopter Adjustment | ±5 (adjustable on both eyepieces). |
| Light Source | Incident & transmitted halogen illuminators (6 V/15 W). |
| Power | AC 220 V / 50 Hz. |
