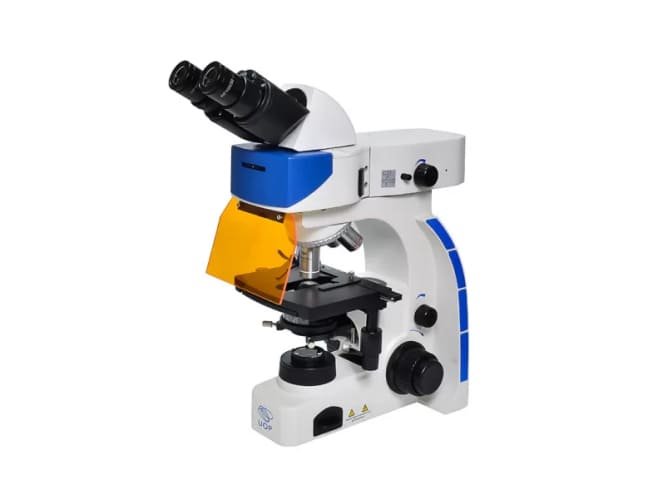

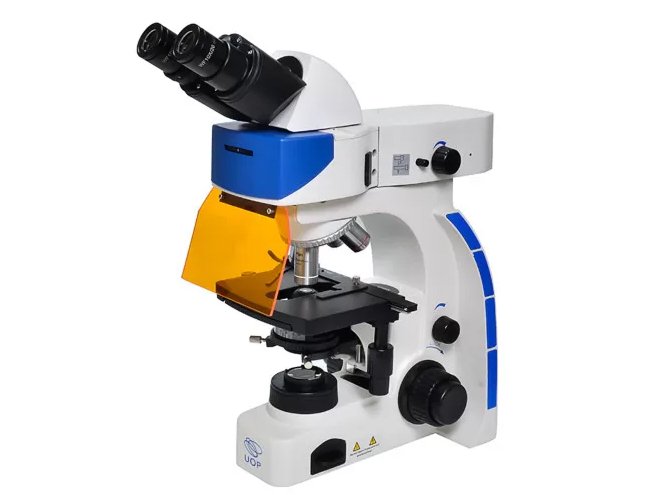

Euromex Fluorescence Microscope Oxion OX.3070

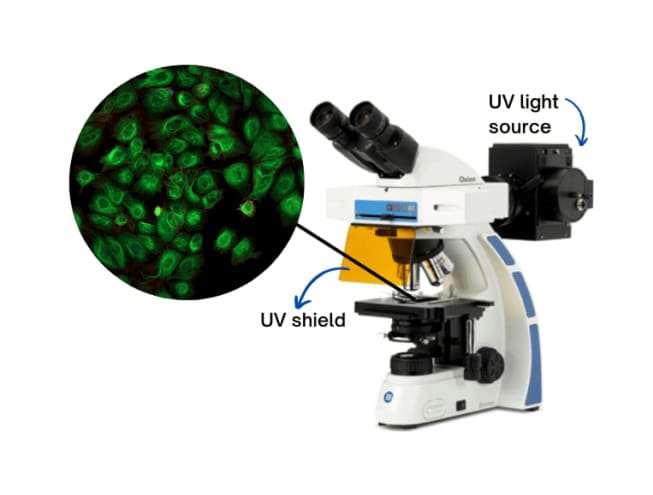

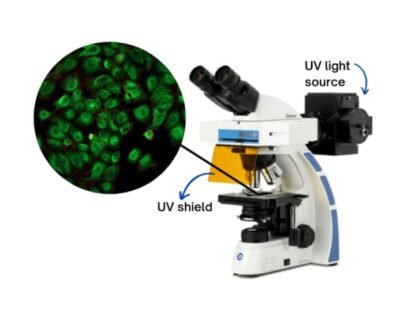

The Euromex Oxion OX.3070 Fluorescence Microscope is a high-performance upright microscope designed for life science, medical, and research labs. It features infinity corrected optics, semi-apochromatic Fluarex objectives, and a 100 W mercury vapor fluorescence illuminator for bright, high-contrast imaging of fluorescent specimens.
49 people are viewing this product right now
🔥 5 items sold in last 3 hours
The Euromex Oxion OX.3070 combines ergonomic design and advanced optics for demanding fluorescence applications. With swiveling Siedentopf eyetubes, HWF 10×/22 mm eyepieces, and a mechanical stage, it delivers excellent resolution and contrast. Its robust construction and versatile illumination support both brightfield and fluorescence observation.
Euromex Fluorescence Microscope Oxion OX.3070
The Euromex Oxion OX.3070 combines ergonomic design and advanced optics for demanding fluorescence applications. With swiveling Siedentopf eyetubes, HWF 10×/22 mm eyepieces, and a mechanical stage, it delivers excellent resolution and contrast. Its robust construction and versatile illumination support both brightfield and fluorescence observation.
Features
Overview
| Specification | Value |
|---|---|
| Model | Oxion OX.3070 |
| Brand | Euromex |
| Optical System | Infinity color corrected optical system. |
| Parfocal Distance | 45 mm. |
| Eyepiece Tubes | Swiveling Siedentopf, 50–75 mm interpupillary. |
| Eyepieces | PL 10×/22 mm with diopter adjustments. |
| Nosepiece | Reversed quintuple nosepiece. |
| Objectives Included | Plan achromatic & plan semi-apochromatic Fluarex series: 4×, 10×, 20×, S40×, S60×, S100× oil. |
| Stage | 150 × 140 mm with mechanical translator. |
| Focusing | Coaxial coarse & fine with 30 mm travel. |
| Condenser | Abbe, N.A. 1.25 with iris diaphragm. |
| Illumination | 3 W LED transmitted; 100 W mercury vapor for fluorescence. |
| Weight | Approx. ~10–15 kg (varies with configuration). |
| Applications | Life sciences, medical research, pathology & fluorescent imaging. |
