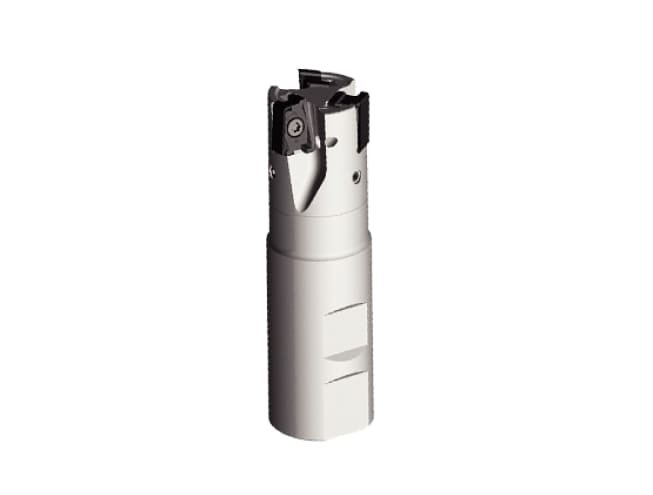

Cylindrical Weldon Shanks VSM490-15 Series Widia
The WIDIA VSM490-15 Cylindrical Weldon Shank cutter is a 90-degree shoulder milling solution designed for high productivity and reliable performance. Featuring a four-edge insert concept with embedded finishing capability, it delivers superior wall quality and precise machining. Internal coolant channels enhance chip evacuation and tool life across multiple material groups in demanding applications.
19 people are viewing this product right now
🔥 3 items sold in last 3 hours
Engineered for versatility, the VSM490-15 Weldon shank tool supports face milling, slotting, pocketing, and shoulder milling operations. Its strong cutter body enables depths of cut up to 15 mm while maintaining stability. The stepless machining concept allows accurate multi-pass machining with true 90-degree walls, improving dimensional accuracy and reducing secondary finishing processes.
Cylindrical Weldon Shanks VSM490-15 Widia
The cylindrical Weldon interface ensures secure clamping and torque transmission, making the VSM490-15 suitable for heavy machining conditions. Multiple insert geometries cover steel, stainless steel, cast iron, and non-ferrous materials. Optimized cutting geometry and coolant delivery provide excellent surface finish, consistent tool life, and reliable machining performance in industrial manufacturing environments.
Features
Spesification

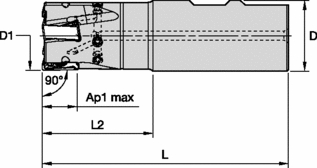

| order number | catalog number | D1 | D | L | L2 | Ap1 max | Z | kg | max RPM |
|---|---|---|---|---|---|---|---|---|---|
| 5710285 | VSM490D025Z02B25XN15 | 25 | 25 | 89 | 32 | 15,0 | 2 | 0,28 | 26700 |
| 5710286 | VSM490D032Z03B32XN15 | 32 | 32 | 111 | 50 | 15,0 | 3 | 0,58 | 22000 |
| 5873215 | VSM490D040Z03B32XN15 | 40 | 32 | 111 | 50 | 15,0 | 3 | 0,65 | 18800 |
