DeFelsko Certified Coated Metal Plates

DeFelsko Certified Coated Metal Plates are precision calibration standards for verifying coating-thickness gauges. Each set contains four epoxy-coated steel or aluminum plates spanning a relevant range (e.g. 0 – 1500 µm), traceable to NIST/PTB. Ideal for field, lab, or factory use to ensure gauge accuracy and compliance with ISO/QS-9000 standards.

34 people are viewing this product right now

🔥 3 items sold in last 3 hours

Category: Coating Thickness Gauge

Brand: Defelsko Estimated delivery:May 27, 2026 - May 29, 2026

Description

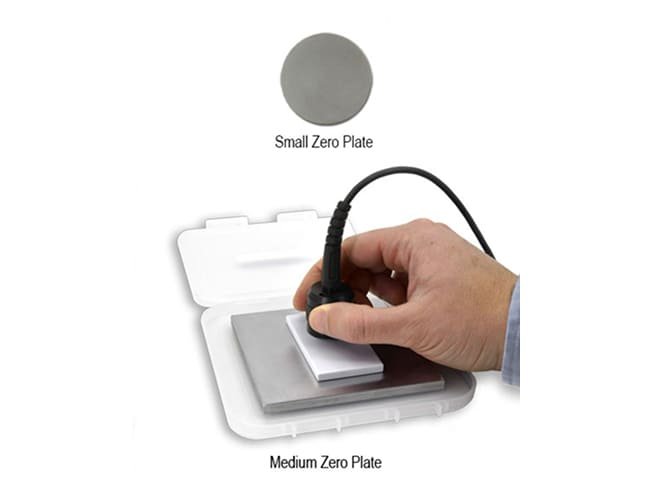

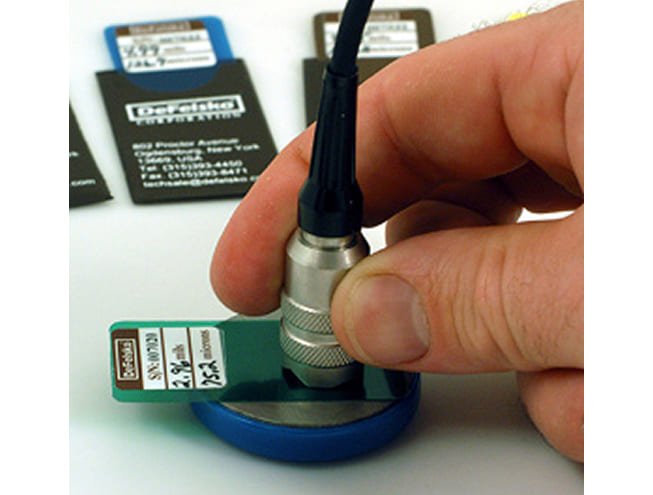

These certified metal plate sets provide reliable verification points for magnetic, eddy-current, or ultrasonic coating gauges. Durable epoxy coatings over 1018 steel or 6061-T6 aluminum protect the substrates. Individually serialized and supplied with a calibration certificate. Use includes zero plate checks, field verification, or routine QC tasks.

DeFelsko Certified Coated Metal Plates

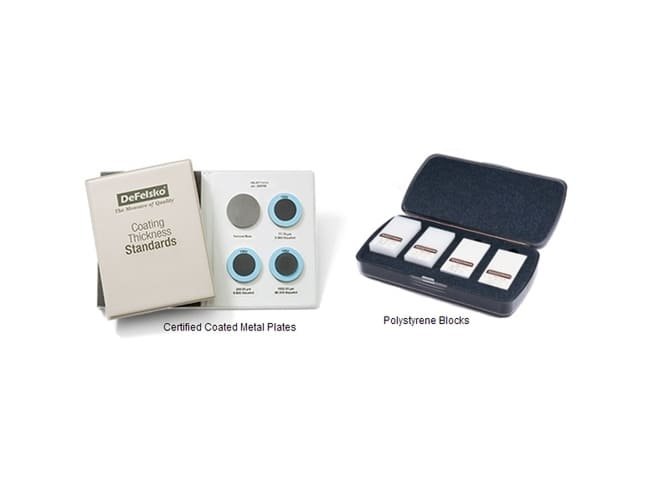

Ideal for regular calibration or field checks, DeFelsko’s Certified Coated Metal Plates simplify proving the measurement chain. The four-plate bundle covers low to high coating thicknesses, all traceable to NIST/PTB. Compact and rugged, sets are mounted in a protective binder for transport and frequent use without degrading accuracy.

Features

Traceable Calibration

Each plate set is serialized and supplied with a Certificate of Calibration traceable to NIST or PTB.

High Accuracy

Coated Metal Plates offer ± 0.43 µm / ± 0.017 mil accuracy.

Multiple Substrate Materials

Plates available over 1018 steel (ferrous) or 6061-T6 aluminum (non-ferrous) to suit different gauge types.

Four-Plate Sets Matching Gauge Ranges

Each set includes four plates with coating thicknesses that match the measurement ranges of common DeFelsko gages.

Durable Binder & Marked Units

Plates are mounted in a protective binder; labeled in both metric & imperial units for clear reference.

Overview

Order Code / Standard	Ideal For	Plate Thicknesses (Approx.)	Coating / Substrate	Accuracy
S1	DeFelsko PosiTector 6000 F, FS, FRS, FN, FNS, FNRS, FXS*; PosiTest F & FM	0 µm / zero 75 µm / 3 mils 250 µm / 10 mils 1500 µm / 60 mils	Epoxy on Steel (Ferrous)	± 0.43 µm / ± 0.017 mil
S2	PosiTector 6000 F0S, F45S, F90S, F90ES; PosiTest DFT Ferrous & Combo	0 75 µm 250 µm 1000 µm / 40 mils	Epoxy on Steel (Ferrous)	± 0.43 µm / ± 0.017 mil
S3	PosiTest G & GM; PosiPen	0 15 µm / 0.6 mils 40 µm / 1.6 mils 100 µm / 4 mils	Epoxy on Steel (Ferrous)	± 0.43 µm / ± 0.017 mil
A1	PosiTector 6000 N, NS, NRS, etc.	0 75 µm (3 mils) 250 µm (10 mils) 1500 µm (60 mils)	Epoxy on Aluminum (Non-ferrous)	± 0.43 µm / ± 0.017 mil
