DeFelsko Coating Thickness Gauge PosiTector 6000
The DeFelsko PosiTector 6000 is a high-performance electronic coating thickness gauge using magnetic and eddy-current principles to nondestructively measure coatings on ferrous and non-ferrous substrates. With fast measurement, rugged design, interchangeable probes, and connectivity, it is ideal for quality control, inspection, and surface engineering.
32 people are viewing this product right now
🔥 3 items sold in last 3 hours
Designed for precision coating measurement, the PosiTector 6000 delivers 60+ readings per minute, supports interchangeable probes, and features built-in calibration and traceability. Its durable, waterproof housing and compliance with international standards make it suitable for harsh environments and industrial coating verification.
DeFelsko Coating Thickness Gauge PosiTector 6000
The PosiTector 6000 coating thickness gauge enables rapid, precise measurements of paint, plating, and other coatings on metals. With a color touchscreen, data logging, and multi-probe compatibility, it supports inspection, process control, and material validation in industrial and field conditions.
Features
Overview
| Specification | Value / Description |
|---|---|
| Measuring principle | Magnetic induction (ferrous) + Eddy current (non-ferrous) |
| Display / Interface | 2.8″ impact-resistant color touchscreen, keypad navigation |
| Protection class / rating | IP65 — weatherproof, dustproof, water-resistant |
| Power supply | 3 × AAA batteries |
| Dimensions (gage body) | 127 × 66 × 25.4 mm (5″ × 2.6″ × 1″) |
| Weight (without batteries) | 137 g (4.9 oz) |
| Measuring range | 0–60 mils (0–1500 µm) (depending on probe type) |
| Accuracy | ±(0.05 mil + 1%) up to 2 mil; ±(0.1 mil + 1%) above |
| Standards compliance | ISO 2178 / 2360 / 2808; ASTM B244, B499, D1186, D1400, D7091, E376, G12; others |
| Operating / surface temp. | Up to 49 °C (120 °F) |

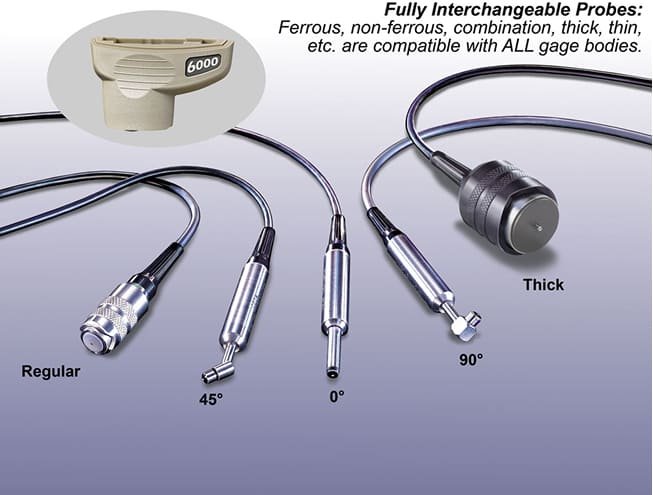

| Probe cable / types | Integral, cabled, right-angle, micro, high-range, duplex etc. |
| Warranty | 2 years for gage body and probe |
