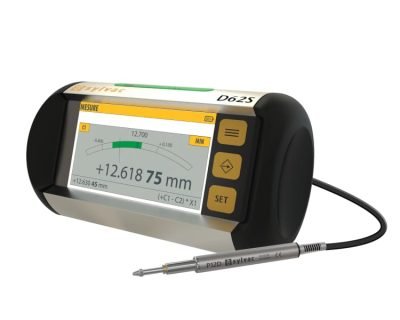

Digital Display D62S Sylvac

modern and compact with a 4.3’’ touch screen, it offers robust, shockproof construction and high-resolution precision for workshop use.

Features

Modern and Compact Design

Experience the modern and compact design of our digital display units, offering a sleek and portable solution for your measurement.

Intuitive Touch Screen Display

Enjoy the large 4.3’’ touch screen display with intuitive functions, making it easy to navigate and operate the device.

Robust and Shockproof Construction

Designed for workshops, our units feature a robust and shockproof construction with IP65 front panel, ensuring durability.

High Resolution for Precise Readings

Experience exceptional precision with a resolution of up to 0.00001 mm (0.01 µm), providing accurate.

Mobile Solution

The D62S Advanced offers a built-in battery with 8 hours of autonomy, allowing for portable and mobile use. Additionally, it features Bluetooth®.

Programmable for Customization

Our units can be easily programmed by PC, enabling customization and tailored functionality to meet your specific requirements.

	804-1062	804-1063
EAN	7640125715699	7640125712230
Model	D62S	D62S Advanced
Inputs	2x M8 for Sylvac absolute digital probes
Resolution (µm)	0.01
Max. error (µm)	P12D HR : 0.6
Repeatability (µm)	P12D HR : 0.08
Overall dimensions (mm)	170 x 90 x90
Weight (g)	613	665
Case	Aluminium and thermoplastic elastomer
Protection according to IEC 60529	IP40 (Front face : IP65)
Output data	USB (Device)/ RS232	Bluetooth®wireless technology/ RS232/USB (Device)
Indicator of the global tolerance		⬤
Battery		⬤
Time and date display (RTC)		⬤
