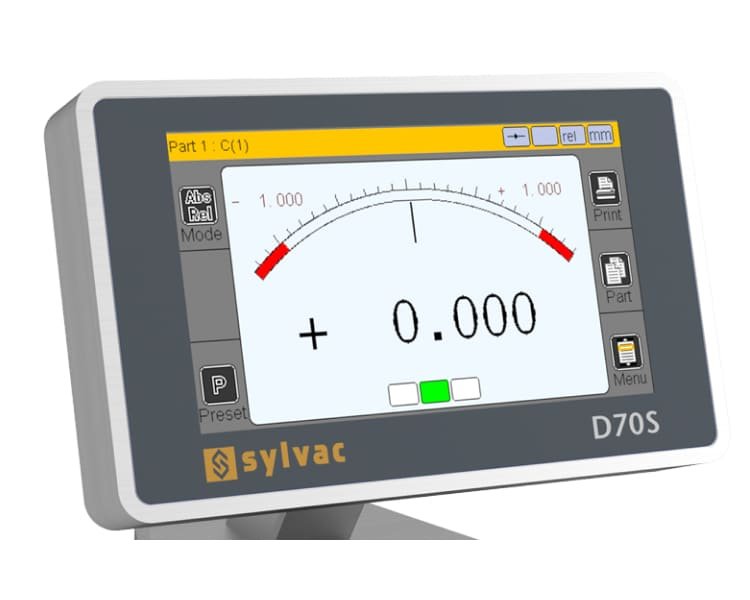

Digital Display D70S/H/I Sylvac

Modular compatibility with various probe types, and clear display options for easy reading. With high resolution and robust design, it’s ideal for workshop environments.

Features

Intuitive Operation

Our touch screen display units offer plug and play ease of use, requiring no additional drivers or software installation, making it hassle-free to connect and start measuring.

Versatile Modularity for Various Probe Types

Choose from three versions – D70S for Sylvac capacitive probes, D70I for Sylvac inductive probes (compatible with Tesa.

High Resolution for Precise Readings

Experience exceptional resolution, up to 0.00001 mm (0.01 µm) on the D70H version, ensuring accurate.

Effortless Data Transfer and Compatibility

Seamlessly transfer data via USB or RS232 outputs, with compatibility with Excel and SPC for easy integration into your workflow.

Robust and Workshop-Ready Design

Designed with an extremely robust aluminum housing and IP65 liquid-proof front panel, our units withstand workshop.

Clear Display Options

Analogic, tolerance limit, 2 values simultaneously, for a clear and easy-to-read representation of measurement values.

	804-2070	804-2072	804-2071
EAN	7640125719260	7640125718119	7640125716641
Type	D70S	D70H ¹	D70I
Overall dimensions (mm)	140x105x111
Weight (kg)	0.6
Case	Aluminium
Protection according to IEC 60529	IP65		IP40
Output data	USB / RS232	USB / RS232 (1×1)
Probes	Sylvac Capacitive probes	Heidenhain ST/MT probes (Mitutoyo & Magescale with adapter) / P12D	Sylvac Inductive probes (Tesa & Mahr ² compatible) / P12D
Programmable by PC	⬤
