Designed for demanding applications, the AF4915ZT offers flexible LED control and a built-in polarizer to reduce glare on reflective surfaces. The universal USB interface supports Windows and macOS through DinoCapture2.0 or DinoXcope software, delivering clear live video and still images.

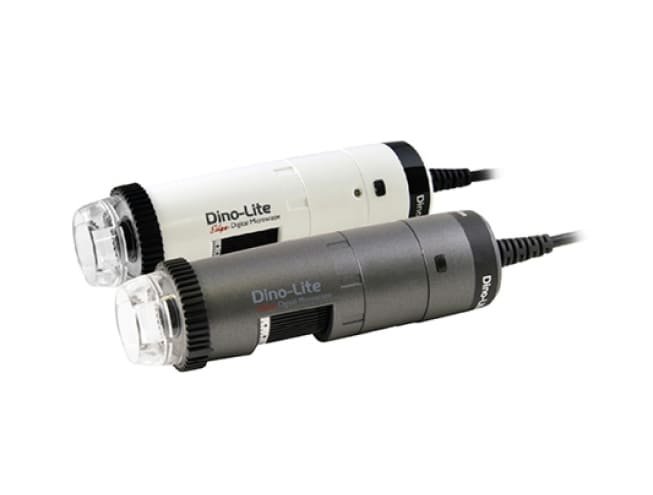

Dino-Lite AF4915ZT Digital Microscope

The AF4915ZT digital microscope is wireless-ready when paired with the optional WF-20 adapter and provides extended imaging capabilities with calibration and measurement tools. Its robust design and user-friendly software make it suitable for laboratory, industrial, or educational use.

Features

1.3 MP Edge Sensor

Delivers crisp imaging at 1280×1024 resolution for detailed inspections.

20×–220× Magnification

Wide magnification range for versatile applications.

Extended Depth of Field (EDOF)

Combines multiple images at different focus levels for greater depth.

Enhanced Dynamic Range (EDR)

Captures detail in both dark and bright regions.

Automatic Magnification Reading (AMR)

Software automatically detects magnification for simpler measurements.

Overview

Specification	Detail
Model	AF4915ZT Dino-Lite Edge
Sensor	CMOS 1.3 Megapixel (1280×1024)
Magnification Range	20×–220×
Frame Rate	Up to 30 fps
Interface	USB 2.0

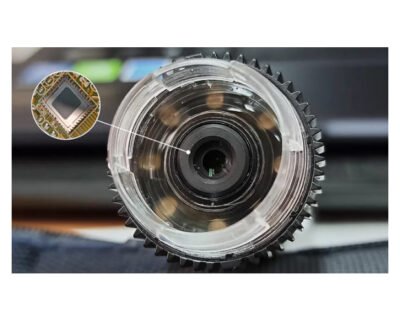

LED Lighting	8 white LEDs with flexible control
Polarizer	Built-in for glare reduction
Measurement / Calibration	Yes
Software Supported	DinoCapture2.0 (Windows), DinoXcope (Mac)
Operating Systems	Windows 7/8/10/11, macOS 10.11+
Working Distance	Standard (varies across magnification)

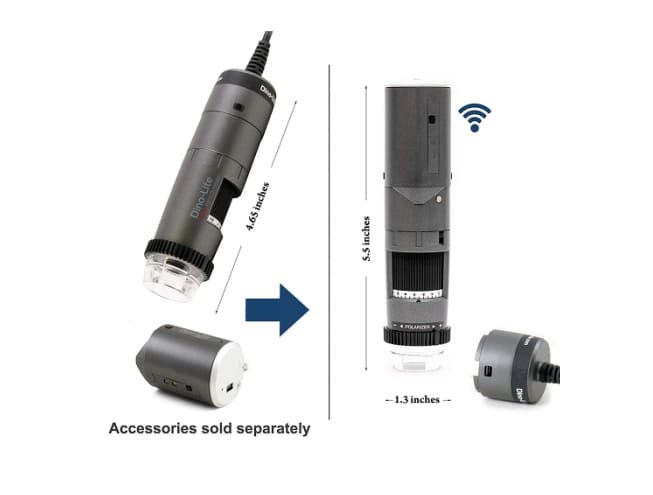

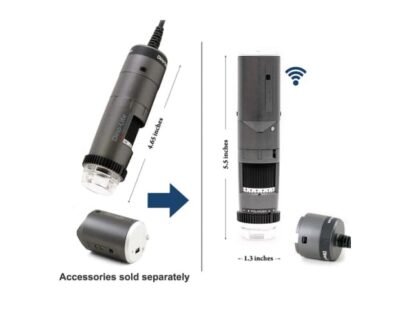

Dimensions	114 mm × 33 mm
Weight	111 g
Housing Material	Plastic/Composite

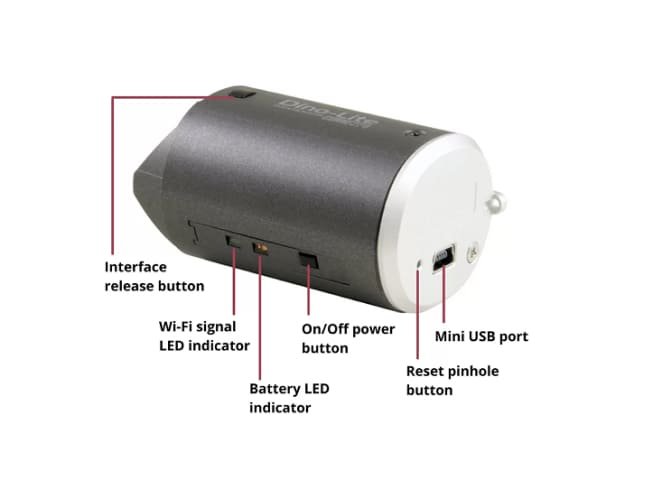

Wireless Ready	With optional WF-20 adapter
