Designed for laboratory, workshop, or industrial use, the MS25X provides smooth X-axis and Y-axis movement with up to 24 cm of diagonal adjustment. Its sizable rotating platform gives full sample orientation control during digital microscopy observation and documentation.

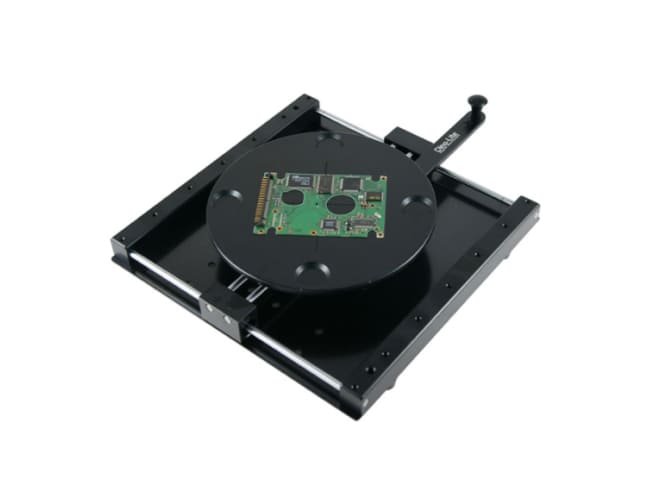

Dino-Lite Inspection Table MS25X

The Dino-Lite MS25X supports flexible sample positioning with both two-axis linear motion and full rotation in a robust inspection table format. Its broad movement range and solid construction help users carry out detailed, continuous inspection workflows with ease.

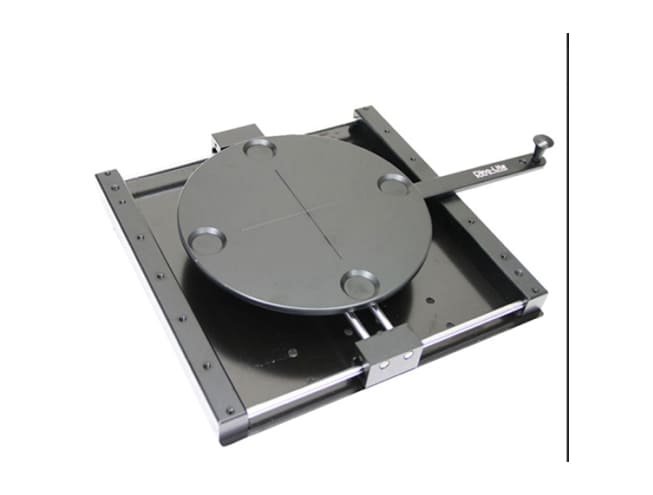

Dino-Lite Inspection Table MS25X

Features

01
Large-Sample Support

Designed as an excellent inspection table for larger samples.

02
Flexible Movement

Offers up to 24cm of diagonal movement.

03
Rotating Plate

Includes an 18cm rotating plate that allows you to freely spin your sample.

04
Easy Control

A supplied arm provides easy X-Y motion control for samples that are larger than the plate.

05
High Versatility

The table's features make it suitable for a wide range of inspection applications.

Overview

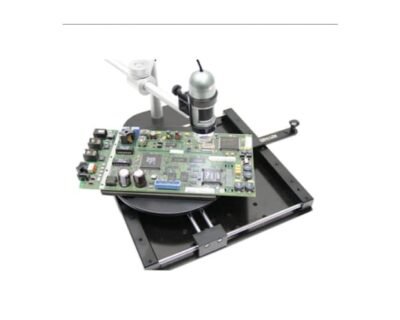

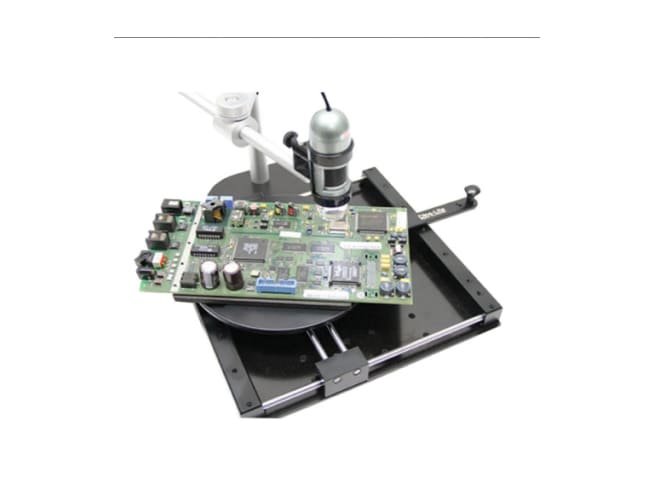

Dino-Lite Inspection Table MS25X (1)
SpecificationDetail
ModelDino-Lite MS25X Inspection Table
Movement TypeX/Y linear movement + 360° rotation
Diagonal Travel RangeUp to 240 mm
Rotating Plate Diameter180 mm (typical)
Dimensions250 × 240 × 50 mm (approx.)
ApplicationLarge sample inspection with Dino-Lite microscopes
Use CasePCB, electronics, mechanical parts, workshop inspection
