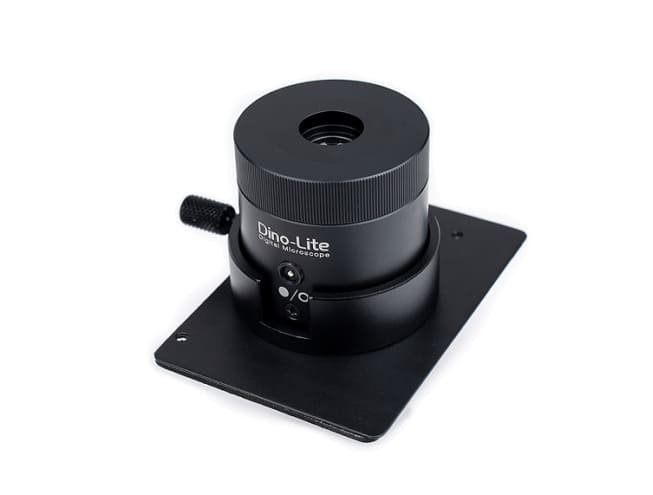

Dino-Lite Backlight Illuminator BL-CDW
The Dino-Lite BL-CDW Backlight Illuminator is an accessory stage providing both brightfield and darkfield illumination for Dino-Lite handheld digital microscopes. Brightfield lighting reveals specimen structure against a light background, while darkfield highlights edges and details against a dark background, enhancing contrast and clarity for transparent or reflective samples.
45 people are viewing this product right now
🔥 8 items sold in last 3 hours
Designed for microscopes with magnification above 100×, the BL-CDW adds flexible lighting modes under the sample. Its switchable modes help reveal surface detail and morphology with improved imaging quality. The compact backlight unit includes a power adapter and works with most Dino-Lite models except long working distance versions.
Dino-Lite Backlight Illuminator BL-CDW
The Dino-Lite BL-CDW enhances visual inspection by transmitting light through a specimen from below using brightfield or darkfield illumination. Brightfield shows internal form and structure, while darkfield accentuates profiles and edges of samples on a black background, making it useful for biological specimens, minerals, crystals, and more.
Features
Overview
| Specification | Value |
|---|---|
| Model | BL-CDW Backlight Illuminator |
| Brand | Dino-Lite |
| Lighting Types | Brightfield and Darkfield transmitted illumination. |
| Compatibility | Dino-Lite handheld microscopes (above 100×). |
| Dimensions | Approx. 5.1 cm (H) × 5.43 cm (Diameter). |
| Weight | Approx. 178 g. |
| Power | AC adapter included. |
| Warranty | Typically 2 years (Europe). |
| Use Cases | Enhancing contrast in transparent or structural specimens like biological samples, minerals, crystals. |
