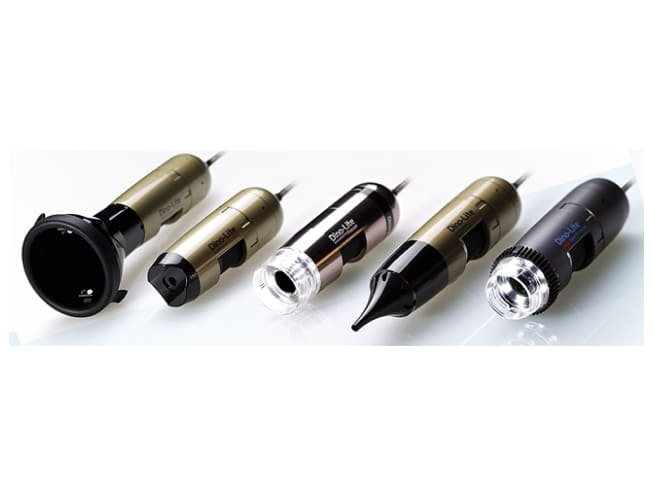

Dino-Lite AF7115MZT Handheld Digital Microscope
The Dino-Lite AF7115MZT is a high-resolution handheld digital microscope with a 5 MP CMOS sensor and a wide magnification range from approximately 20× to 220×. It delivers detailed imaging, flexible LED lighting control, and an integrated polarizer to reduce glare, ideal for inspecting reflective surfaces like metal, plastics, jewelry, and electronics.
9 people are viewing this product right now
🔥 5 items sold in last 3 hours
The Dino-Lite AF7115MZT offers professional imaging with a robust aluminum housing, USB 2.0 connectivity, and compatibility with both Windows and macOS. Flexible LED control and a built-in polarizer enhance contrast and clarity, while measurement and calibration features make this model suitable for quality control, education, and industrial inspection tasks.
Dino-Lite AF7115MZT Handheld Digital Microscope
The Dino-Lite AF7115MZT handheld microscope combines portability with powerful optics. Its 5 MP resolution and broad 20×–220× magnification capture fine details, while exchangeable end caps and extensive software support enable adaptable imaging. Wireless streaming is possible with an optional WF-20 adapter, making this model versatile for fieldwork and lab use.
Features
Overview
| Specification | Value |
|---|---|
| Model | Dino-Lite AF7115MZT |
| Optical Sensor | 5.0 Megapixel CMOS (2592 × 1944) |
| Magnification | 20× – 220× continuous |
| Frame Rate | Up to 30 fps |
| LED Lighting | 8 white LEDs with Flexible LED Control (FLC) |
| Polarization | Linear polarizer included |
| Lens Type | Glass with anti-reflection coating |
| Interface | USB 2.0 (UVC) |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac) |
| Body Material | Aluminum housing |
| Optional Wireless | Compatible with WF-20 Wi-Fi streamer (sold separately) |
| Includes | Microscope, calibration target, carry pouch, software CD, multiple end caps |
| Certification & Warranty | CE, FCC, RoHS; approx. 2-year European warranty |
