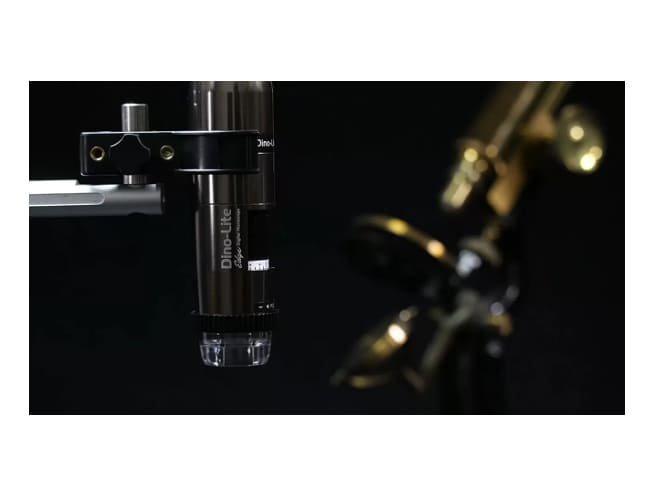

Dino-Lite AM7915MZT Edge microscope

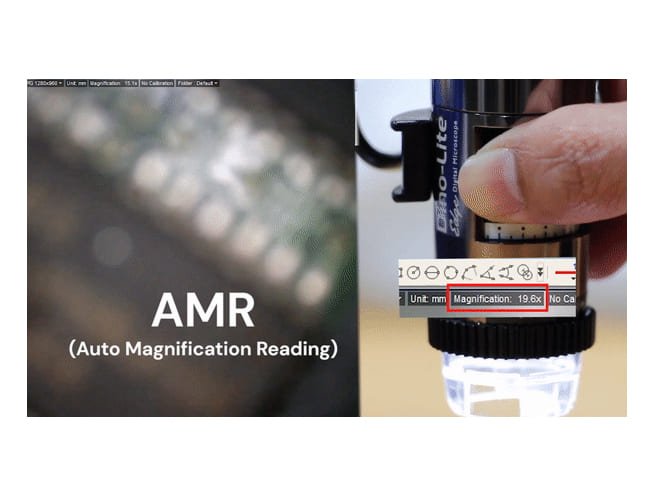

The Dino-Lite AM7915MZT Edge is a professional USB digital microscope featuring a 5 MP Edge sensor and 10×–220× magnification for high-detail imaging. It includes Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), and Automatic Magnification Reading (AMR). Adjustable LEDs and a built-in polarizer reduce glare on reflective surfaces.
8 people are viewing this product right now
🔥 7 items sold in last 3 hours

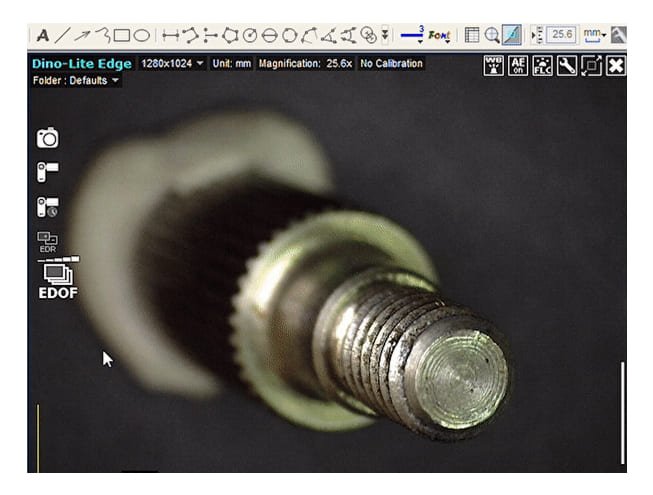

Designed for industrial, educational, and quality control applications, the AM7915MZT delivers 2592×1944 resolution and flexible illumination with switchable 8 LEDs. Built-in features such as Flexible LED Control (FLC), measurement, calibration, and Microtouch sensor enhance usability and precision during inspections.
Dino-Lite AM7915MZT Edge microscope
This rugged Dino-Lite Edge model includes a metal alloy housing, USB 2.0 connection, and advanced software support (DinoCapture/DinoXcope) for capturing and analysing images on Windows and macOS. Polarizer and depth enhancement make it ideal for shiny, irregular, or textured samples.
Features
Overview
| Specification | Detail |
|---|---|
| Model | AM7915MZT Edge |
| Resolution | 5 MP (2592 × 1944) |
| Sensor Type | CMOS |
| Magnification Range | 10× – 220× |
| Maximum Frame Rate | 30 fps |
| Lighting | White LEDs, 8 count; LED on/off switchable |
| Polarizer | Yes, linear adjustable polarizer included |
| Working Distance | Standard; depends on magnification (e.g. approx. 60.2 mm at 20×) |
| Lens / Optics | Glass lens with anti-reflection coating |
| Housing Material | Metal (aluminum alloy) |
| Cable Length | 1.8 m |
| Dimensions | 10.5 cm length × 3.2 cm diameter |
| Weight | 137-138 g |
| Interface / Connectivity | USB 2.0 |
| Special Features | EDOF, EDR, AMR, Flexible LED Control, Adjustable Polarizer, Magnification Lock, MicroTouch sensor |
| Measurement / Calibration | Yes |
| Software Compatibility | Windows (XP, Vista, 7, 8, 10, 11) & Mac OS (10.9+) |
| Included Accessories | Alternate front caps (diffuser, extension, open, side, etc.), calibration target, pouch, software CD/manual |
| Warranty | 2 years (Europe) |
