This high-speed microscope uses USB 3.0 SuperSpeed transfer to achieve up to 45 fps at moderate resolution and includes Flexible LED Control, built-in polarizer, interchangeable caps, measurement and calibration tools. Its robust metal housing and versatile software support make it ideal for industrial, quality control, and research environments.

Dino-Lite AM73915MZT Edge 3.0 digital microscope

Designed for precision imaging, the AM73915MZT combines cutting-edge optics with real-time imaging. Software support enables live video, still capture and measurement. Enhanced depth and dynamic range functions (Windows only) help visualize complex specimens with clarity, while the rugged build and ergonomic design ensure reliable performance.

Dino-Lite AM73915MZT Edge 3.0 digital microscope.

Features

01
5 Megapixel Sensor

High-resolution imaging for detailed inspection.

02
USB 3.0 SuperSpeed

Fast, uncompressed data transfer with up to 45 fps.

03
Magnification 10×–220×

Wide zoom range for versatile applications.

04

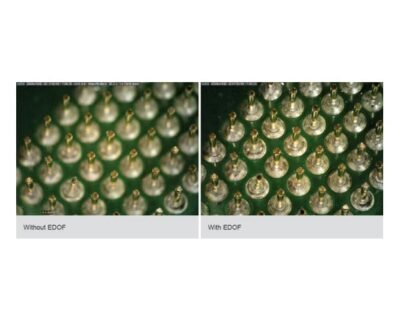

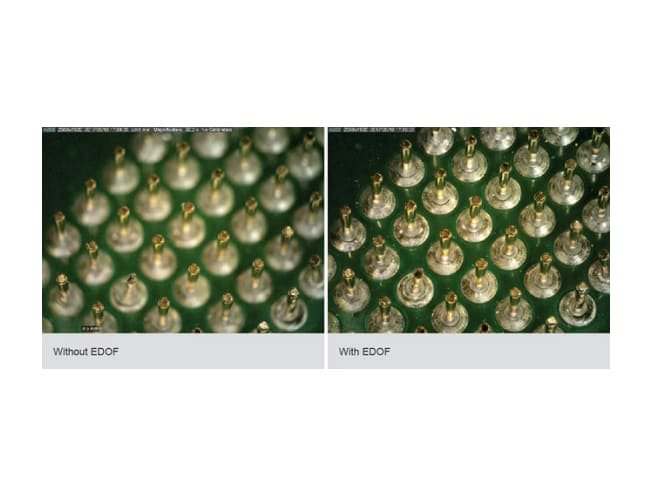

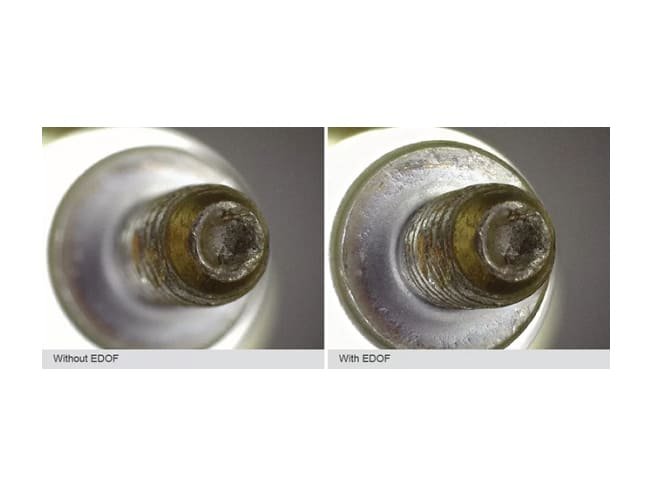

Advanced Imaging Modes (EDOF/EDR/AMR)

Extended depth of field, enhanced dynamic range, and automatic magnification reading (Windows only).

05
Flexible LED + Polarizer

Adjustable lighting and built-in polarizer reduce glare and improve contrast.

Overview

Dino-Lite AM73915MZT Edge 3.0 digital microscope.
SpecificationDetail
ModelAM73915MZT Dino-Lite Edge 3.0
InterfaceUSB 3.0 (SuperSpeed)
SensorCMOS, 5 MP (2560 × 1920)
Magnification Range10×–220×
Frame RateUp to 45 fps (1.3 MP) / 15 fps (5 MP)
LED Lighting8 white LEDs, adjustable
PolarizerYes
Advanced FunctionsEDOF, EDR, AMR, DPQ (Windows only)
Measurement & CalibrationYes
HousingDurable metal construction
Software SupportDinoCapture (Windows), DinoXcope (Mac)
Operating SystemsWindows 7/8/10/11; macOS 10.9+
Dimensions11.9 cm × 3.3 cm
Weight110 g
