Designed for ease of use, the AM4113ZT delivers live imagery up to 30 fps and includes 8 white LEDs for consistent illumination. The MicroTouch button lets you snap images instantly, and included measurement and calibration tools help document detailed observations on Windows or macOS.

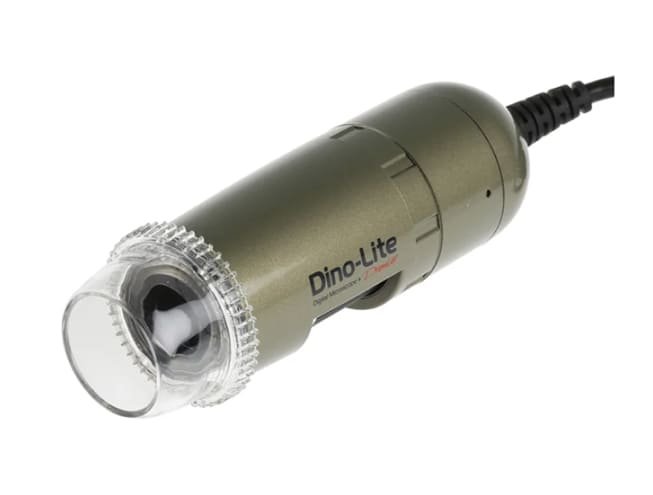

Digital Microscope Dino-lite AM4113ZT

This handheld digital microscope offers adjustable magnification from around 20×–50× and up to 200× at closer focus. With an adjustable polarization filter and USB 2.0 interface, it’s suited for diverse applications such as PCB examination, surface analysis, quality control, and hobbyist use.

Features

High-Resolution Sensor

1.3 Megapixels (1280 × 1024) CMOS delivers clear, detailed color images.

Magnification Range

Variable optical magnification up to 200×.

Adjustable Polarizer

Built-in polarizing filter reduces glare & reflections on reflective surfaces.

LED Illumination

8 white LEDs with software on/off control provide consistent lighting.

MicroTouch & Software

MicroTouch snapshot control, DinoCapture (Windows) and DinoXcope (macOS) with measurement & calibration.

Overview

Specification	Detail
Model Name	Dino-Lite AM4113ZT USB Digital Microscope
Image Resolution	1.3 MP (1280 × 1024)
Magnification	20×–50× optical, up to 200×
Sensor Type	Color CMOS
Frame Rate	Up to 30 fps
Interface	USB 2.0
Lighting	8 white LED lights (software control)
Polarizer	Yes, adjustable polarizer
MicroTouch	Yes — touch-sensitive snapshot button
Measurement & Calibration	Yes, via DinoCapture/DinoXcope software
Operating Systems	Windows & macOS supported
Dimensions	10.5 cm × 3.2 cm
Weight	105 g
Body Material	ABS plastic housing
