Force Gauges FGE Shimpo
The Shimpo FGE Force Gauges offer high-precision measurement with easy-to-read displays and durable construction. Designed for versatility, they provide accurate and reliable force readings for various industrial and technical applications. Ideal for both tension and compression testing.
9 people are viewing this product right now
🔥 4 items sold in last 3 hours
Force Gauges FGE Shimpo

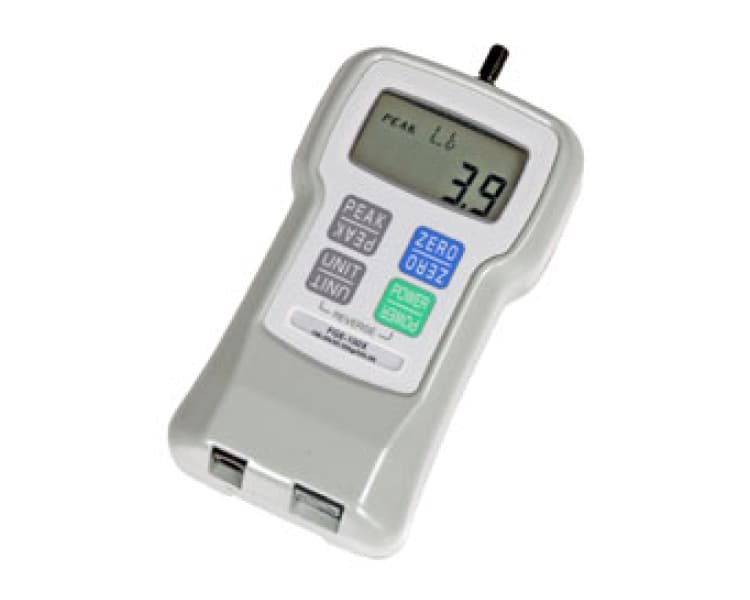

Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications. The Series FGE-X Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.
Features

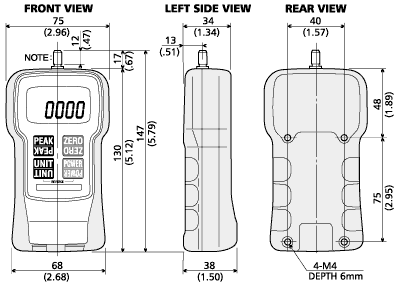

Dimensions

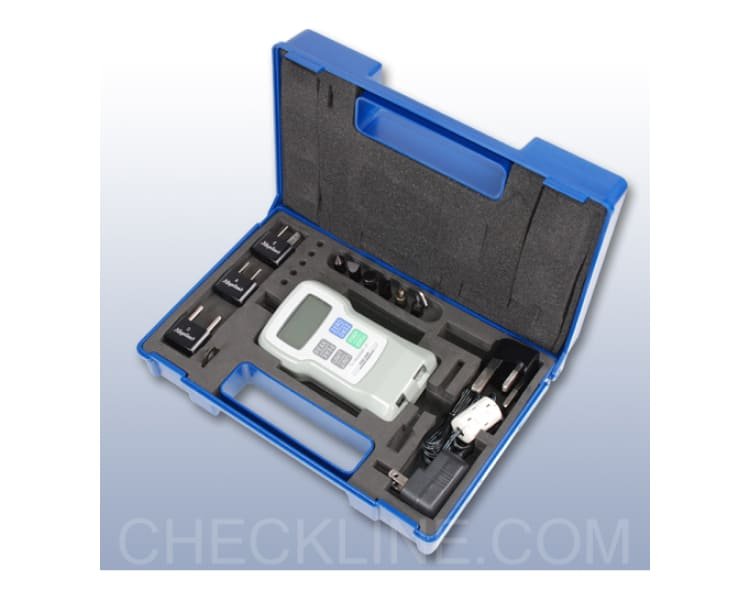

Complete Kit
Force Ranges
| Model | Capacity | Resolution |
|---|---|---|
| FGE-0.5X | 8.00 oz 200.0 g 2.000 N | 0.01 oz 0.1 g 0.001 N |
| FGE-1X | 16.00 oz 500.0 g 5.000 N | 0.01 oz 0.1 g 0.001 N |
| FGE-2X | 2.000 lb 1000 g 10.00 N | 0.001 lb 1 g 0.01 N |
| FGE-5X | 5.000 lb 2.000 Kg 20.00 N | 0.001 lb 0.001 kg 0.01 N |
| FGE-10X | 10.00 lb 5.000 Kg 50.00 N | 0.01 lb 0.001 kg 0.01 N |
| FGE-20X | 20.00 lb 10.00 Kg 100.0 N | 0.01 lb 0.01 kg 0.1 N |
| FGE-50X | 50.00 lb 20.00 Kg 200.0 N | 0.01 lb 0.01 kg 0.1 N |
| FGE-100X | 100.0 lb 50.00 Kg 500.0 N | 0.1 lb 0.01 kg 0.1 N |
Specifications
| Accuracy | ±0.2% full scale |
| Display | 4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension |
| Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec |
| Sampling Rate | 1000 times per second |
| Overload Protection | 200% of full scale |
| Power | Rechargeable Ni-Cad battery or AC through adapter/charger |
| Auto Power Shut-Off | Yes (not active if adapter/charge is in use) |
| Battery Life | 12 hours (when fully charged) |
| Recharge Time | Approximately 18 hours when fully discharged |
| Dimensions | 5.1″ L x 2.9″ W x 1.5″ H (130 mm x 75 mm x 38 mm) |
| Weight | 1 lb (450 g) |
| Approvals | CE approved |
| Warranty | 1 Year |
