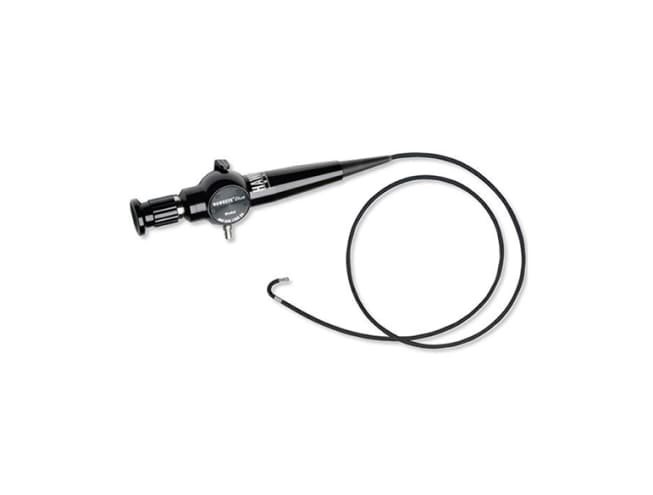

Hawkeye Blue Flexible Borescopes
The Hawkeye Blue Flexible Borescope delivers premium remote visual inspection with high-resolution fiber imaging and robust construction. Flexible articulation allows precise tip control for viewing inside complex assemblies such as engine blocks and pipes. Its super-tough tungsten sheath resists abrasion, while multiple diameters and lengths suit diverse industrial inspection tasks.
12 people are viewing this product right now
🔥 3 items sold in last 3 hours
Designed for professional industrial use, the Hawkeye Blue Flexible Borescope combines rugged flexibility with outstanding image clarity. With 2- or 4-way articulation and a watertight insertion tube, this borescope provides reliable remote inspection in tight spaces. Compatible with standard light sources, it adapts to demanding applications across sectors.
Hawkeye Blue Flexible Endoscopes

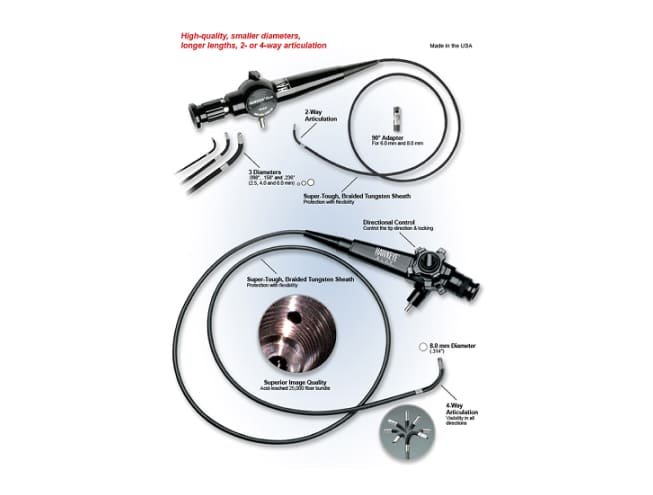

The Hawkeye Blue Flexible Borescope offers versatile inspection capabilities with its articulating tip and high-contrast imaging fiber bundle. Available in various diameters and lengths, its durable tungsten sheathing protects against damage. Ideal for rigorous industrial environments, this borescope enhances visibility in areas inaccessible by conventional tools.
Features
Overview
| Specification | Details |
|---|---|
| Diameters Available | 2.5 mm, 4.0 mm, 6.0 mm, 8.0 mm (varies by model). |
| Working Lengths | 0.7 m to 1.8 m depending on diameter. |
| Articulation Type | 2-way (±150° range) or 4-way on 8.0 mm model. |
| Field of View (FOV) | 60° (2.5 mm), 90° (4.0 mm), 45° (6.0 & 8.0 mm). |
| Fiber Count | 7,000 (2.5 mm), 18,000 (4.0 mm), 25,000 (6.0 & 8.0 mm). |
| Sheath Material | Braided tungsten outer protection. |
| Light Post | Standard ACMI light post. |
| Water Resistance | Watertight insertion tube resistant to fluids (industrial use). |
