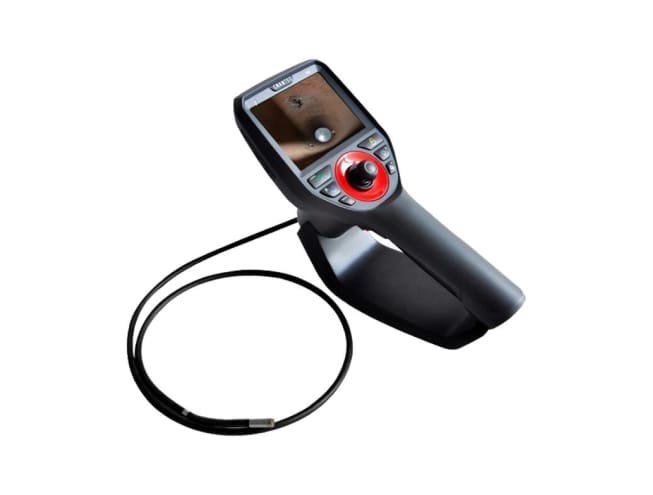

Coantec C40 Industrial Borescope
The Coantec C40 Industrial Borescope delivers Ultra HD 720P megapixel imaging through a 3.5-inch display and 360° articulating probe. Its modular insertion tubes allow rapid diameter swaps for versatile inspections. IP67 waterproof rating and robust LED lighting ensure reliable performance in industrial maintenance and defect analysis.
19 people are viewing this product right now
🔥 6 items sold in last 3 hours
Designed for demanding environments, the Coantec C40 series combines a user-friendly articulating videoscope with powerful software and adjustable illumination. Interchangeable probe options (2–6 mm) support detailed visual capture and recording, while rugged oil- and corrosion-resistant tubes enhance adaptability across manufacturing, energy, and aerospace applications.
Coantec C40 Industrial Borescope
The Coantec C40 Industrial Borescope features 360° all-way articulation, a high-definition camera, and quick tube replacement capability. Its integrated handheld design provides portability, real-time image/recording functions, and flexible visual inspection for internal cavities, machinery, and equipment with clear, reliable image quality.
Features
Overview
| Specification | Detail |
|---|---|
| Product Name | Coantec C40 Industrial Borescope (Articulating Videoscope) |
| Display | 3.5-inch HD screen (visible under daylight) |
| Display Resolution | 640 × 480 pixels |
| Camera Resolution | 160,000–1,000,000 pixels depending on probe size |
| Probe Diameter Options | φ2.0 mm, φ2.8 mm, φ3.8 mm, φ4.8 mm, φ6.0 mm |
| Insertion Tube Length | 1 m – 7 m depending on tube type |
| Field of View | Approx. 70° / 120° (varies with probe) |
| Depth of Field | 3–30 mm / 5–50 mm / 10–180 mm depending on diameter |
| Articulation Control | 360° full-way joystick control |
| Illumination | Adjustable front LED, optional rear fiber illumination |
| Digital Zoom | Real-time 4× zoom; 8× partial zoom in playback |
| Image/Video Format | Image: BMP/JPEG; Video: MP4 |
| Storage | 8 GB TF card included (up to 32 GB supported) |
| Output Port | HDMI for external display/video output |
| Waterproof Rating | Host: IP55; Probe: IP67 |
| Battery | Rechargeable lithium battery (≥4 hours runtime) |
| Operating Temp. | System: -10 °C – 50 °C; Probe: -20 °C – 60 °C |
| Weight (Host) | ≤ 0.55 kg |
| Standard Accessories | Videoscope, battery, charger, case, TF card, card reader, strap, manual |
