Hawkeye Pro MicroFlex Semi-Rigid Borescopes
The Hawkeye Pro MicroFlex Semi-Rigid Borescope features a semi-rigid Nitinol sheath with a 10,000-fiber imaging bundle, delivering high-quality image inspection in extremely tight spaces. With 0º and 90º viewing options and fixed focus, it suits industrial applications such as aerospace, automotive, and precision manufacturing.
49 people are viewing this product right now
🔥 8 items sold in last 3 hours

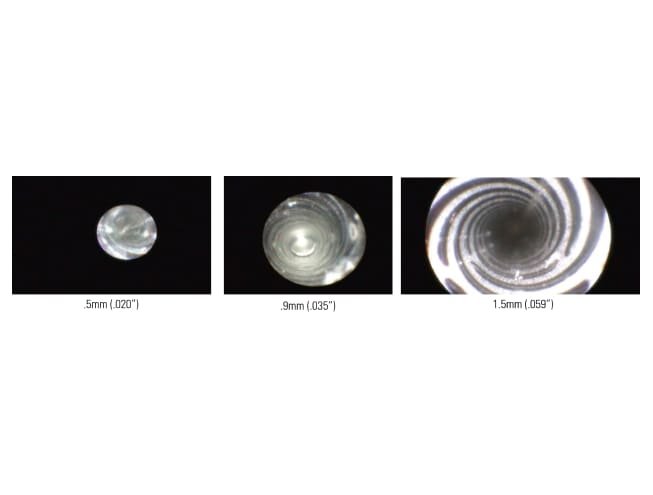

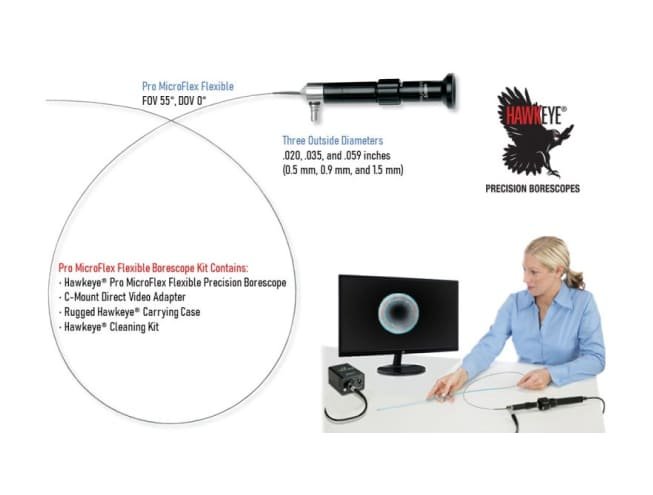

Designed for remote visual inspection of tiny bores, the Pro MicroFlex Semi-Rigid Borescope combines slim 0.9 mm and 1.5 mm diameters with robust Nitinol construction. It provides clear fiber-optic visualization, rugged performance, and video compatibility via C-mount adapters for versatile use.
Hawkeye Pro MicroFlex Semi-Rigid Borescopes

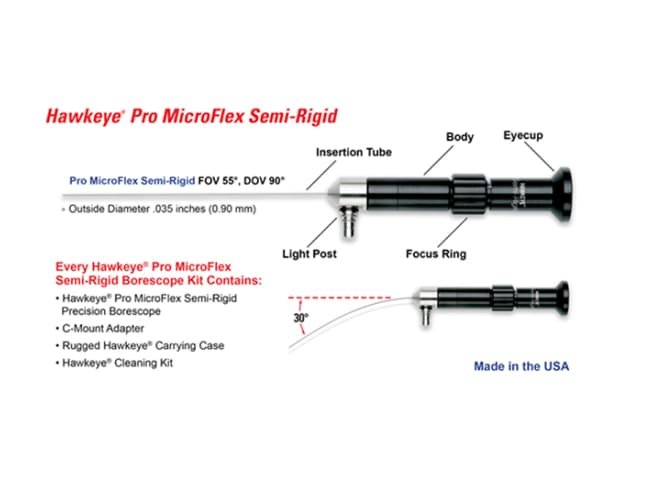

The Hawkeye Pro MicroFlex Semi-Rigid Borescope delivers precise inspection in hard-to-reach areas with its nitinol semi-rigid tube and 10,000-pixel image bundle. Available in straight and side-view variants, it’s ideal for non-destructive testing, quality control, and detailed bore examination.
Features
Overview
| Specification | Detail |
|---|---|
| Diameters Available | 0.9 mm (0.035″), 1.5 mm (0.059″) |
| Working Length | 150 mm (6 inches) |
| Direction-of-View (DOV) | 0º and 90º options |
| Field-of-View (FOV) | Approx. 55° |
| Depth-of-Field | 2 – 5 mm (0º); ~1 mm (90º) |
| Image Fibers | 10,000 fibers |
| Tube Construction | Nitinol semi-rigid sheath |
| Focus Type | Fixed focus lens set |
| Operating Temp. | 0 °C – 77 °C (32 °F – 170 °F) |
| Water Resistance | Watertight insertion tube up to 1 atm (14.7 psi) |
