The Pro MicroFlex series offers flexible borescopes in 0.5 mm, 0.9 mm, and 1.5 mm diameters for precision inspection of micro-manufactured parts, turbine cooling holes, and tiny valves. Their high-density fiber imaging bundles deliver detailed visuals even in narrow, twisting paths.

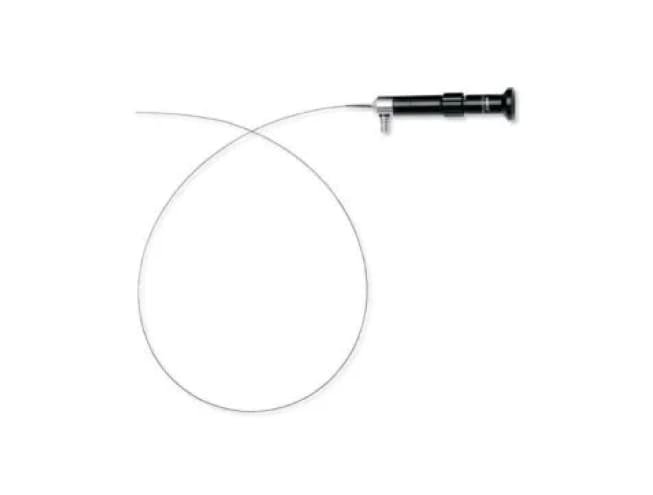

Hawkeye Pro MicroFlex Flexible Borescopes
Hawkeye’s Pro MicroFlex Flexible Borescopes combine slim, flexible design with robust fiber optics to access confined internal spaces. With field-replaceable eyepiece adapters and compatibility with C-mount video cameras, they support both direct viewing and video documentation. Perfect for quality control and defect detection in micro assemblies.
Features
Overview
| Specification | Detail |
|---|---|
| Product Name | Hawkeye Pro MicroFlex Flexible Borescopes |
| Probe Diameters | 0.5 mm, 0.9 mm, 1.5 mm |
| Working Lengths | 0.5 mm: 600 mm; 0.9 mm: 1000 mm; 1.5 mm: 800 mm |
| Direction of View | 0° (straight ahead) for all models |
| Field of View (FOV) | 0.5 mm & 0.9 mm: 55°; 1.5 mm: 70° |
| Pixel Count (Fiber) | 0.5 mm: 3000; 0.9 mm: 10,000; 1.5 mm: 30,000 |
| Depth of Field | 0.5 mm: 1–3 mm; 0.9 mm: 2–5 mm; 1.5 mm: 3–10 mm |
| Focus | Fixed focus lens set |
| Insertion Tube Material | Polyamide or plastic outer sheath |
| Bend Radius | 0.5 mm: 1.5″; 0.9 mm: 2.5″; 1.5 mm: 3.5″ |
| Operating Temp. | –18 °C to 77 °C (approx. 0 °F to 170 °F) |
| Water Resistance | Up to 1 atm (14.7 psi) watertight tube |
| Video Adapter | Compatible with C-mount adapter (sold separately) |
