Designed for precision internal inspection, this Hawkeye Pro Slim Prism borescope features durable stainless construction, a LightConcentrator light post, and independent focusing for crisp video or still imaging. With its dedicated prism optics, it reduces debris obstruction and enhances depth perception in complex geometries.

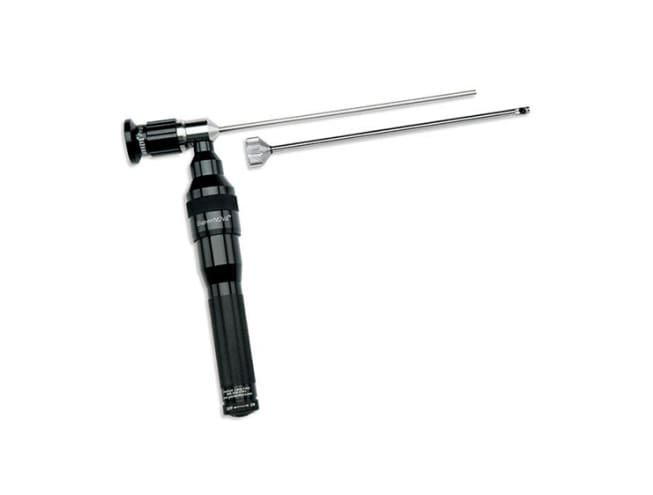

Hawkeye Pro Slim Prism Borescopes

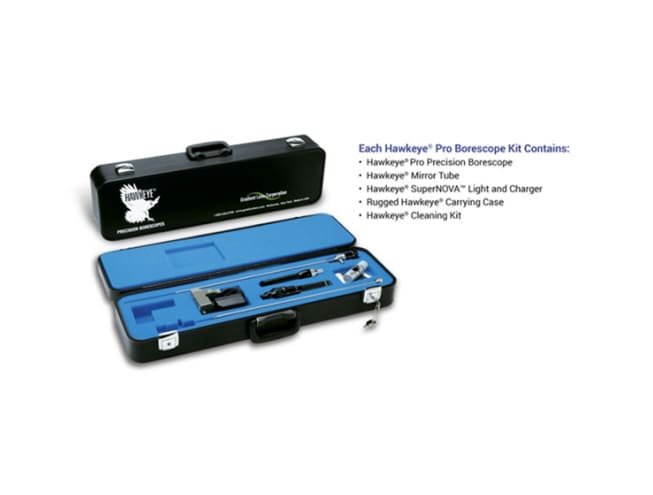

The slim 0.165″ (4.20 mm) Hawkeye Pro Slim Prism Borescope combines rugged build quality with superior optics and fixed 30° or 70° viewing angles. Included lighting and carrying accessories (when purchased as kits) make it a complete solution for industrial inspection of bore holes, welds, and castings.
Features
Overview
| Kategori | Item | Spesifikasi |
|---|---|---|
| Optics | Field-of-View | 70° |
| Direction-of-View | 30° and 70° Prism | |
| Relay Optics | e2 endoGRINs Glass Relay Lenses | |
| Magnification | Not fixed magnification (see chart) | |
| Mechanical / Construction | Length | 7”, 12”, 17” |
| Diameter | Scope: 0.165″ (4.20 mm) | |
| Lightpost | LightConcentrator ACMI configuration, Diameter 0.300″ | |
| Eyecup | Standard DIN, 32 mm diameter, with independent focusing ring | |
| Materials | Tube | 304 Stainless Steel |
| All Machined Parts | 303 Stainless Steel | |
| Eyecup & Focusing Ring | Aluminum, black anodized | |
| Front Window | AR coated optical glass | |
| Illumination Fiber | Optical glass | |
| Relay Optics | e2 endoGRINs gradient index glass lenses | |
| Environmental | Temperature Range | -20° to 120°C |
| Note 1 | Custom models available for up to 300°C (contact sales) | |
| Note 2 | Not designed for <0°C, but some customers use in liquid nitrogen at 77K | |
| Pressure | Designed for ambient pressure. Successfully used up to 500 PSI and down to 10⁻⁶ Torr (operator risk). | |
| Chemical Resistance | Tube is watertight, resistant to most hydrocarbons (oils, gasoline, hydraulic fluid, jet fuel). Avoid acids & strong alkalis (will damage optical window). |
