Height Gauge Z5 Sylvac

Introducing the Sylvac Z5 Height Gauge, a versatile device with a measuring range of 400 or 700mm, suitable for various measurements. Featuring intuitive functions, robust construction, and options.

Features

Versatile Measuring

The device has a measuring range of 400 or 700mm and is perfectly suited for the rapid measurement of heights, depths, thicknesses, internal and external diameters, center-to-center distances, etc.

User-Friendly

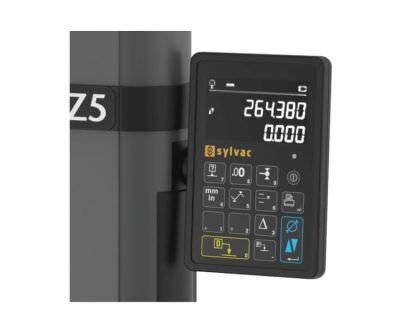

The device is extremely easy to use and comes with an XL display module with 0.001 mm resolution and intuitive functions. All adjustments are possible without tools, and the lateral probe holder allows.

Motorized and Manual Displacement

The device features a revolutionary crank handle offering the user the choice of manual or motorized carriage and travel (700mm version), on the 400mm version.

Robust and Ergonomic

The device boasts a cast iron base with an ergonomic handle with air cushion control knob, and the measuring force is electronically adjustable (0.75-1.5 N), providing accuracy and comfort.

Extended Measuring Range

The device has a measuring range of 411mm (719 with extension) or 711mm (1023mm with extension), enabling it to meet a wide range of measurement needs.

Complete Package

The device comes supplied with interchangeable Ø 4 mm ruby ball button and a large choice of accessories. It also features RS232 and USB interfaces.

Overview

	936-0400	936-0700
EAN	7640125696813	7640125713091
Measuring range (mm)	407	711
Measuring range with extension (mm)	719	1023
Max. Error (µm)	2.5 + L / 300	2.5 + L / 300
Repeatability RMPE (µm)	2	2
Frontal squareness deviation SMPE (µm)	5	8
Maximum resolution (mm)	0.0001	0.0001
Measuring force (N)	0.75 ÷ 1.5	0.75 ÷ 1.5
Autonomy (h)	12	12
Output data	USB / RS232 / Wireless	USB / RS232 / Wireless
Air cushion	⬤	⬤
Weight (kg)	21	24
Programmable by PC	⬤	⬤
Zero setting	⬤	⬤
Min / max / delta	⬤	⬤
PRESET function	⬤	⬤
Simultaneous display of diameters and centerlines	⬤	⬤
Thickness, chain and height measurements	⬤	⬤
Manual and motorised displacement		⬤
