The IPX-330 PLUS is a dynamic, handheld hardness tester conforming to ASTM A-956, offering users the standard device D and optionally devices DC, DL, D+15, C, G. It has full 360° measurement capability, large color TFT display (320×240), Bluetooth or RS-232 / USB data output options, auto shutdown to save battery, and storage for up to 10,000 readings. Accuracy is ±0.5% at 800 HL.

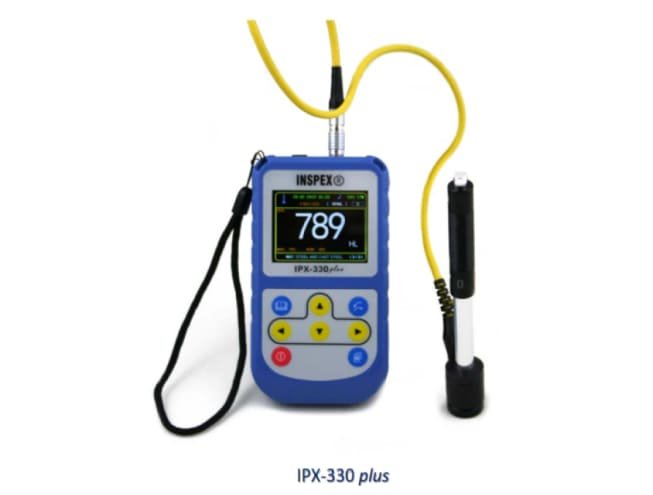

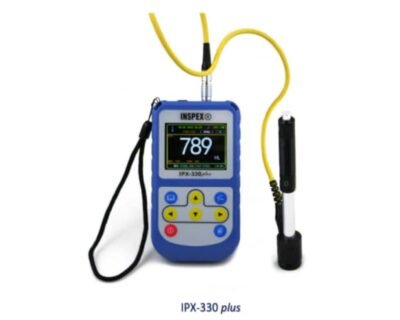

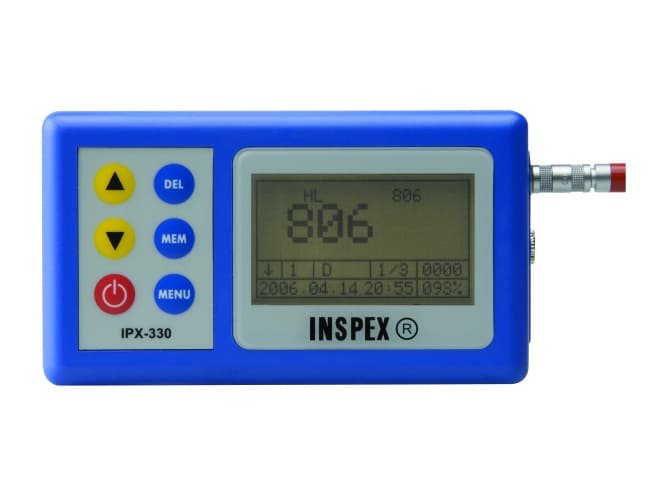

Inspex IPX-330 Portable Hardness Tester
Need a rugged, flexible hardness tester you can take anywhere? The IPX-330 PLUS gives you just that. Big, bright screen; quick-swap and auto-recognized impact devices; converts to all your favorite scales; stores up to 10,000 results; works at any angle—even upside down. It’s made for tough job sites, frequent inspections, and people who want precision without fuss.
Features
Overview
| Specification Item | Value / Detail |
|---|---|
| Measuring Range | 174-960 HL |
| Accuracy | ±0.5% at 800 HL |
| Impact Device (Standard) | Device D included; optional: DC, DL, D+15, C, G |
| Display | Color TFT, 320×240 pixels |
| Conversion Scales | HRB, HRC, HV, HB, HS, Tensile Strength based on HL value |
| Memory Capacity | Up to 10,000 readings onboard |
| Data Output Options | Bluetooth printer; RS-232 / USB or cable transfers |
| Auto Features | Impact device recognition; auto shutdown |
| Conformance / Standard | ASTM A-956 |
| Displayed Units | HL; converted display in HRB, HRC, HV, HB, HS etc. |
| Power / Batteries | Standard delivery includes batteries; auto-off to conserve power. |
| Operating Conditions | Any angle measurement; suitable for field/onsite use. |
