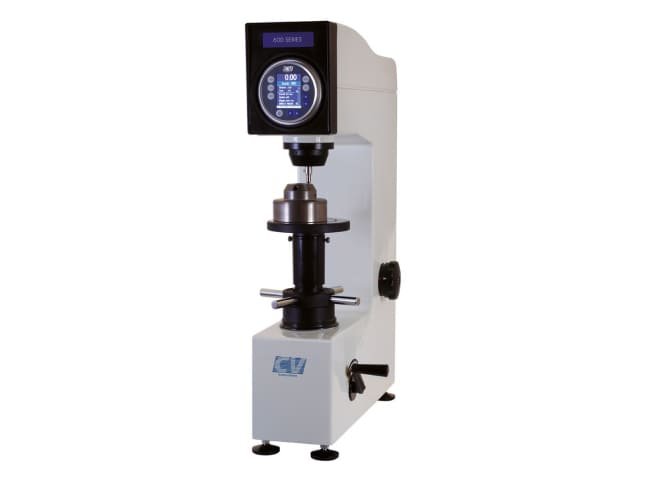

Rockwell Basic Digital Hardness Tester 600MBDL

The CV-600MBDL Rockwell Digital Hardness Tester combines accuracy, durability, and affordability in a versatile design. Equipped with a full-colour OLED display, advanced conversion functions, and motorized testing (MBDL models), it supports all Rockwell scales and conforms to EN-ISO 6508 and ASTM E-18, making it ideal for industrial hardness testing applications.

17 people are viewing this product right now

🔥 5 items sold in last 3 hours

Category: Hardness Testing

Brand: CV Instruments Estimated delivery:June 15, 2026 - June 17, 2026

Description

The Rockwell Basic Digital Hardness Tester 600MBDL series offers direct readings in Rockwell scales (HRA, B, C, D, E, F, G, K, L, M, P, R, S, with HRN, T, W, X, Y on Superficial models). Test loads range from 10 kgf preload with 60, 100, 150 kgf main load (Rockwell) and 3 kgf preload with 15, 30, 45 kgf main load (Superficial). Dwell time is adjustable from 0–99 seconds, with load force applied via lever (BDL) or motorized system (MBDL). Accuracy conforms to EN-ISO 6508 and ASTM E-18 standards.

Rockwell Basic Digital Hardness Tester 600MBDL

The CV-600MBDL Rockwell tester is engineered for reliability in industrial environments. Featuring a multi-function OLED display, it provides clear measurement data with statistical functions, conversion to Brinell and Vickers, Go/No-Go settings, and memory storage. With both manual and motorized operation modes, it accommodates various specimen sizes and includes accessories for immediate testing across Rockwell scales.

Features

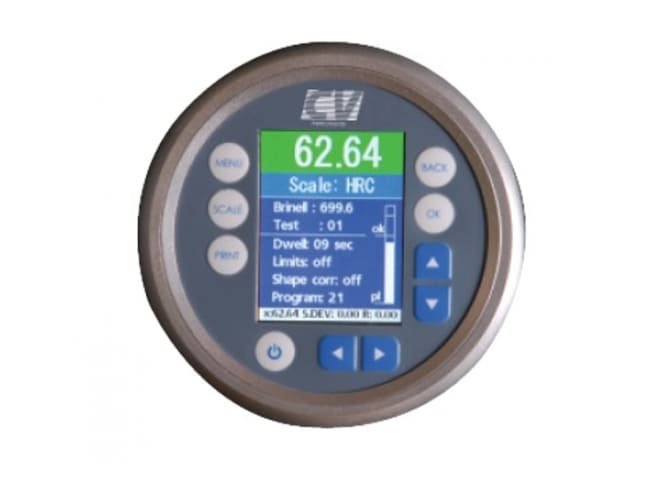

Full-Colour OLED Display

Clear, multifunctional interface with advanced functions.

Scale Conversion

Converts to Brinell, Vickers, and Rockwell scales.

Wide Rockwell Range

Direct readings across standard and superficial Rockwell scales.

Motorized or Manual Models

BDL (manual load), MBDL (motorized load system).

Advanced Data Handling

RS-232/USB output, printer compatibility, statistics, and memory (99 readings, 50 program settings).

Overview

Attribute	Specification
Rockwell Scales	A, B, C, D, E, F, G, K, L, M, P, R, S, V
Superficial Scales	HRN, T, W, X, Y (CV-600MBDL/S)
Resolution	0.1 Rockwell unit
Loads (Rockwell)	10 kgf preload / 60, 100, 150 kgf main load
Loads (Superficial)	3 kgf preload / 15, 30, 45 kgf main load
Force Application	Manual lever (BDL) / Motorized system (MBDL)
Test Cycle	Manual (BDL) / Motorized with manual preload (MBDL)
Dwell Time	0–99 sec, adjustable (1 sec step)
Standards	EN-ISO 6508, ASTM E-18
Specimen Capacity	Vertical: 170 mm; Horizontal: 165 mm
Surface Testing	External and cylindrical surfaces down to Ø3 mm
Display	OLED full-colour multifunction
Data Output	RS-232, USB, printer
Power Supply	220V/50Hz (MBDL); Non-powered for 600A
Dimensions	150 × 485 × 700 mm (W×D×H)
Weight	Approx. 85 kg
Standard Delivery	Diamond indenter, 1/16” ball indenter, hardness test blocks (HRC ±60, HRC ±25, HRB ±85), spare balls, flat & V anvils, test tables, accessories case, certificate, manual
Optional Accessories	Reference blocks, certified indenters, clamping nose, pedestal spot anvils
