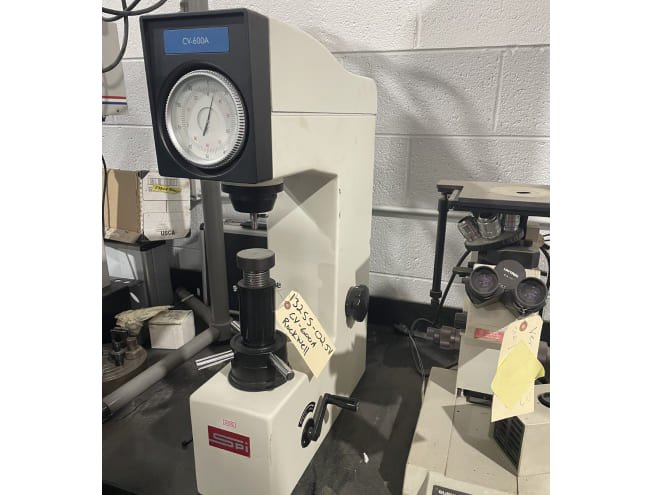

CV Instruments Rockwell Hardness Tester CV-600A/MA/S
The CV-600A/MA/S Rockwell Hardness Tester combines durability, precision, and ease of use at an affordable price. With rugged construction, direct scale readings, and conformity to EN-ISO 6508 and ASTM E-18, it ensures reliable performance in both standard and superficial Rockwell testing applications, suitable for various industrial environments.
8 people are viewing this product right now
🔥 11 items sold in last 3 hours
The CV-600A/MA/S series offers highly accurate Rockwell hardness testing with robust construction designed for long-term durability. Operators benefit from easy load force selection, motorised or manual testing cycles, and compatibility with both standard and superficial Rockwell scales. Ideal for laboratories and production facilities requiring precision and reliability.
CV Instruments Rockwell Hardness Tester CV-600A/MA/S
Built for versatility, the CV-600A/MA/S provides direct Rockwell scale readings with optional superficial scales. Features include electronic dwell time control, motorised testing procedure (MA/S models), and a large specimen capacity. Its conformance to international standards ensures dependable results, while the included accessories make it ready for immediate testing use.
Features
Overview
| Specification | Details |
|---|---|
| Model | CV-600A / CV-600MA / CV-600MA-S |
| Rockwell Scales | A, B, C, F (CV-600A / CV-600MA) |
| Superficial Scales | HRT, HRN (CV-600MA/S) |
| Hardness Resolution | 1 Rockwell unit |
| Test Loads (Rockwell) | 10 kgf preload / 60, 100, 150 kgf main load |
| Test Loads (Superficial) | 3 kgf preload / 15, 30, 45 kgf main load |

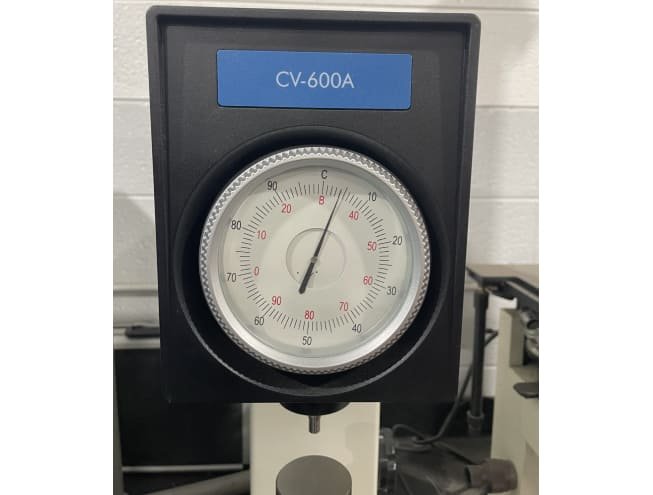

| Display | Dial indicator |
| Force Application | Manual lever (CV-600A) / Motorised system (CV-600MA & 600MA/S) |
| Test Cycle | Manual (CV-600A) / Motorised with manual preload (CV-600MA & 600MA/S) |
| Dwell Time | Manual (600A) / Automatic 2–99 sec, 1 sec steps (600MA/S) |
| Data Output | None |
| Accuracy Standard | EN-ISO 6508, ASTM E-18 |
| Specimen Accommodation | Vertical 170 mm (6.7”) / Horizontal 165 mm (6.5”) |
| Specimen Access | External surfaces |
| Power Supply | None (CV-600A) / 220V 50Hz (CV-600MA & 600MA/S) |
| Dimensions (W×D×H) | 150 × 485 × 700 mm |
| Machine Weight | Approx. 85 kg |
