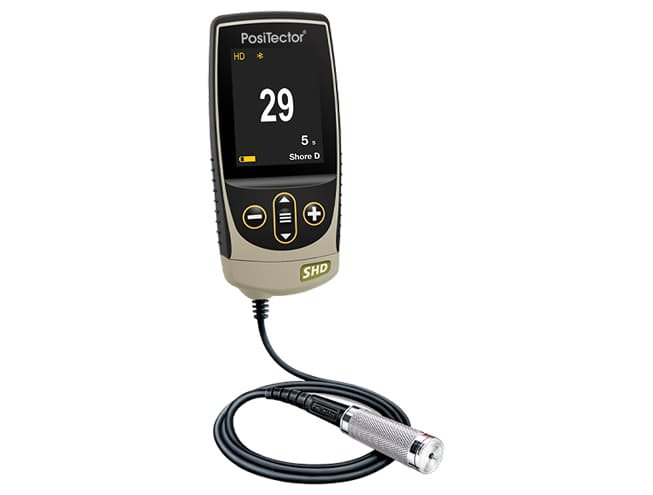

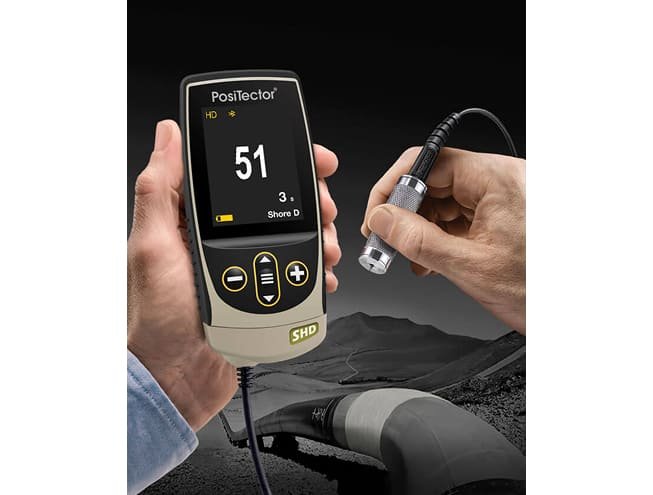

DeFelsko PosiTector SHD Shore Hardness Durometer

DeFelsko PosiTector SHD Shore Hardness Durometer

The PosiTector SHD is a handheld electronic Shore durometer designed to measure hardness on non-metallic materials such as rubber, polymers, and hard plastics. Available in two probe types (Shore A & Shore D), it features a weatherproof IP65 enclosure, a large touchscreen, configurable measurement timer, and connectivity via USB, WiFi, or Bluetooth—ideal for QC in field or lab.

8 people are viewing this product right now

🔥 7 items sold in last 3 hours

Category: Hardness Testing

Brand: Defelsko Estimated delivery:May 27, 2026 - May 29, 2026

Description

The SHD uses interchangeable probes (A or D) to target soft or harder materials. It supports standardised test durations with on-screen countdown, and has Auto-Ignore mode to omit readings outside the valid range (below 20 or above 90) as per ASTM/ISO standards. Data logging, HiLo alarms, statistics mode (min, max, average, standard deviation) and calibration with traceable test block are included.

DeFelsko PosiTector SHD Shore Hardness Durometer

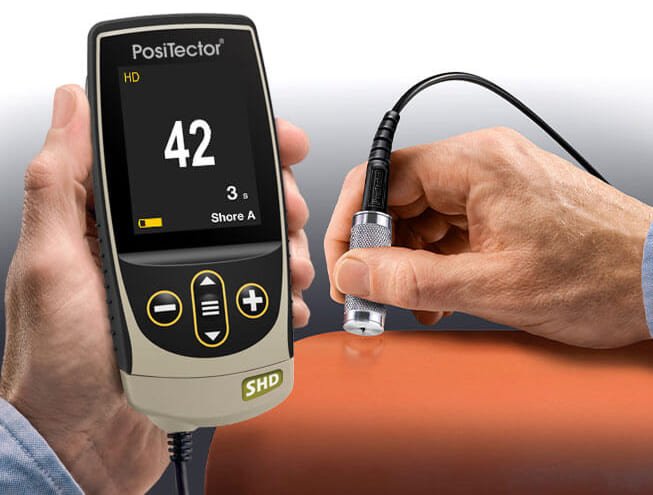

Need fast, reliable hardness readings without worry about weather or environment? The PosiTector SHD delivers exactly that. Just select your scale (A or D), press firmly, hold through the on-screen timer, and you get cleaned-up digital value. It ignores out-of-range errors, stores batches, lets you connect wireless or via USB, and fits in your belt. Tough, smart, and built for use wherever you are.

Features

Dual Probes: Shore A & Shore D

Two probe types to handle soft elastomers/rubbers (A) or harder plastics/epoxies (D), each with different indentor tip/spring.

User-Adjustable Timer + On-Screen Countdown

Ensures conformity to test standards by timing each measurement (e.g. 3 seconds or as required).

Auto-Ignore Mode

Automatically ignores readings outside the valid hardness range (below 20 or above 90) per international standards so data remains valid.

Sturdy, Field-Ready Design

IP65 rating (weather/dust/water resistant), hardened indentor, protective holster; small and light enough for field use.

Connectivity & Data-Handling

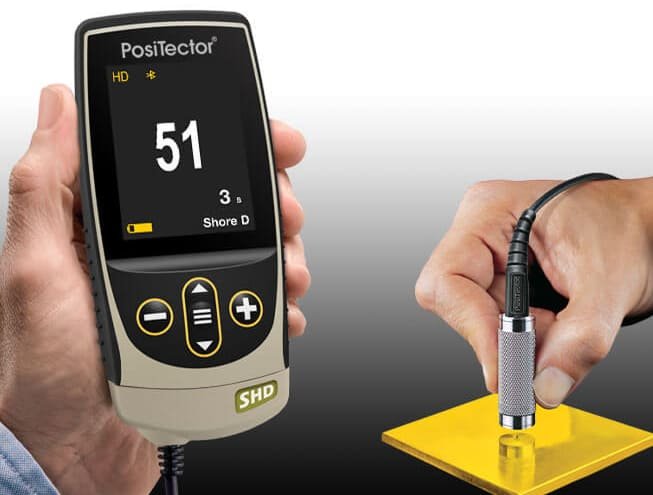

USB, WiFi, Bluetooth for data export; internal memory; statistics mode; test block included; calibration certificate traceable to NIST.

Overview

Spec Item	Value / Detail
Scales Available	Shore A; Shore D
Measurement Range	0-100 Shore units
Resolution	0.1 units
Accuracy	±1 Shore unit typical
Body Size	137 × 61 × 28 mm (5.4″ × 2.4″ × 1.1″)
Body Weight (without batteries)	185 g (6.5 oz)
Standards Conformance	ASTM D2240; ISO 868 / 7267 / 7619; DIN 53505
Display	Color touchscreen; large size for readability; menu with on-gauge help
Auto-Ignore Limits	Below 20 or above 90 (dependent on scale) ‒ invalid range ignore mode per standard
Power / Battery	Uses 3 AAA batteries; powers down after inactivity; USB connection for power/data
Included Accessories	Test block; protective rubber holster; lens shield; carrying case; calibration certificate
