EW-150 Series Premium Multi-Scale Hardness Tester (Macro Vickers, Knoop & Brinell)

EW-150 Series Premium Multi-Scale Hardness Tester (Micro/Macro Vickers, Knoop & Brinell)

The EW-150 Series hardness tester delivers high precision and versatility, offering micro and macro Vickers, Knoop, and Brinell testing. Featuring closed-loop load control, digital display of five-digit hardness values, and variable loading speeds, it ensures repeatability and accuracy for both research and industrial quality assurance.

40 people are viewing this product right now

🔥 4 items sold in last 3 hours

Category: Hardness Testing

Brand: Eseway Estimated delivery:May 27, 2026 - May 29, 2026

Description

EW-150 Series combines micro/macro hardness scales (Vickers, Knoop, Brinell) with a closed-loop system and force feedback. It supports very low loads (for micro-indentation) up to higher forces needed for tougher materials, with a highly accurate, digital readout of the indentation and hardness. Equipped with programmable test cycles, built-in conversions between scales, and compliance with international hardness standards, it’s suitable for metallographic labs and production environments.

EW-150 Series Premium Multi-Scale Hardness Tester (Micro/Macro Vickers, Knoop & Brinell)

Take your hardness testing to the next level with EW-4000 Series. Choose your force, pick your scale, and let the automatic turret and precise optics take over. Whether inspecting tiny indentations or larger Brinell impressions, the load-cell, closed-loop feedback, and robust stage ensure every test is consistent. Add in video display, data output, and optional motorised stages—this tester makes hard work easier.

Features

Closed-Loop Load-Cell & Force Feedback

Ensures accurate forces are applied, improving consistency and reducing variation in hardness values.

Multiple Hardness Scales & Load Ranges

Supports Vickers, Knoop, Brinell; loads from micro-force (e.g. 20 gf) up to macro (50 kgf) depending on model.

Automatic Turret with Multiple Objectives/Indenters

Allows switching without manual realignment; supports micro & macro measurements efficiently.

Sturdy Optics & Video Measurement System

Digital eyepiece (15×), objectives (5×,10×,20× etc.), optional CCD systems for video / filar measurement to improve readability.

Data Output & Built-in Printer

Includes built-in thermal printer, RS-232 output; menu driven operation with display of hardness values, diagonals, statistics.

Overview

Specification Item	Unit	EW-4000 Series Typical Values
Test Force / Load Range Variants	—	EW-4300: Vickers/Knoop 1-30 kgf; EW-4301: Brinell 1-31.25 kgf; EW-4302: Macro Vickers/Knoop 300 gf-30 kgf; EW-4303: Micro/Macro Vickers/Knoop 20 gf-30 kgf; EW-4304: Micro/Macro Vickers/Knoop/Brinell 20 gf-31.25 kgf; EW-4500 etc. up to 50-62.5 kgf.
Indenters	—	Vickers 136°, Knoop 172.5°×130°, Brinell 1 & 2.5 mm
Objectives	—	5×, 10×, 20× standard; optional 40×, 60×

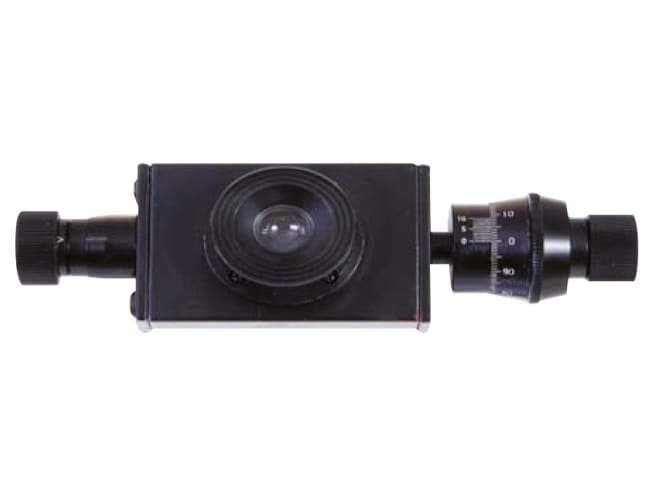

Eyepiece	—	Electronic eyepiece microscope 15× magnification
Stage Options	—	Manual X-Y; Motorised X-Y; Motorised X-Y-Z; optional video CCD systems
Display / Output	—	Built-in thermal printer; RS-232 bidirectional; 5-digit hardness value; menu for scale, load, date/time etc.
Accuracy	—	< ±1 % for forces from about 100 gf to max; < ±1.5 % for forces below 100 gf.
Display Resolution	—	0.1 units for HV, HK, HB
Dwell Time Setting	seconds	Default 10 s; user-defined 1-60 s
Capacity (Specimen Size)	mm	Vertical specimen height up to 160 mm; horizontal reach 135 mm from center.
Stage Travel	mm	Stage 100 × 100 mm travel 20 × 20 mm reading 0.01 mm
Light Source	—	Halogen 12 V, 30 W with dimmable control; green filter included
Operating Conditions	°C / %RH	5-40 °C; Humidity 10-90 % non-condensing
Dimensions	mm	220 × 540 × 650 mm
Weight	kg	51 kg
Power Supply	—	110/220 V, 50/60 Hz, single phase
