CV instruments Magnetic Rockwell Tester CV-MR01
The CV Instruments Magnetic Rockwell Tester CV-MR01 delivers reliable hardness measurements directly on large, immovable workpieces. With its 350kgf+ magnetic base, it eliminates the need for external support while ensuring accuracy comparable to bench Rockwell testers. Compact, durable, and precise, it is ideal for industrial field applications.
24 people are viewing this product right now
🔥 9 items sold in last 3 hours

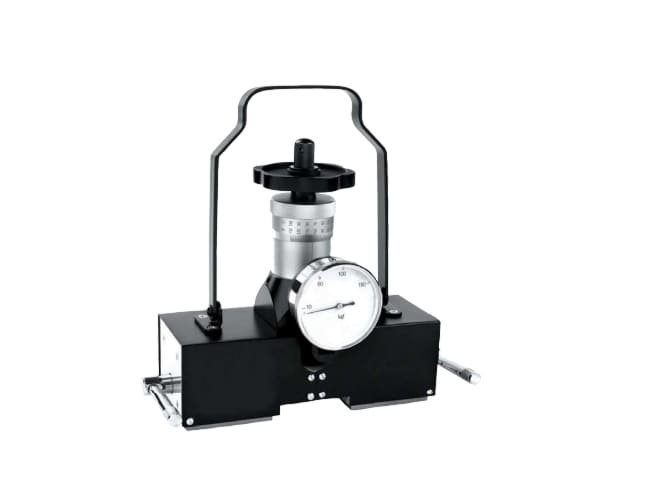

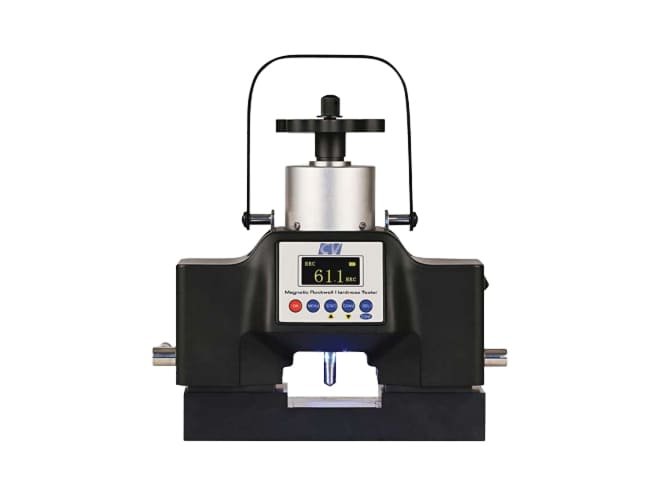

CV Instruments Magnetic Rockwell Tester CV-MR01
With robust construction and exceptional accuracy, the CV-MR01 Portable Magnetic Rockwell Tester is the ideal solution for on-site hardness testing of large assemblies. From moulds and pipelines to steel plates and pressure vessels, it provides dependable measurements across 15 Rockwell scales, ensuring consistent performance wherever traditional testing is impractical.
Features
Overview
| Specification | Details |
|---|---|
| Initial Test Force | 10 kg |
| Rockwell Test Forces | 60 kg, 100 kg, 150 kg |
| Indenter Types | 120° diamond cone, 1/16” carbide ball |
| Force Application | By screw |
| Maximum Magnetic Force | >350 kgf |
| Test Range | Rockwell scales HRC, HRB, HRA, etc. (15 scales) |
| Resolution | 0.5 HR |
| Accuracy | Conforms to ISO 6508 and ASTM E18 |
| Minimum Specimen Size | 60 mm × 180 mm |
| Net Weight | 4.9 kg |
| Package Weight | 7.4 kg |
