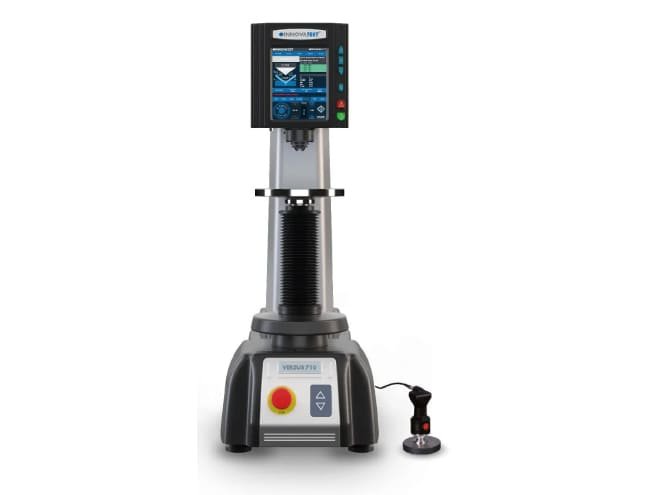

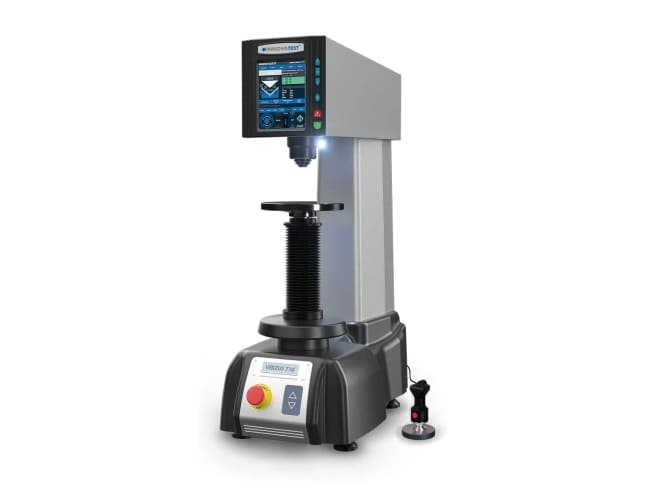

Rockwell and Brinell Hardness Tester Verzus 710RS(B) Series

The Innovatest Verzus 710RS(B) is a bench hardness tester combining Rockwell and Brinell scales and built with a rigid C-frame. It operates under a closed-loop load cell system and optical depth measurement with 0.1 µm resolution. Test forces range from 1 kgf to 250 kgf, delivering full test cycles in as little as 13 seconds.

13 people are viewing this product right now

🔥 8 items sold in last 3 hours

Category: Hardness Testing

Brand: Innovatest Estimated delivery:May 27, 2026 - May 29, 2026

Description

The Verzus 710RS(B) meets or exceeds ISO, ASTM, and JIS standards. It supports Rockwell, Superficial Rockwell, Brinell (RSB model), plus HVT & HBT, and plastic scale per ISO 2039. Test forces include preload of 3 kgf and 10 kgf; main loads 15, 30, 45, 60, 100, 150 kgf. Brinell test forces from 1 to 250 kgf. Features include depth measurement via optical system, direct reading to 0.1 µm, and optional motorized spindle for positioning heavy workpieces.

Rockwell and Brinell Hardness Tester Verzus 710RS(B) Series

Want precise hardness tests fast? The Verzus 710RSB gives you Rockwell and Brinell options, fast cycles (13 seconds), and ultra-fine depth reading (0.1 micron). Touchscreen display, integrated software, and optional motorized spindle make testing easier — even for large or awkward parts. Great investment for labs or QA workshops needing reliable, versatile hardness measurement.

Features

Wide Force Range (1-250 kgf)

Enables testing from very light loads up to heavy loads, covering many Rockwell, Brinell, HVT/HBT scales. Great flexibility for different materials or hardness ranges.

High Precision Depth Measurement (0.1 µm)

Optical depth measurement allows detecting very small indentation depths with high accuracy, ensuring consistent, repeatable readings.

Multiple Scales Supported

Rockwell & Superficial Rockwell; Brinell (for RSB model); HVT and HBT; plastic scales (ISO 2039/1 & 2). That means one machine handles many hardness testing needs.

Closed-Loop Load Cell System

Ensures that applied force is precise and feedback controlled, reducing error, improving repeatability and compliance with standards.

Fast Cycle Time & Ergonomics

Full test cycle can be done in about 13 seconds (with dwell time 10 seconds). Optional motorized spindle to move workpiece helps reduce operator effort.

Overview

Specification	Detail
Product	Innovatest Verzus 710RS(B) Rockwell/Brinell Hardness Tester
Supported Scales	Rockwell; Superficial Rockwell; Brinell (RSB model); HVT & HBT; Plastic scales per ISO 2039/1 & 2
Test Force Range	1 kgf up to 250 kgf (Brinell for RSB), Rockwell preloads 3 & 10 kgf; main loads 15, 30, 45, 60, 100, 150 kgf
Test Cycle Time	13 seconds for complete cycle (preload, main load, dwell time 10 seconds)
Depth Resolution	0.1 micron via optical measurement
Display & Control	6.5-inch industrial HD touch screen; Windows embedded controller (IMPRESSIONS software) with SSD storage; keyboard & mouse available; reports, CSV export, etc.
Workpiece Accommodation	Height ~300 mm; horizontal clearance 200 mm from the indenter centreline for workpieces; workpiece weight up to 100 kg in some configurations
Dimensions & Weight	Approx. 290 × 592 × 895 mm (W × D × H); weight 91 kg
Power Supply	100-240 VAC, single phase, 50/60 Hz
Optional Features	Motorized spindle (for lifting workpiece), Brinell Indent Optical Scanner (BIOS) for automatic Brinell indent measurement, a variety of anvils and tables, software extras such as curve/convex correction, Go/No-Go fixtures, multiple connectivity options (USB, LAN, WLAN)

Seamless Digital Integration

Compatible with C-Mount adapters (Relay Lens or Direct Lens), enabling direct connection to cameras and monitors for digital image display and measurement.
